Bus station

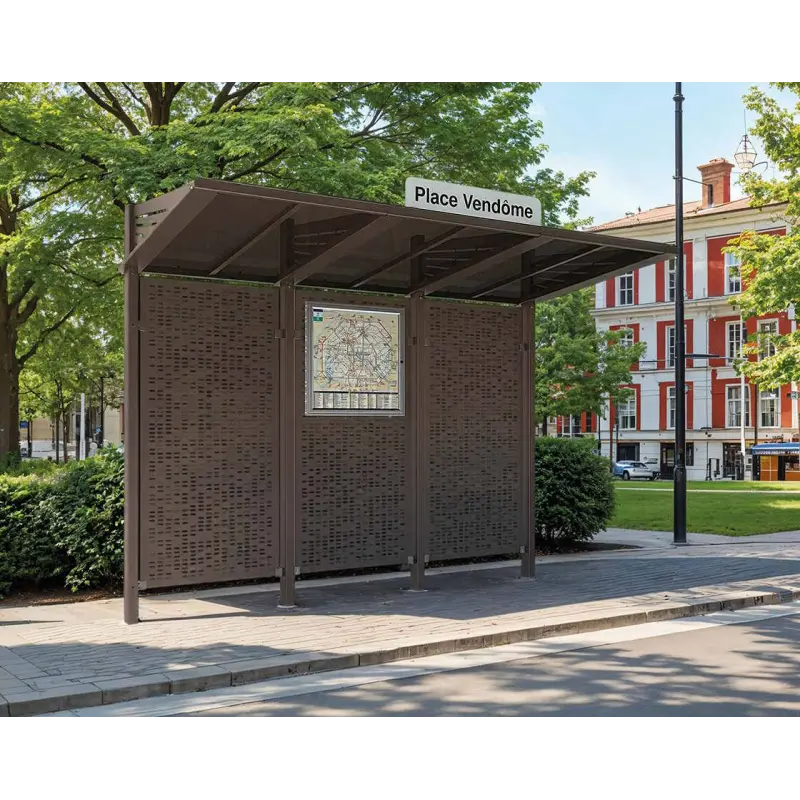

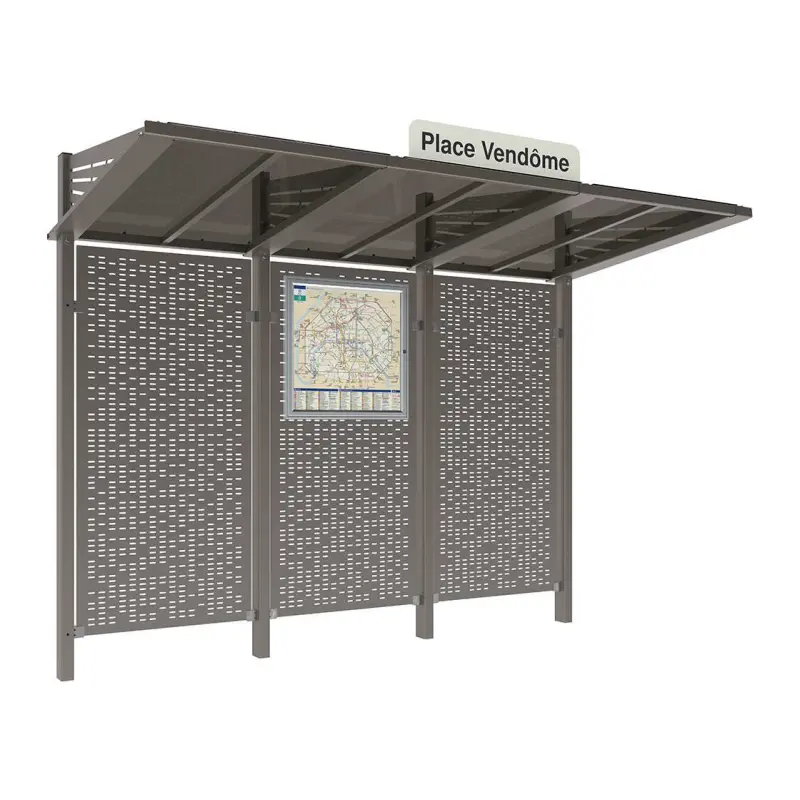

CONVIVIALE® bus shelters with steel cladding

With its elegant and highly modular design, the Conviviale® bus shelter is a perfect fit for any location and allows for compliance with accessibility of public streets.

  • CONVIVIALE® bus shelters with steel cladding
  • CONVIVIALE® bus shelters with steel cladding
  • CONVIVIALE® bus shelters with steel cladding
  • CONVIVIALE® bus shelters with steel cladding
  • CONVIVIALE® bus shelters with steel cladding
  • CONVIVIALE® bus shelters with steel cladding

Technical features

Length of one unit: 3000 mm.

Total depth: 1500 mm.

Extension with intermediate module: 1000 mm.

Square posts: steel tubes 100 x 60 mm.

Under roof height: 2200 mm.

Roof: tinted UV-resistant 6 mm PMMA glazing.

Roof frame: 40 x 40 mm steel tubes with rain gutter.

Beams: 5 mm gauge steel sheet.

Rear and side cladding: 8 mm Securit® safety glass or perforated steel.

Cladding attachments: pinch-grip system made from Zamak alloy with brushed finish.

Bus stop sign: 160 mm high x 900 mm wide, galvanised steel lacquered in RAL 9006.

Timetable display case: 750 x 750 x 30 mm in anodised aluminium.

Advertising space: light box (1710 mm x 1160 mm display area) or “2000” display case (1710 mm x 1200 mm display area).

Finish: galvanised and painted in our colours.

Installation: concreted directly into ground.
