Railings

Jersey railing

A segregation or protective solution for school and university sites or to control the flow of pedestrian traffic.

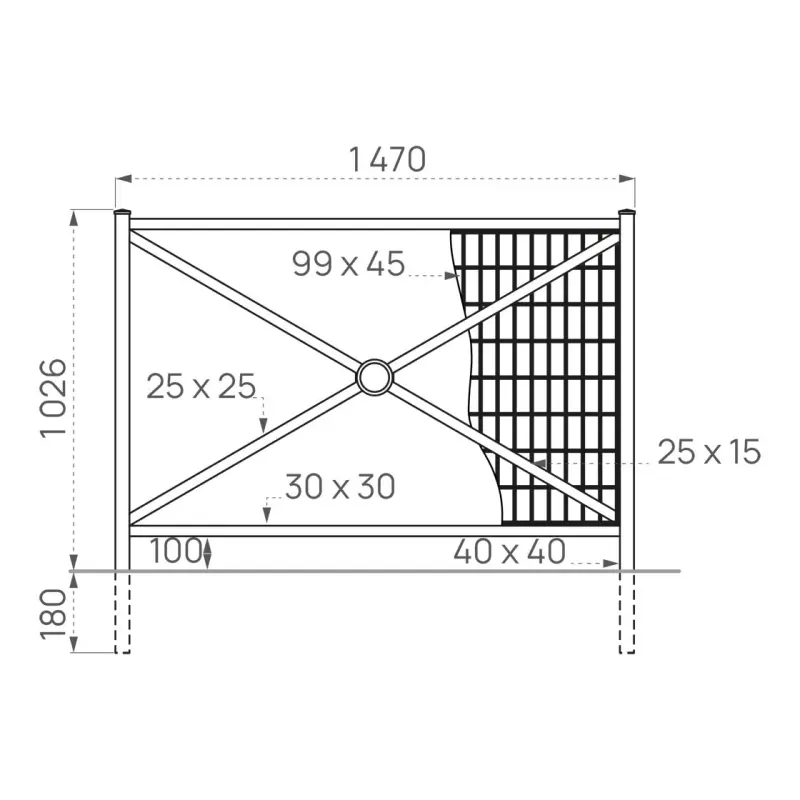

Technical features

Length
1470 mm
Overall height
1206 mm
Height above ground
1026 mm
Posts
steel tubes 40 x 40 mm, welded post cap
Horizontal rails
30 x 30 mm
Ground clearance
100 mm
Two frames
simple cross or mesh (wire ø 4 mm)
Finish
zinc primed and painted in our colours
Available colours
RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
Installation
concreted directly into the ground, depth 180 mm. Square concrete blocks 250 x 250 mm and 300 mm high
Options
installation on base plates - Serrubloc® removable kit for city railings consists of two sockets, one of which can be locked with a triangle key. Self-draining to be installed at the bottom of the sockets. Ref. 203402

Technical files

To download the files, please log in to your Distributor area…

Description

At Procity, we are dedicated to providing top-notch urban furniture solutions, meticulously designed to meet the needs of public spaces and commercial areas. Our Jersey Railing embodies our commitment to quality, durability, and aesthetic appeal. Perfect for directing pedestrian traffic and enhancing safety, it integrates seamlessly into various environments.


Technical Specifications of the Jersey Railing


The Jersey Railing is engineered with precision, offering exceptional performance and longevity. It measures 1470 mm in length and stands 1026 mm high above the ground, providing a robust barrier for public and commercial spaces. The railing is supported by sturdy steel tubes (40 x 40 mm), ensuring a durable and stable installation.


We offer two frame styles for the Jersey Railing: a simple cross or a mesh design, allowing you to select the most suitable option for your specific needs. Each variant is treated with a zinc primer and painted in your choice of our standard colours, ensuring both protection against the elements and a visually appealing finish.


Installation is straightforward, with the Jersey Railing designed to be concreted directly into the ground. For added convenience, base plates are available as an optional feature. Additionally, we offer the innovative Lockblock® socket system, which allows for easy removal and repositioning of the railings, enhancing versatility in dynamic urban spaces.


Applications and Benefits


The Jersey Railing by Procity is ideal for demarcating pedestrian paths, ensuring crowd control, and enhancing safety in a variety of environments. Whether installed around school and university campuses, parks, or commercial premises, it serves as a protective solution that meets stringent safety standards.


Our commitment to quality extends beyond the product itself. We employ rigorous quality control measures throughout the manufacturing process to ensure that each Jersey Railing meets our high standards of durability, functionality, and aesthetic integrity. This dedication to excellence is a hallmark of Procity, ensuring that our products deliver reliable performance and long-term value.


Procity: A Legacy of Quality and Innovation


Since our inception in 1983, Procity has been at the forefront of urban furniture manufacturing. Our designers and engineers are experts in creating functional, comfortable, and durable products that enhance the urban landscape. We proudly produce all our furniture in France, adhering to the highest standards of quality and sustainability.


At Procity, customer satisfaction drives everything we do. We value close collaboration with our clients, providing tailored solutions and supporting them throughout the project lifecycle. Our extensive range of urban furniture, combined with our customisation capabilities, ensures that we can meet the diverse needs of any urban or corporate project.


Contact us today to learn more about the Jersey Railing and explore how Procity can support your urban furniture needs with products that promise both form and function. Together, let's create safer, more organised, and aesthetically pleasing public spaces.


```
