75 mm thick aluminium frame, 220 mm high, right-angle corners. Double-sided white lacquered galvanised steel surface. Painted in notice board colour range. Supplied with 2 mounting brackets and bolts
Installation
on posts. Kit of 2 initial 80 x 125 mm oblong aluminium posts (anodised or painted) with black steel caps. 4 cast aluminium connectors included. Adjustable height. Direct concreting (500 mm depth) or on base plates. Additional 1-post kit available for linking multiple cases
Options
LED lighting kit (120 Lumens/watt, IP20 LEDs, IP67 transformer, 12.5W/m, installation by electrician required)
Technical files
To download the files, please log in to your Distributor area…
Description
At Procity, we take pride in offering innovative and high-quality urban furniture solutions. Our 1000 Outdoor Notice Board on Quatro Posts exemplifies our commitment to functional and durable design. Part of our comprehensive range for displaying information, this product is designed to meet the specific needs of both public and private entities.
Product Features
The 1000 Outdoor Notice Board on Quatro Posts features a single-sided display, offering a versatile solution for various outdoor information display needs. The display area accommodates from 8 to 30 A4 sheets, ensuring ample space for essential notices and information.
For glazing options, clients can choose between 4 mm Plexichoc® or safety glass, both providing superior protection against external elements. The notice board is accessible through a range of opening systems – side opening reversible door, dual door, or a raising door supported by gas struts – to suit different operational preferences.
Security and Durability
We understand the importance of security in public installations. Hence, the 1000 Outdoor Notice Board is equipped with a tamper-proof safety lock, supplied with 2 keys. Models with a 1350 mm high side opening door and all models with raising doors come with 2 locks for enhanced security. Additionally, the board features an elastomer seal for optimal waterproofing, ensuring the preservation of displayed content in all weather conditions.
The interior of the notice board is finished with a galvanized steel sheet, lacquered white on the interior back panel, promoting visibility and readability. The exterior back panel is finished in light grey. The frame, made from 75 mm aluminum with right-angle corners, is available in silver anodised aluminum or painted from our range of notice board colours.
Installation and Accessories
Procity makes installation straightforward with options to mount the notice board onto walls or posts. Our Quatro post kit includes two oblong posts with an 80 x 125 mm cross-section, available in silver anodised aluminum or with a black lacquered steel top. The kit facilitates adjustable notice board height and is designed for easy assembly with dove-tailed cast aluminum clamps, eliminating the need for drilling. Installation can be performed by concreting directly into the ground or using base plates, as mounting brackets are included.
For additional stability in areas with substantial wind exposure, an additional Quatro post kit with one oblong post and four connectors is available. We strongly recommend concreting into the ground in such situations for reinforced durability.
The surface of our notice boards features a white lacquered galvanized steel sheet, complementing the robustness of the frame. Procity also includes magnets with each notice board (1 per A4, up to a limit of 20 per display case), facilitating easy attachment and arrangement of notices.
Optional Enhancements
For those requiring enhanced visibility, we offer an LED lighting kit as an optional accessory. This kit includes high-efficiency white light LEDs, boasting a brightness of 120 lumens per watt, with a life expectancy of 75,000 hours and an energy efficiency of 12.5 watts per linear meter. Please note, LED ribbons and transformers are not factory-fitted and should be installed by a qualified electrician to comply with safety regulations.
Procity Commitment
Procity is a leading name in urban furniture, with a heritage of excellence and innovation in design and manufacturing. All our products, including the 1000 Outdoor Notice Board on Quatro Posts, are crafted to the highest standards, ensuring reliable performance and longevity. Our solutions are designed with the complexities of urban environments in mind, offering robustness, functionality, and aesthetic appeal.
By choosing Procity, you are investing in a product that is not only built to withstand the elements but also to provide clear, secure, and accessible information display options for any outdoor setting. Explore our extensive range of urban furniture and discover the perfect solutions tailored to your needs.
```

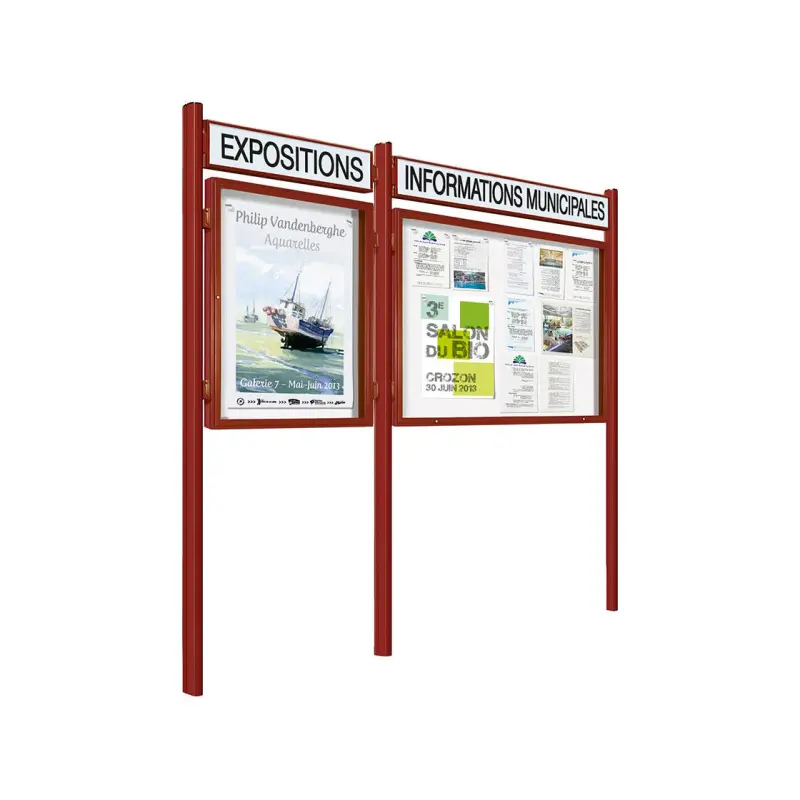

"1000" outdoor notice board on quatro posts in stock
