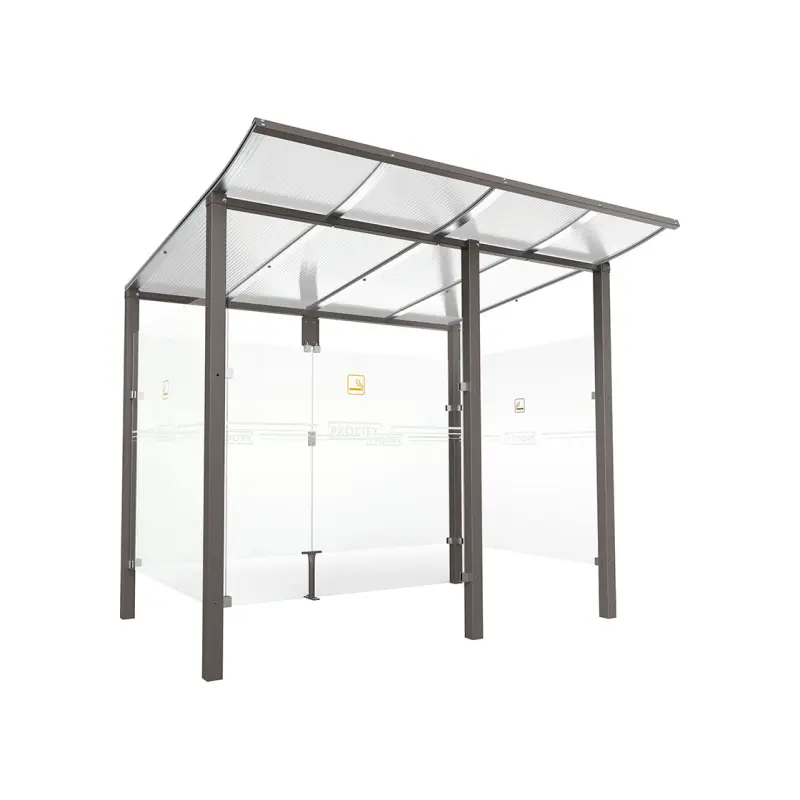

Modulo smoking and vaping shelter
Modulo smoking and vaping shelter protects users from the weather. Thanks to its simple and elegant style, this smoking shelter will fit perfectly into any type of environment. The shelter can be adapted to different needs thanks to the two lengths offered: 2500 or 5000 mm. As an option, it is possible to add a sit-stand which will improve the experience of users as well as stickers of the 'cigarette' symbol sold in pairs which will make it easy to identify the usefulness of this shelter. Don't forget to add an ashtray to protect the environment.
Base plate version available in the third quarter of 2024.
Two lengths
2500 or 5000 mm.
Depth: 2000 or 3400 mm.
Under roof height
1980 mm min., 2250 mm max.
Square posts
70 x 70 mm steel tubes.
Roof
anodised aluminum profiles with cross members in 40 x 40 mm steel tube, and 10 mm anti-UV-treated cellular polycarbonate panels.
Front, side and back panels
5 mm safety glass with safety markings.
Panel attachment
pinch-grip system for easy replacement in case of vandalism.
Finish
galvanised and painted in our RAL colours.
Installation
concreted directly into ground.
To download the data sheet, please log in to your dealer area. If you do not have an account, please contact us using our contact form
