Outdoor notice boards & poster display cases

Technical features


NOTICE BOARD

Format: single sided or double sided on raising doors depending on dimensions.

Display area: from 9 to 30 A4.

Profile depth: 75 mm with rounded cast aluminium corners

Glazing: vandal-resistant 4 mm Plexichoc® or 4 mm tempered safety glass.

Opening method: reversible side opening, dual-door or raising door.

Raising doors: suspended on gas struts for easy opening and support.

Locking: tamperproof safety lock with supplied 2 keys, two locks on H 1350 mm and raising door models.

Waterproofing: elastomer seal.

Back plate finish: galvanised steel back in a white lacquered finish for use with magnets. External back finished in RAL 7032 unless otherwise specified.

Frame finish: silver anodised aluminium or painted in our Vitincom® colour offering.

Installation: post mounting.

Supplied with Vitincom® magnets (1 per A4).

Post kits:

Quatro post kit: 2 oblong 80 x 125 mm dove-tailed posts either silver anodised or painted with black lacquered steel top caps. Post kit contains 4 cast aluminium dove-tailed clamps for easy installation with no drilling required. Notice board adjustable in height.

Installation: concrete directly in the ground or on base plates. *

Quatro plus post: an oblong 80 x 125 mm dove-tailed posts either silver anodised or painted, delivered with contains 4 cast aluminium dove-tailed clamps.

Installation: concrete directly in the ground or on base plates. *

*If the product is to be likely to be exposed to strong wings, we strongly recommend post kits to be concreted directly in the ground.

Optional header boards:

Frame: 75mm aluminium profile, rounded cast aluminium corners matching the board.
Signage surface: galvanised steel lacquered in white.

Height: 220 mm.
Installation: supplied with 2 cast aluminium dove-tailed clamps for easy installation with no drilling required.

Other options:

LED kit (supplied for self-assembly) *

Additional magnets.

*LED ribbons and transformers are not factory fitted and require installation by a qualified electrician to comply with applicable safety regulations.




  • Download the specification sheet >

  • Assembly & installation instructions 092-V6 >

  • Assembly & installation instructions 092-V6 >

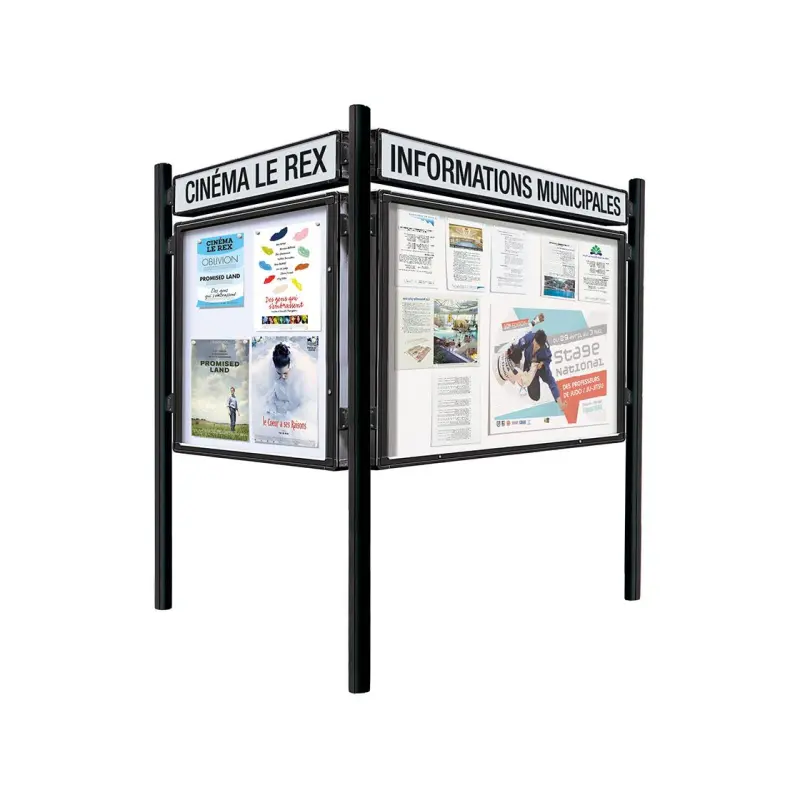

"2000" outdoor notice board on quatro posts

The top of our notice board range. An elegant contemporary design featuring radius corners, mounted on quatro posts for multiple installation options.
RAL 5010
RAL 9005
RAL 3004
RAL 6005
RAL 8017
Anodised

Product code : 410070+416401
Weight : KG
