Bicycle shelters

Technical features


Dimensions:5000 mm wide x 3010 mm high x 4160 mm deep.
Structure: Galavnised steel tubes 80 x 80 mm.
Roof: 50 x 30 mm aluminium crossbars and rainwater gutters, anti-UV-treated 6 mm cellular polycarbonate dome.
Finish: Painted in our standard RAL colours.
Extension: Extension module 2500 mm wide.

Installation: On base plates, expansion anchors supplied.
LED Lighting (for "Integrated LED lighting" version)
Factory fitted LED lighting strips in the crossbeams, (power supply of 220 V required), electrical installation to be carried out by a professional. Circuit breaker not included.

Optional:
Rear and side cladding: Aluminium profile frame and anti-UV-treated 10 mm cellular polycarbonate.


  • Download the specification sheet >

  • Assembly & installation instruction 440-V4 >

  • Assembly & installation instruction 441-V4 >

  • Assembly & installation instructions 443-V1 >

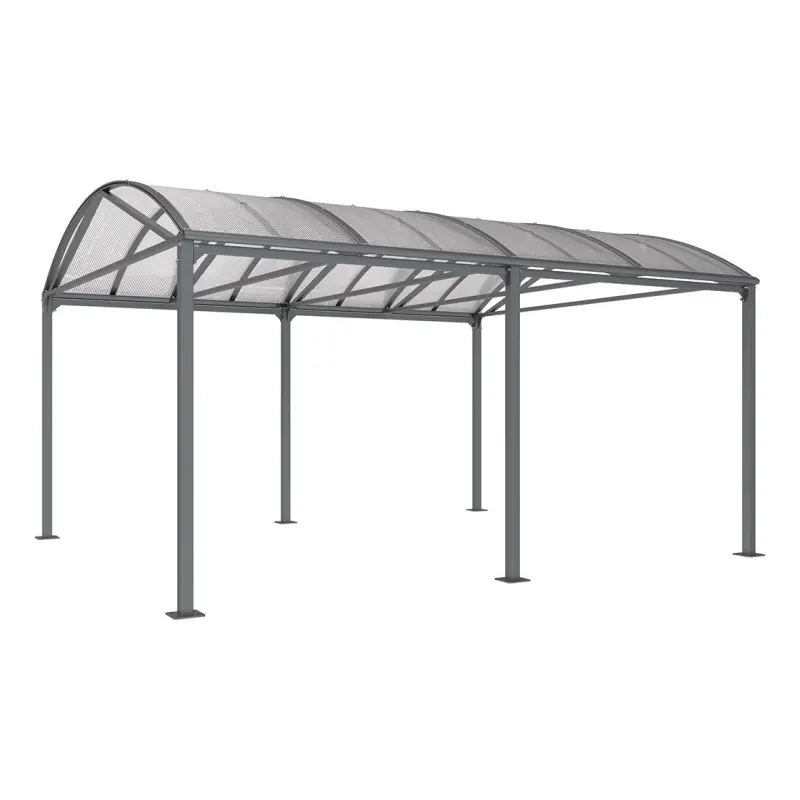

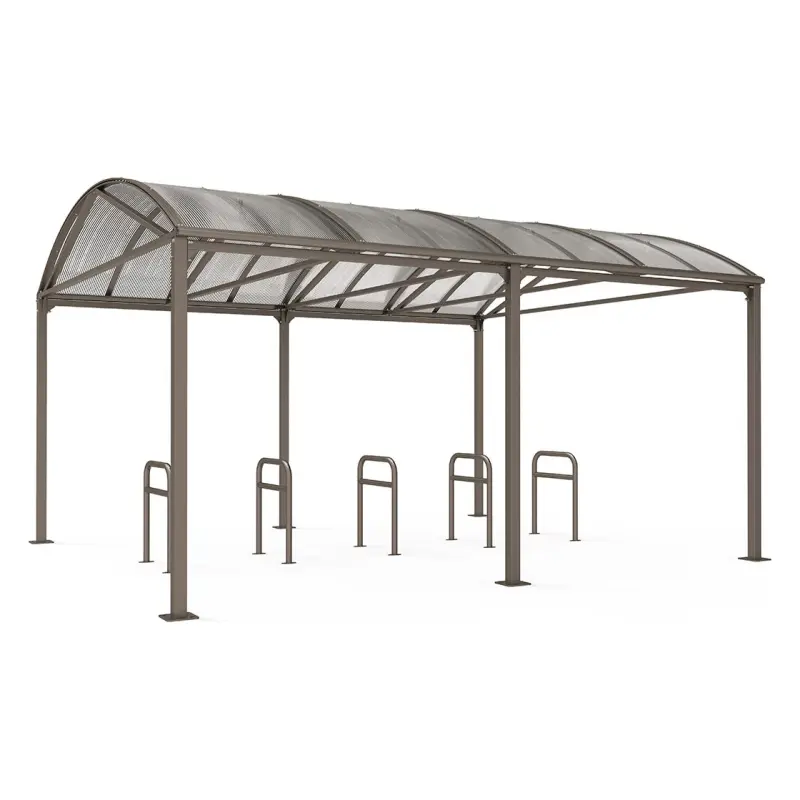

Voute XXL multi-functional shelter system

This naturally oversized modular shelter system, allow this shelter to be used as a passenger shelter, a bike shelter, covered walkway or multi-use shelter. The extensions allow the shelter to be extended without limit. Rear and side cladding are equally fully modular to protect for bad weather.

Colour

Procity Grey
RAL 9010
RAL 5010
RAL 3020
RAL 9005
RAL 7044
RAL 3004
RAL 6005
RAL 8017
Corten effect

Style


Product code : 529070
Weight : KG
