Bus shelters

Technical features


Two lengths: 2500 or 5000 mm.

Total depth: 1600 mm.

Round posts: Ø 76 mm x 3 mm aluminium tubes on base plates.

Stainless steel decorative top cap.

Height under the roof: min 2250, max 2500 mm.

Canopy: 6 mm anti-UV cellular polycarbonate.

Roof structure : two aluminium 40 x 60 mm crossbeams, two aluminium profile rain water gutters, and curved aluminium profile arcs.

Back and side cladding: 8 mm Securit® toughened safety glass.

Cladding attachments: pinch-grip system made from die-cast aluminium.

Waterproof timetable case: anodised aluminium, 30 mm in depth 4 x A4 (external dimensions 750 x 550 mm).

Advertising display: light box (display dimentions 1710 x 1160 mm) or "2000" poster display case (display dimentions 1710 x 1200 mm).

Finish : painted in on our standard RAL colours.

Installation: on base plates.

Optional: LED lighting.Perch seats and benches available - see associated products.


See all products in the Stainless steel collection
  • Download the specification sheet >

  • ASSEMBLY & INSTALLATION INSTRUCTIONS.rar >

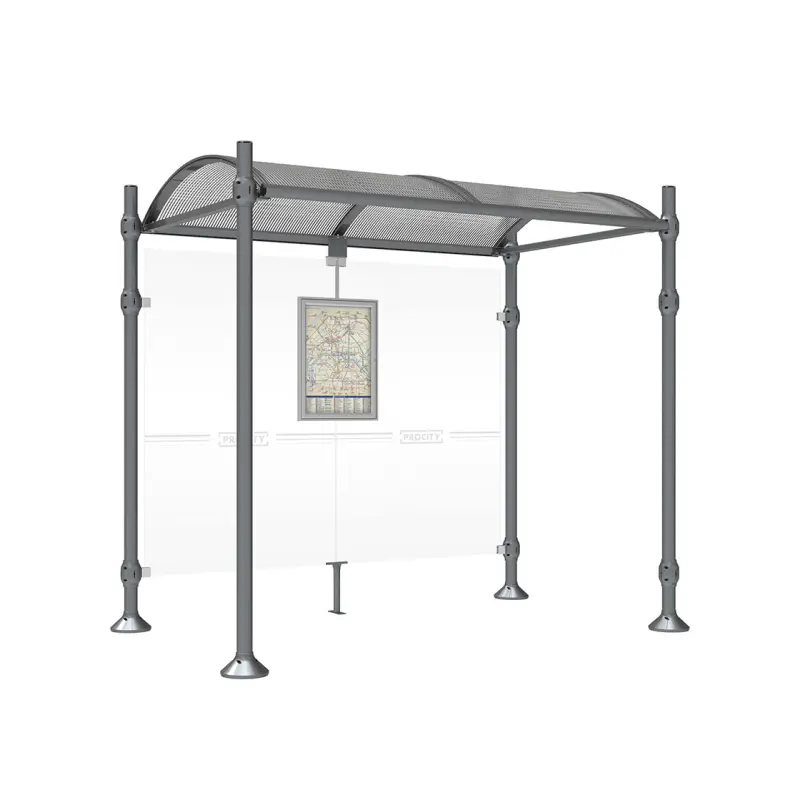

Province Inox bus shelter

The Province bus shelter presents a strong visual identity thanks to its distinctive collars and base covers along with its choice of five top caps. It co-ordinates perfectly with street furniture from the Province collection.
Province bus shelters are available in standard version 2500 mm or in long version 5000 mm.
Every bus shelter is delivered with cladding and a waterproof timetable case.

Colour

Procity Grey
RAL 9010
RAL 5010
RAL 3020
RAL 9005
RAL 7044
RAL 3004
RAL 6005
RAL 8017
Corten effect

Lengths

Style


Product code : 529224
Weight : KG
