Secure shelters

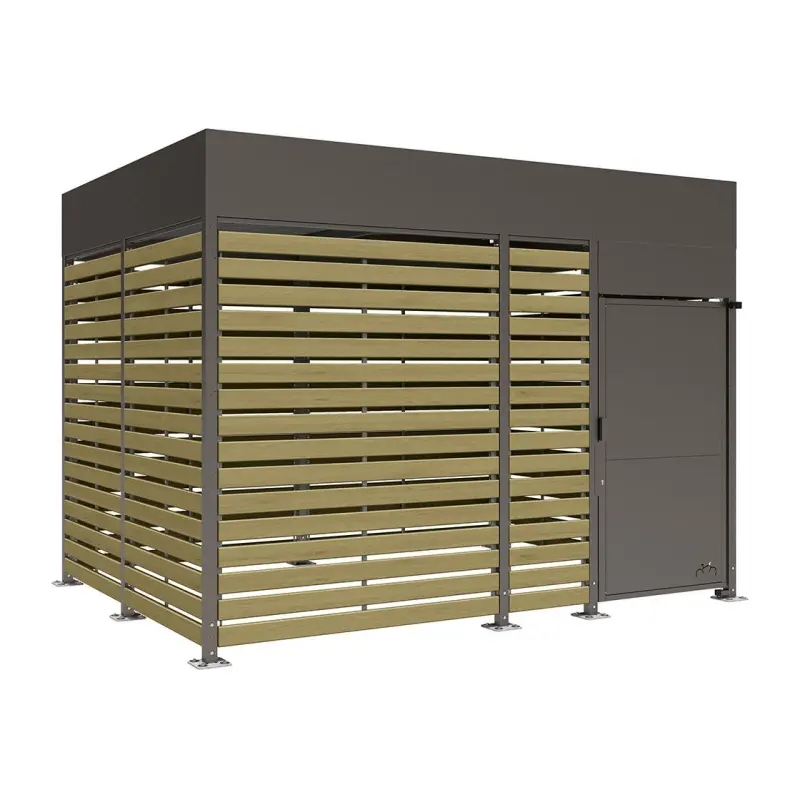

Wood Horizon secure bike shelter
Combining elegance and modularity, the Horizon bicycle shelter is the ideal solution for all your development projects. Create a customised bicycle space by adding as many modules as you need — with no limit on length! Designed to accommodate single or double-deck racks, it optimises every square metre while offering complete protection to users. Stylish, scalable and secure, Horizon enhances your cycling spaces and reflects your commitment to sustainable mobility.
Technical features
Two lengths
4023 or 5998 mm
Dimensions
height 3000 to 3150 mm x depth 3066 mm
Parking capacity
up to 8 bicycles for a 4023 mm wide module and 12 for a 5998 mm wide module (depending on the bike rack or stand chosen)
Structure
70 x 70 mm galvanised steel posts
Roof
90 x 50 mm steel tube cross-members, 3 mm thick and 1.25 mm thick sheet metal panels
Cladding
36 mm thick resinous wood
Single door
sheet metal. Door can be opened from the inside without a key. Door held in open and closed positions using a gas strut
Locking system
European key lock, connected lock (optional) or mechanical keypad (consult us)
Finish
painted steel on galvanised according to our colours and raw resinous wood
Available colours
RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
Installation
on galvanised base plates, height-adjustable feet (150 mm max), expansion bolts supplied
Options
connected lock; canopy; bike rack; "BIKE PARK" sticker; LED lighting; "bicycle" symbol signage
