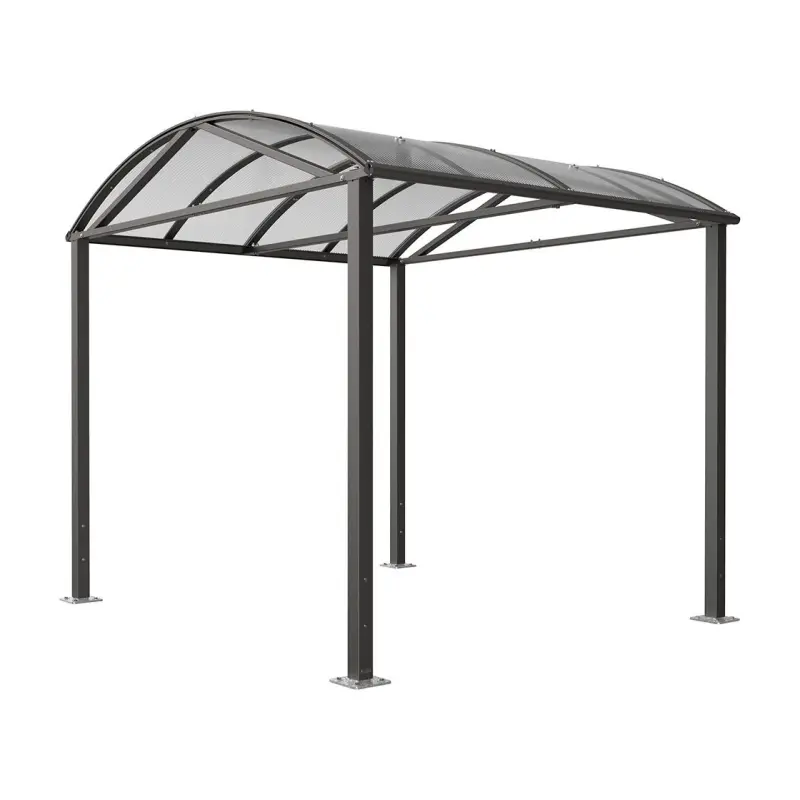

Voute "L" covered walkway

The “Large” Voute covered walkway offers optimal protection for pedestrians thanks to its width close to 3 meters.

  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway
  • Voute "L" covered walkway-1
  • Voute "L" covered walkway-2
  • Voute "L" covered walkway-3
  • Voute "L" covered walkway-4
  • Voute "L" covered walkway-5
  • Voute "L" covered walkway-6
  • Voute "L" covered walkway-7
  • Voute "L" covered walkway-8
  • Voute "L" covered walkway-9
  • Voute "L" covered walkway-10
  • Voute "L" covered walkway-11
  • Voute "L" covered walkway-12
  • Voute "L" covered walkway-13
  • Voute "L" covered walkway-14
  • Voute "L" covered walkway-15
  • Voute "L" covered walkway-16
  • Voute "L" covered walkway-17
  • Voute "L" covered walkway-18

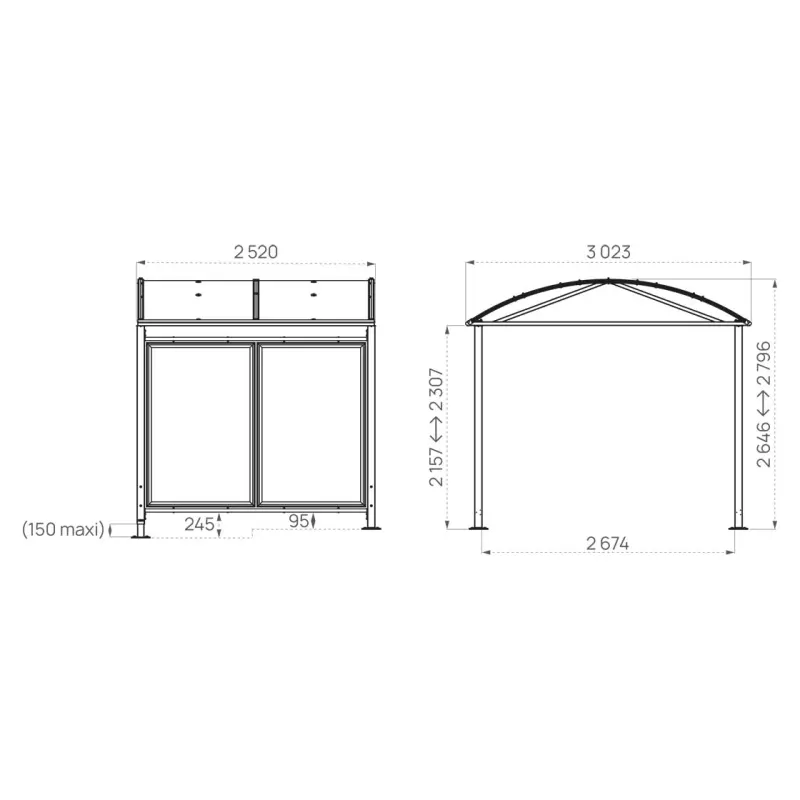

Dimensions: 2500 mm long x 2796 mm high x 2830 mm deep

Structure: galvanised steel tubes 80 x 80 mm

Roof: 60 x 40 mm steel crossbars and aluminium rain gutters, painted in our colours, anti-UV-treated 10 mm cellular polycarbonate dome

Finish: painted in our colours

Extension: extension module, 2520 mm wide

Installation: on galvanised base plates, height adjustable feet, expansion bolts included

Options
side cladding, LED lighting
