Universal boom barrier with gas cylinder system

The gas cylinder system allows easy opening and closing. Without any protruding counterweight, it can be positioned close to a wall. In addition, the pendulum support arm grips the ground and ensures stability.


  • Universal boom barrier with gas cylinder system
  • Universal boom barrier with gas cylinder system
  • Universal boom barrier with gas cylinder system
  • Universal boom barrier with gas cylinder system
  • Universal boom barrier with gas cylinder system-1
  • Universal boom barrier with gas cylinder system-2
  • Universal boom barrier with gas cylinder system-3
  • Universal boom barrier with gas cylinder system

Technical features

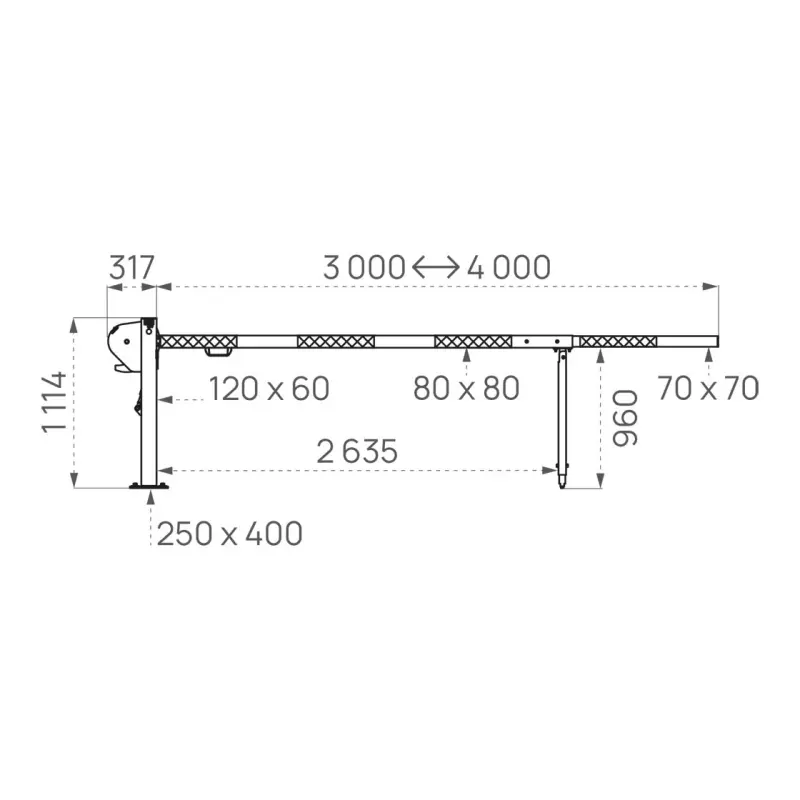

Structure: 80 x 80 mm aluminium tube extended by a 70 x 70 mm aluminium tube.

Width: adjusts from 3000 to 4000 mm (distance between axis of rotation and the tip of the barrier).

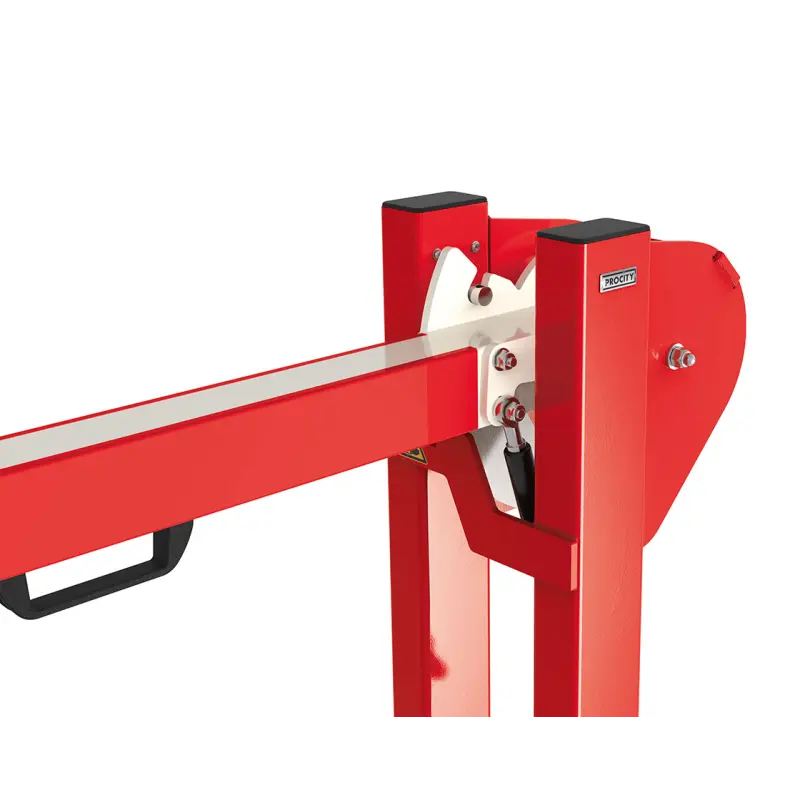

Operating mechanism: integrated gas cylinder to compensate the weight of the boom and facilitate its use. Rotation on a stainless-steel axel. Automatic locking.

Locking options: key padlock or triangle key padlock . Height adjustable pendulum support arm (+/-100 mm).

Finish: lacquered white steel with red reflective strips. Pendulum support arm finished in RAL 3020.

Installation: on base plates with stencil and ground hooks included.
