Smoking or vaping shelters

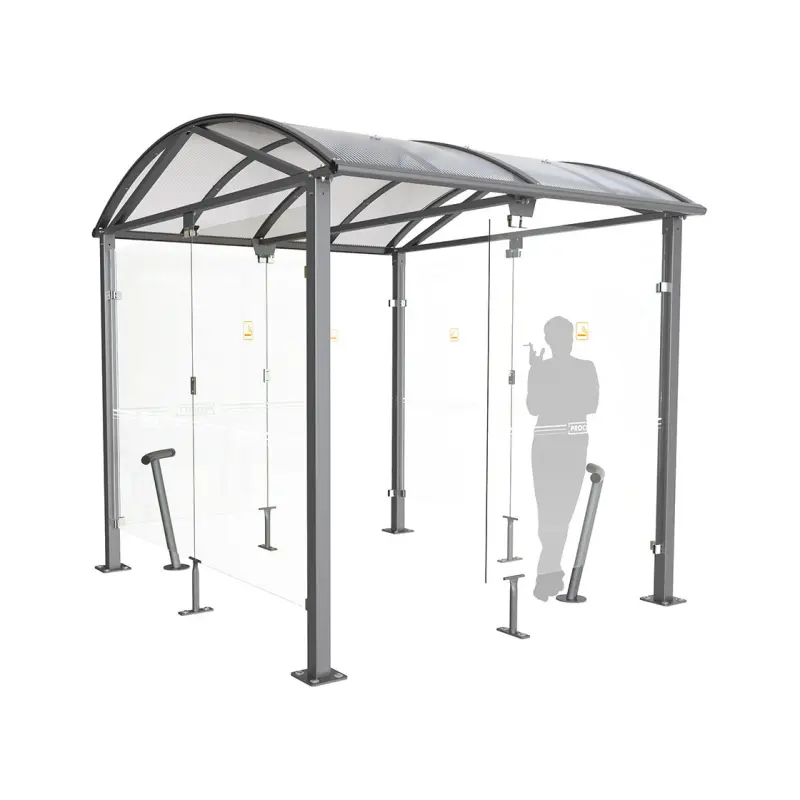

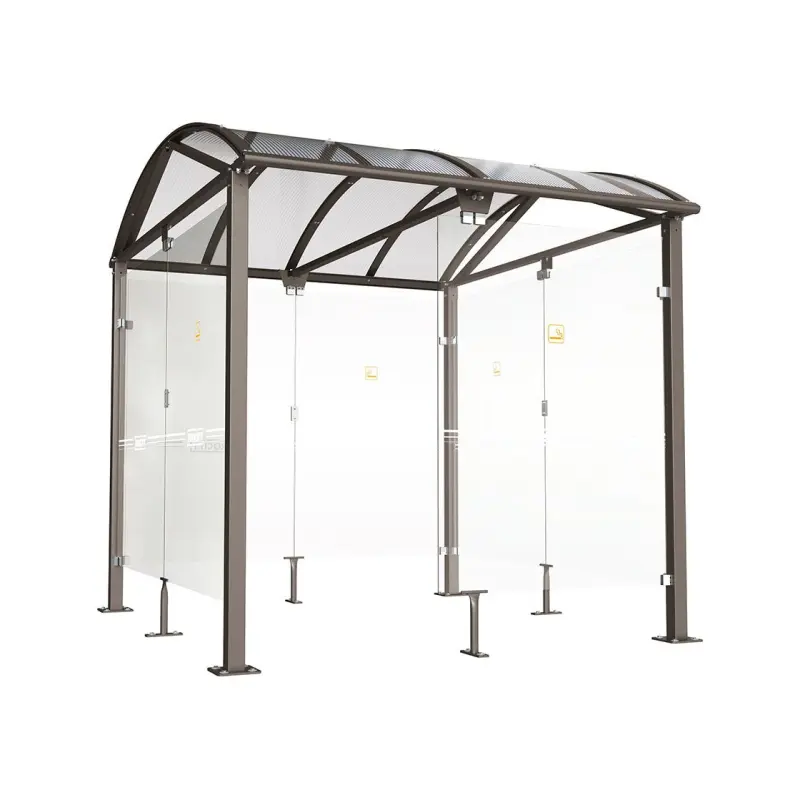

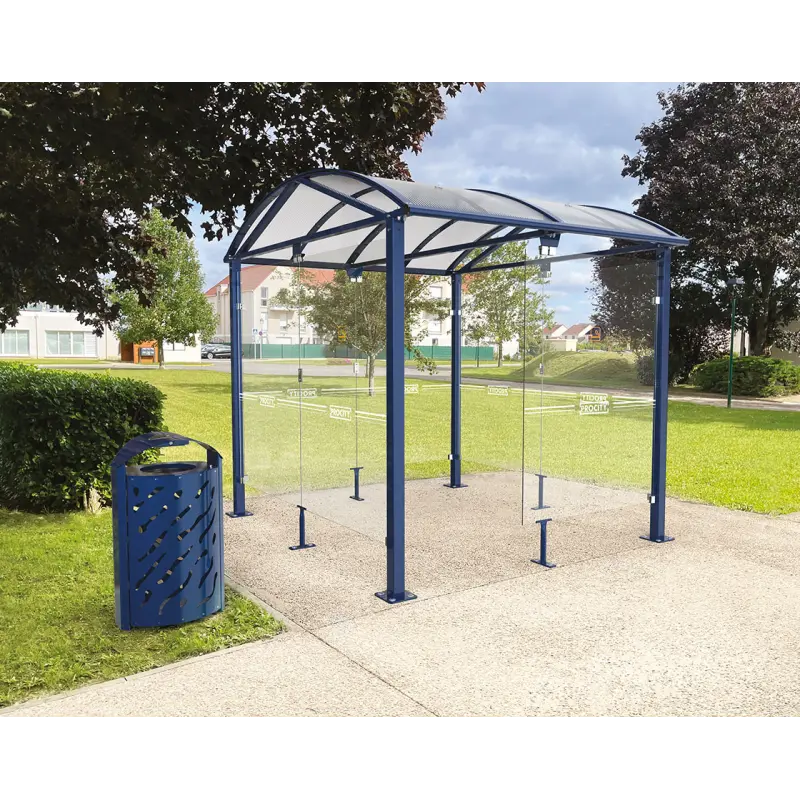

Voute "L" smoking and vaping shelter

The Voute "wide" smoking shelter has a depth close to 3 meters thus allowing to accommodate more smokers while respecting personal space.

Technical features

Two lengths
2520 or 5020 mm (entrance width 982 mm)
Depth
3023 mm
Height
2752 mm
Square posts
80 x 80 mm steel tubes on base plates
Roof frame
40 x 60 mm steel-tube crossbars and aluminium-profile gutters. Curved aluminium-profile arches
Roof
10 mm thick translucent cellular polycarbonate dome, anti-UV treated
Panels
8 mm safety glass with safety signage to be applied
Panel attachment
pinch-grip system for easy replacement in case of vandalism
Finish
galvanised and painted in our colours
Available colours
RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
Installation
on 200 x 200 mm base plates, 10 mm thick, expansion bolts supplied. Square concrete blocks 400 x 400 mm, 400 mm high and 350 x 350 mm, 350 mm high for the panel support posts
Options
220 V LED lighting ref. 509041; Parasol lean-to seat ref. 208510

Technical files

To download the files, please log in to your Distributor area…

Description

Voute-L: The Comprehensive Smoking and Vaping Shelter



The Voute-L Smoking and Vaping Shelter is a state-of-the-art solution from Procity, designed to offer a designated area for smokers and vapers. This shelter combines functionality with modern design, aligning with Procity's ethos of providing high-quality urban furniture that meets the demands of contemporary public spaces.



Design and Features of the Voute-L Shelter



Our shelter boasts a sleek and resilient structure, crafted to accommodate the needs of both smokers and vapers. The Voute-L is designed with consideration for user comfort and environmental protection, ensuring a pleasant and secure space for its occupants. The design of the Voute-L Shelter incorporates durable materials capable of withstanding the rigours of daily use and adverse weather conditions. With its robust construction, it serves as a long-lasting installation for any public or private property. Safety and compliance are at the forefront of the Voute-L's design. It adheres to all relevant regulations, providing a safe and legally compliant area for smoking and vaping. This compliance is vital for businesses and public facilities to maintain health and safety standards. Aesthetically, the Voute-L Shelter is crafted to blend seamlessly into various settings, from corporate environments to hospitality venues. Its neutral colour palette and contemporary styling ensure that it will complement rather than clash with surrounding architecture and landscapes.



Installation and Maintenance



Procity understands the importance of convenience, which is why the Voute-L Shelter is engineered for easy installation. It comes complete with all necessary fixtures, allowing for a hassle-free setup process. In terms of maintenance, the Voute-L is designed to be low upkeep. Its materials are selected for their longevity and ease of cleaning, ensuring that the shelter remains in pristine condition with minimal effort. Regular cleaning and occasional inspections are all that is required to maintain the shelter's appearance and functionality.



Conclusion



The Voute-L Smoking and Vaping Shelter is more than just a place for smokers and vapers. It is a thoughtful addition to any space, designed to respect non-smokers while providing a dedicated area for those who smoke or vape. With Procity's commitment to quality and design, the Voute-L is an investment in both functionality and the aesthetic value of any space it occupies.
