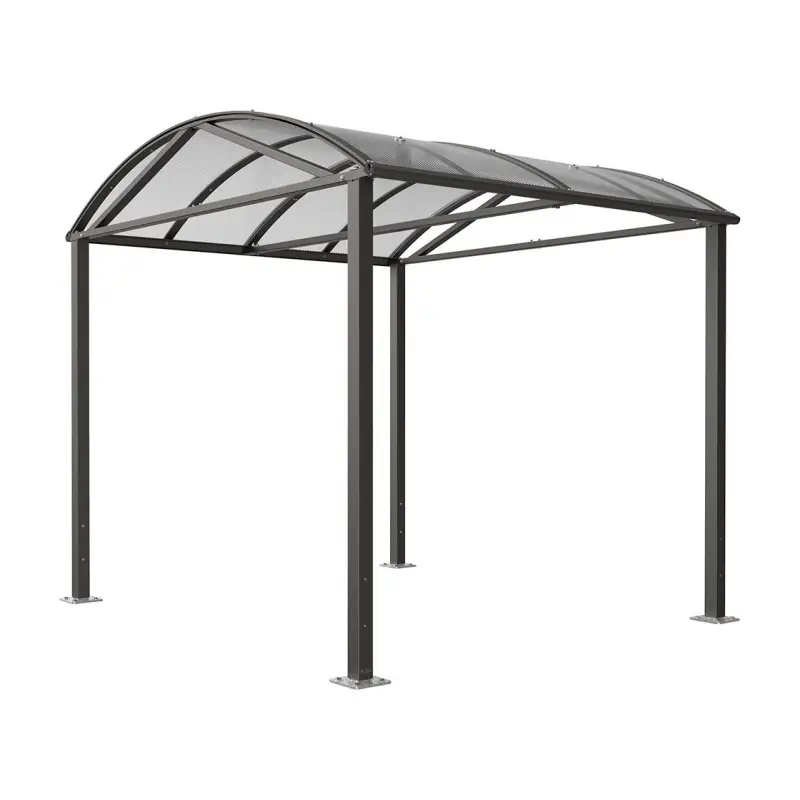

Voute "L" covered walkway
The “Large” Voute covered walkway offers optimal protection for pedestrians thanks to its width close to 3 meters.
Technical features
Dimensions
width 3023 x length 2520 x height 2646 to 2796 mm
Structure
80 x 80 mm galvanised steel posts
Roof
60 x 40 mm steel crossbars and aluminium longitudinal beams, 10 mm thick anti-UV-treated cellular polycarbonate dome. Curved aluminium profile arches

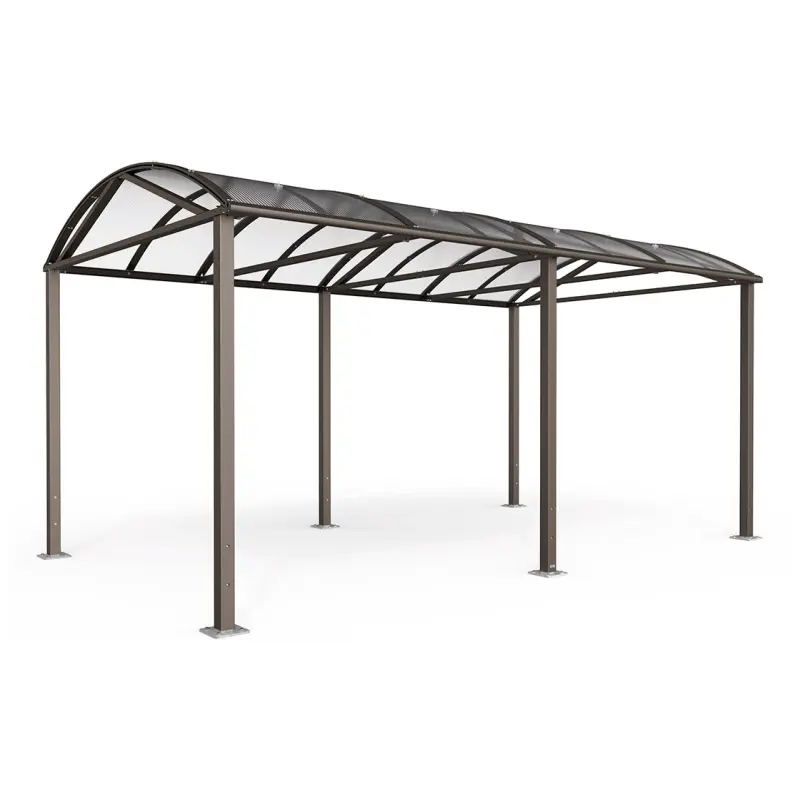

Extension
additional module, width 2520 mm
Finish
painted on galvanised steel in our colours
Available colours
RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
Installation
on galvanised base plates, height adjustable feet (max 150 mm), expansion bolts included. Square concrete blocks 400 x 400 mm and 400 mm high
Options
side cladding ref. 599814, LED lighting ref. 509041
