Height restrictors

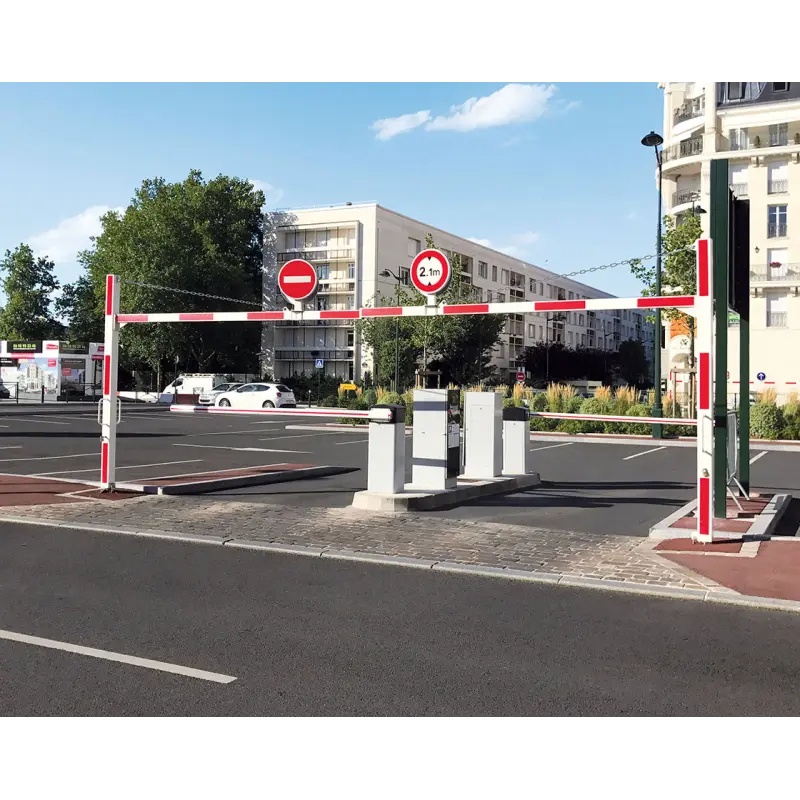

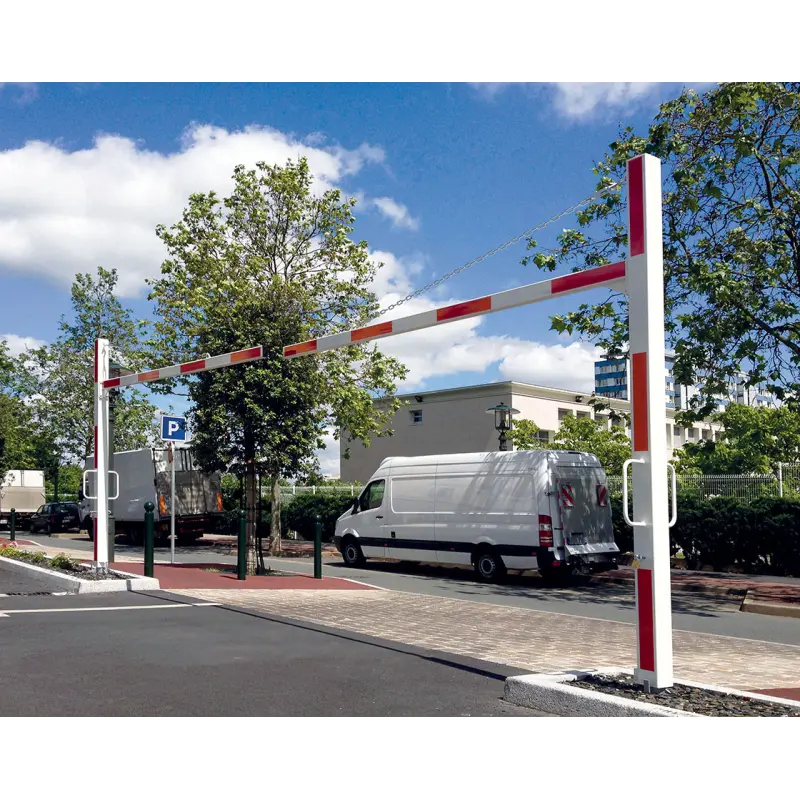

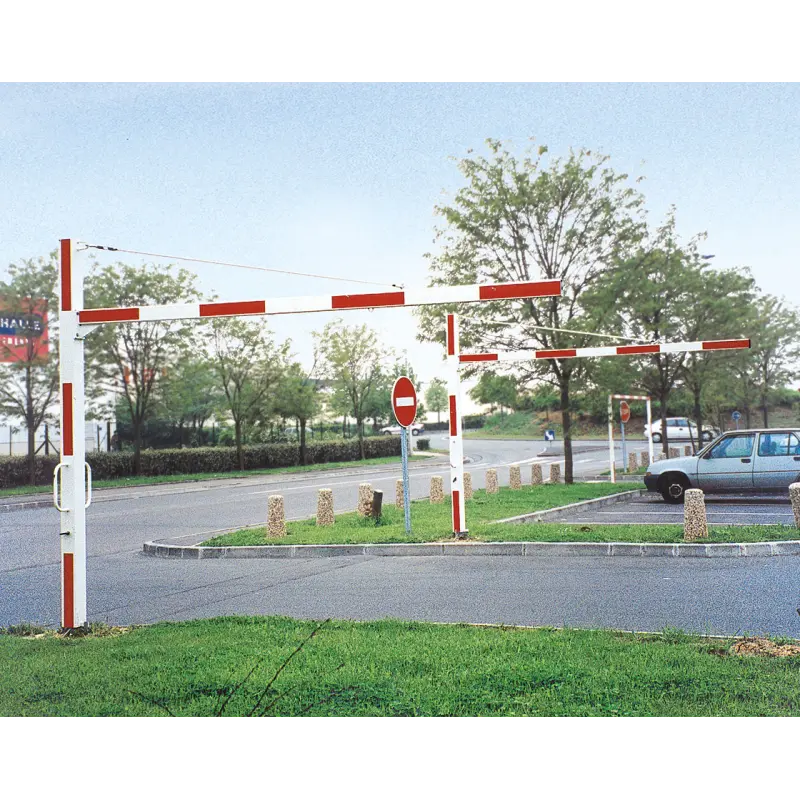

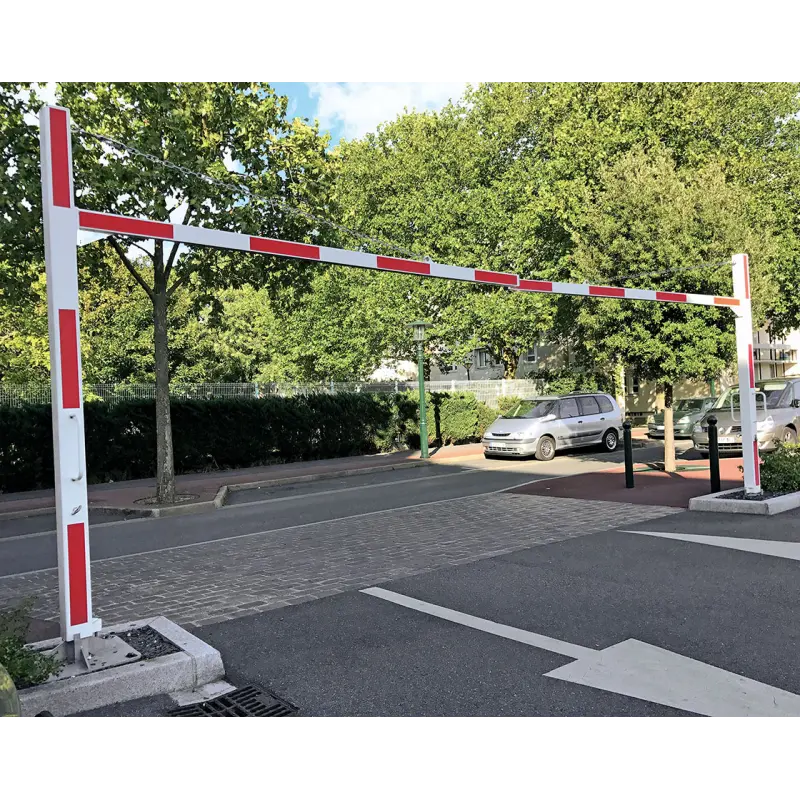

Universal Swivel Height Restrictor

Our selective swivel height restrictor lets you manage access to parking areas by lorries, caravans etc. Mounted on a cylindrical shaft with rotation handles and stops to hold the height restrictor in closed position or open position at a 90 degree angle. We offer a pre-installation kit separate from the height restrictor itself so that you can prepare your concrete surfaces in advance.

Technical features

Width
from 5000 to 12000 mm
Access height
from 1900 to 4000 mm under bar
Structure
steel tubes 120 x 120 and 80 x 80 mm, gantry equipped with single or double tension cable. The central crossbar (70 x 70 mm) slides between the two horizontal bars to adapt the width of the gantry to the installation site
Locking
by through pins. Pin locked with padlock provided. Cylindrical drum with rotation handles, locking stops and through pin to maintain in open or closed position at 90°
Finish
white lacquered steel over galvanised with red reflective strips, other colours (contact us)
Installation
on base plates 500 x 500 mm with ground hooks included in the installation kit. The independent installation kit allows you to prepare your concrete foundations in advance. Levelling with locknuts located under the base plates
Options
installation kits; fixing kit for sign ø 450 mm ref. 202321; height gauge rail ref. 202601; 11 mm triangle-key lock

Technical files

To download the files, please log in to your Distributor area…

Description

Universal Swivel Height Restrictor: The Practical Solution to Accessibility Control

Procity, a renowned manufacturer of urban furniture, introduces the Universal Swivel Height Restrictor. As part of our Access Control & Parking and Height Restrictors categories, this product showcases our commitment to quality, durability, and functionality. Designed and crafted with precision, the Universal Swivel Height Restrictor is an essential component in managing access and promoting safety in urban spaces.

Technical Specifications of the Universal Swivel Height Restrictor

The Universal Swivel Height Restrictor is made from top-grade materials including wood, aluminium, stainless steel, and steel. It combines a robust construction with a sleek design, ensuring it can withstand harsh weather conditions while enhancing the aesthetics of your urban environment. The swivel design provides a practical solution to restrict vehicle height access, and can be easily adjusted to suit specific requirements. The use of superior materials and advanced manufacturing techniques guarantees longevity, making it a cost-effective choice for both municipalities and businesses.

Where Does the Universal Swivel Height Restrictor Apply?

The Universal Swivel Height Restrictor is versatile and can be used in a variety of settings. It is ideal for the regulation of access in locations such as car parks, underpasses, tunnels, and low bridges, where height control is necessary to prevent accidents and damage. It also proves useful in public spaces such as parks, playgrounds, and schools, where vehicle access needs to be controlled for the safety of pedestrians, particularly children.

At Procity, we create products that cater to the unique needs of urban environments. Our Universal Swivel Height Restrictor embodies this commitment, offering a reliable, durable, and easy-to-use solution for height and access control in various settings. Trust Procity to deliver products that uphold safety, promote accessibility, and enhance the urban landscape.
