Universal boom barrier with gas cylinder system

The gas cylinder system allows easy opening and closing. Without any protruding counterweight, it can be positioned close to a wall. In addition, the pendulum support arm grips the ground and ensures stability.


  • Universal boom barrier with gas cylinder system
  • Universal boom barrier with gas cylinder system
  • Universal boom barrier with gas cylinder system
  • Universal boom barrier with gas cylinder system
  • Universal boom barrier with gas cylinder system-1
  • Universal boom barrier with gas cylinder system-2
  • Universal boom barrier with gas cylinder system-3
  • Universal boom barrier with gas cylinder system


Structure

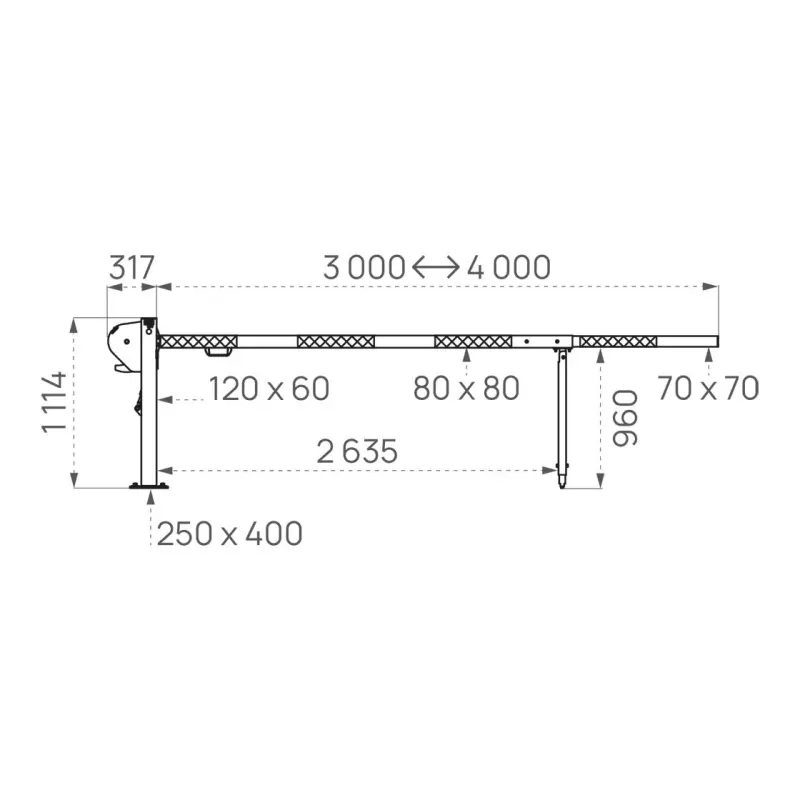

80 x 80 mm aluminium tube extended by a 70 x 70 mm aluminium tube.

Width
adjusts from 3000 to 4000 mm (distance between axis of rotation and the tip of the barrier).

Operating mechanism

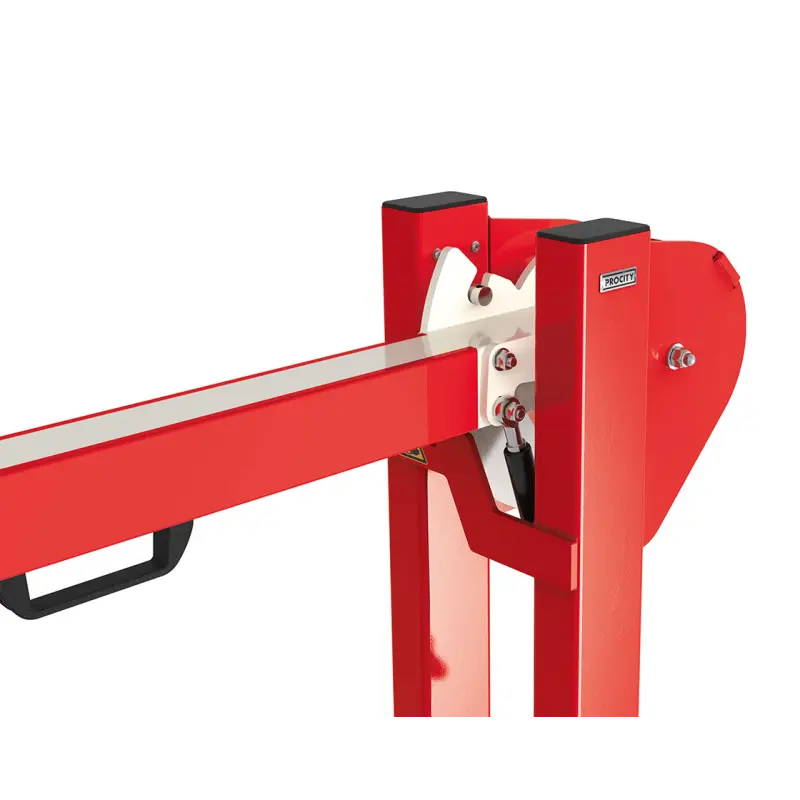

integrated gas cylinder to compensate the weight of the boom and facilitate its use. Rotation on a stainless-steel axel. Automatic locking.

Locking options
key padlock or triangle key padlock . Height adjustable pendulum support arm (+/-100 mm).

Finish
lacquered white steel with red reflective strips. Pendulum support arm finished in RAL 3020.

Installation
on base plates with stencil and ground hooks included.

To download the data sheet, please log in to your dealer area. If you do not have an account, please contact us using our contact form
