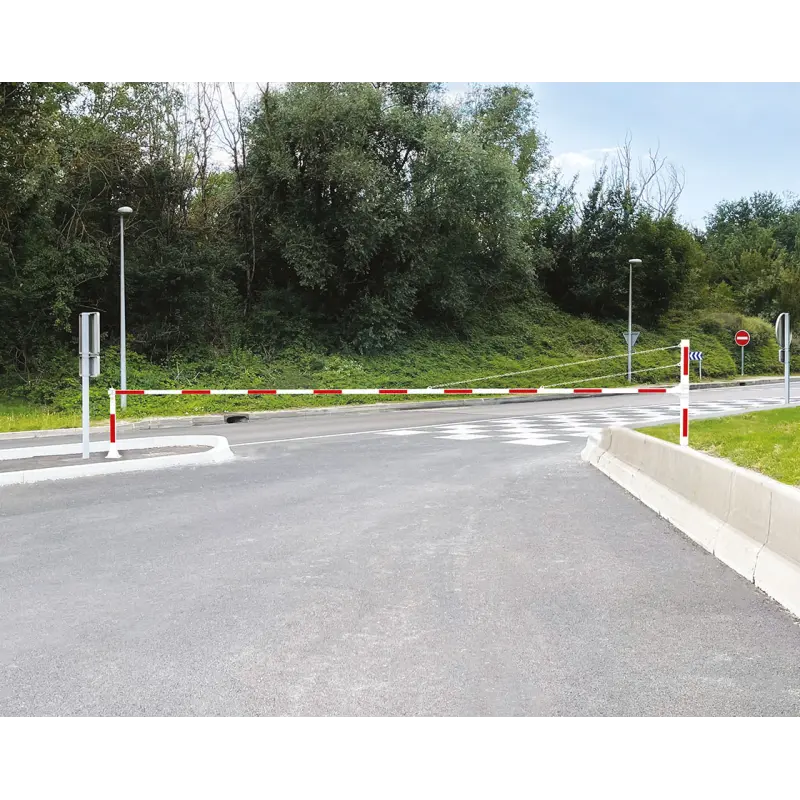

Extra-long universal swivel barrier

An extra long swivel barrier with tension cables for the most restrictive locations.

  • Extra-long universal swivel barrier
  • Extra-long universal swivel barrier
  • Extra-long universal swivel barrier-1
  • Extra-long universal swivel barrier-2
Structure

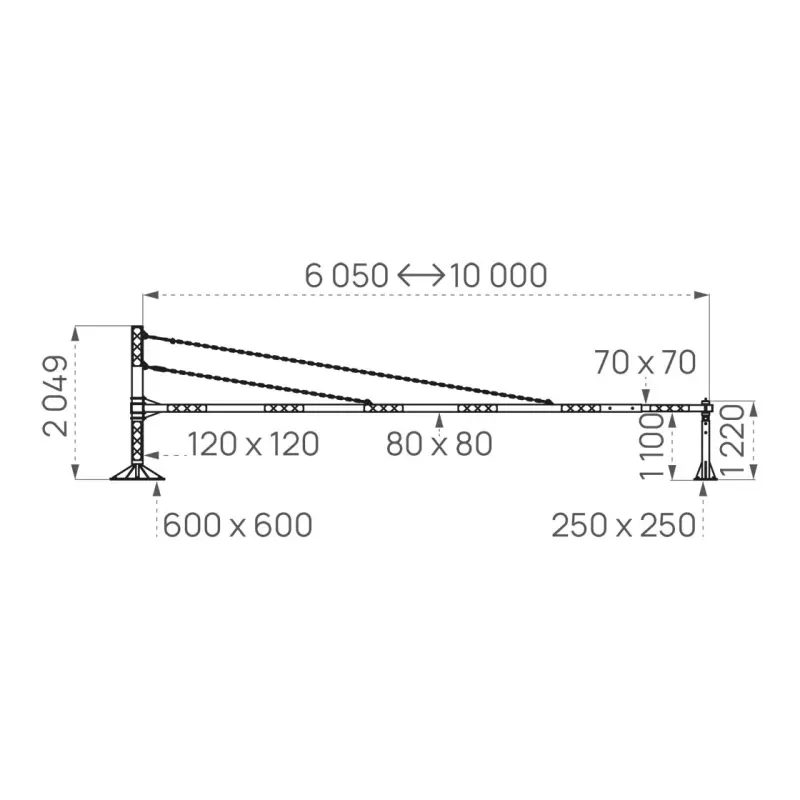

steel tubes, 120 x 120 mm and 80 x 80 mm.

Width
adjustable from 6050 to 10000 mm, locked with screws. (Distance between the axis of rotation and the end of the barrier.

Height
1.1 m

Locking
with padlock (included). Second post included for locking in open position.

Finish
lacquered white over galvanised steel with red reflective strips (contact us for other colour options such as yellow and black).

Installation
on base plates with stencil and ground hooks included in the pre-installation kit.

To download the data sheet, please log in to your dealer area. If you do not have an account, please contact us using our contact form
