Secure shelters

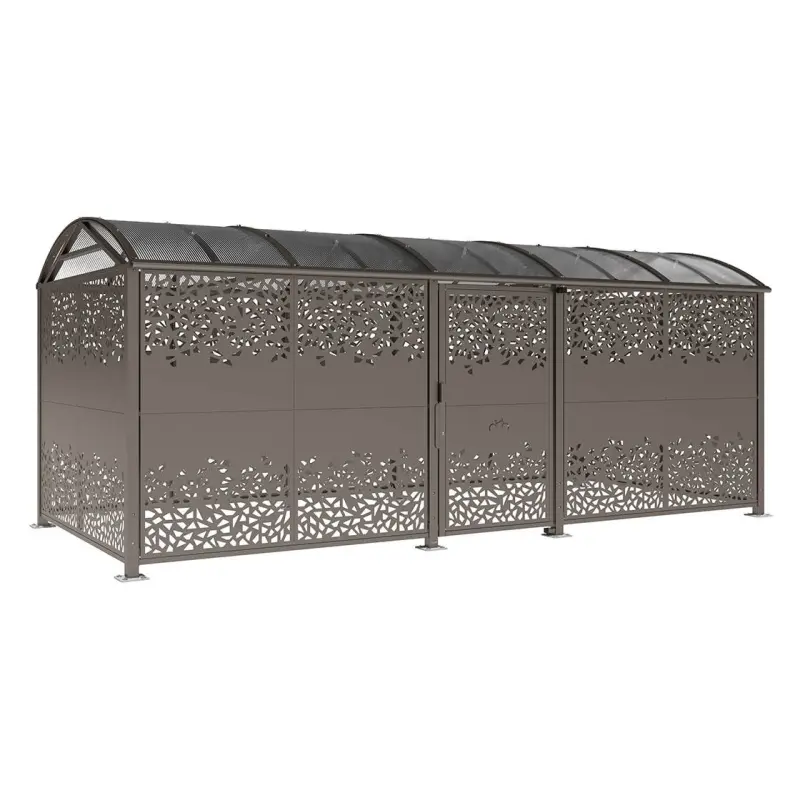

Voute roof secure "XL" shelter for bikes and motor bikes with cut steel sheet
This spacious shelter ensures optimal protection and comfortable use. Its generous capacity shelters bicycles and motorcycles from bad weather and vandalism, whether in public spaces or private parking areas.
You can choose from various colors among the available RAL tint options. The enclosure can be secured with either a mechanical code lock or a European key lock.
Technical features
Length
6225 mm
Dimensions
height 2646 to 2796 mm x depth 3023 mm
Parking capacity
up to 12 bicycles (depending on the bicycle stand or rack chosen)
Structure
80 x 80 mm galvanised steel posts
Roof
60 x 40 mm steel cross-members and aluminium gutters, 10 mm anti-UV treated cellular polycarbonate barrel roof. Anti-intrusion roof reinforcements
Cladding
1.2 mm thick decorative sheet metal
Single door
upper part in decorative sheet metal, lower part in 1.5 mm thick sheet metal. Unlocking by European key or mechanical digicode. Opening from the interior without keys. Doors held in open and closed positions by a cylinder
Finish
painted on galvanised steel in our colours
Available colours
RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
Installation
on 200 x 200 mm galvanised base plates, height-adjustable feet (max 150 mm), expansion bolts included. 400 x 400 mm square concrete blocks, 400 mm high
Options
connected lock ref. 529089; LED lighting ref. 509041; bicycle stands and racks
