Secure shelters

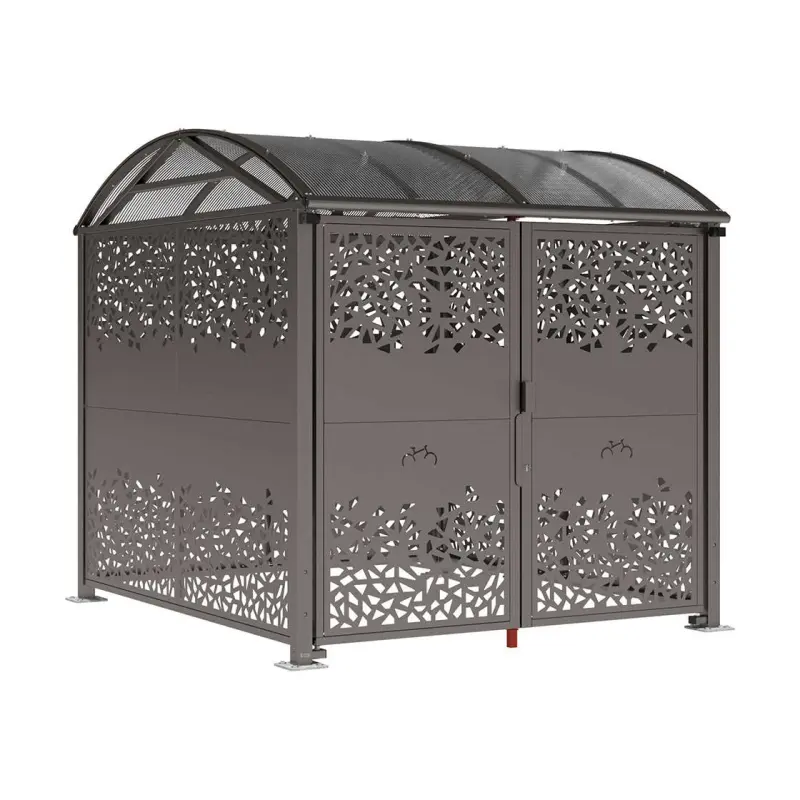

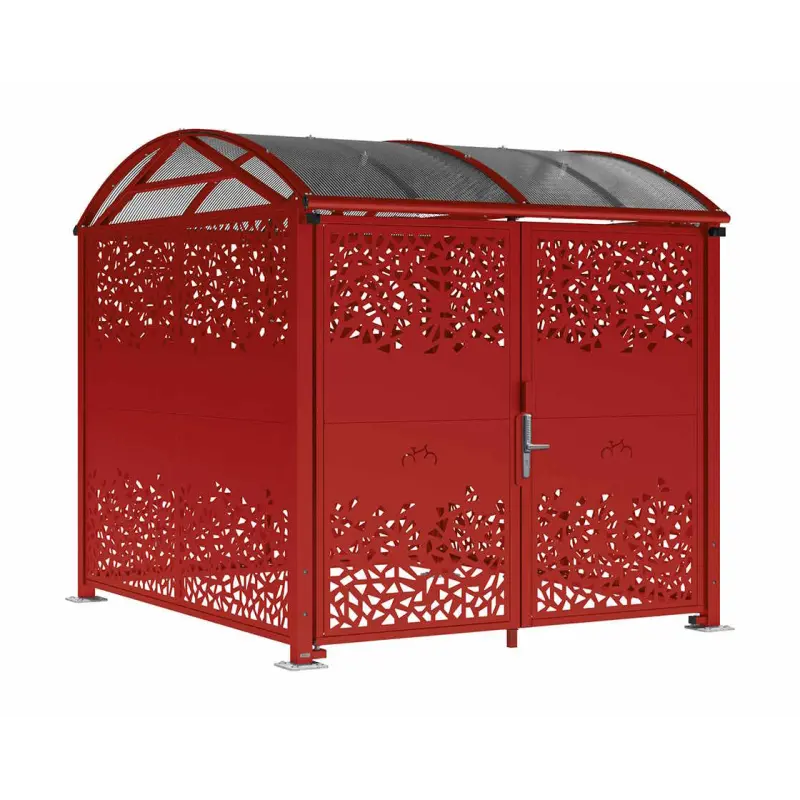

Voute roof secure "L" shelter for bikes and motor bikes with cut steel sheet
Our new secure bike shelter made of cut sheet metal offers an effective protection solution to reduce the risk of bike theft when parked in public spaces or private parking areas. The initial capacity of this outdoor shelter allows for parking up to 6 bicycles or 2 motorcycles. Modular in design, this enclosed shelter can be expanded as desired by adding additional extensions.
Technical features
Length
2520 mm
Deep
3023 mm
Parking capacity
up to 6 bicycles for a module (depending on the bicycle stand or bicycle rack chosen)
Structure
galvanised steel tubes 80 x 80 mm
Roof
steel cross-members 60 x 40 mm and two aluminium rainwater gutters, painted in our colours, 10 mm anti-UV treated cellular polycarbonate barrel roof. Anti-intrusion roof reinforcements
Double door
upper part in cut steel sheet, lower part in 1.5 mm thick sheet metal. Unlocking by European lock/key or mechanical digicode. Opening the doors from the interior without keys. Doors held in the open and closed position by drop bar and shoes
Finish
painted in our colours
Extension
extension module, 2520 mm length
Installation
on galvanised base plates, height adjustable feet, expansion bolts included
Options
LED lighting, connected lock, bike racks and stands
