Technical features
Length: 2000 mm.
Structure: Steel tube Ø 60 mm.
Opening system: Pivot mounted shaft.
Locking: With a Ø 20 mm pin and padlock (included). Can be locked at 90° in the open position.
Locking options: 11 mm triangle key or 14 mm captive triangle key.
Finish: Galvanised steel or galvinsed and painted in our standard RAL colours.
Installation: On 200 x 200 mm base plate with concreted anchor rods (included).
- Download the specification sheet >
- Assembly & installation instructions 311-V4 >

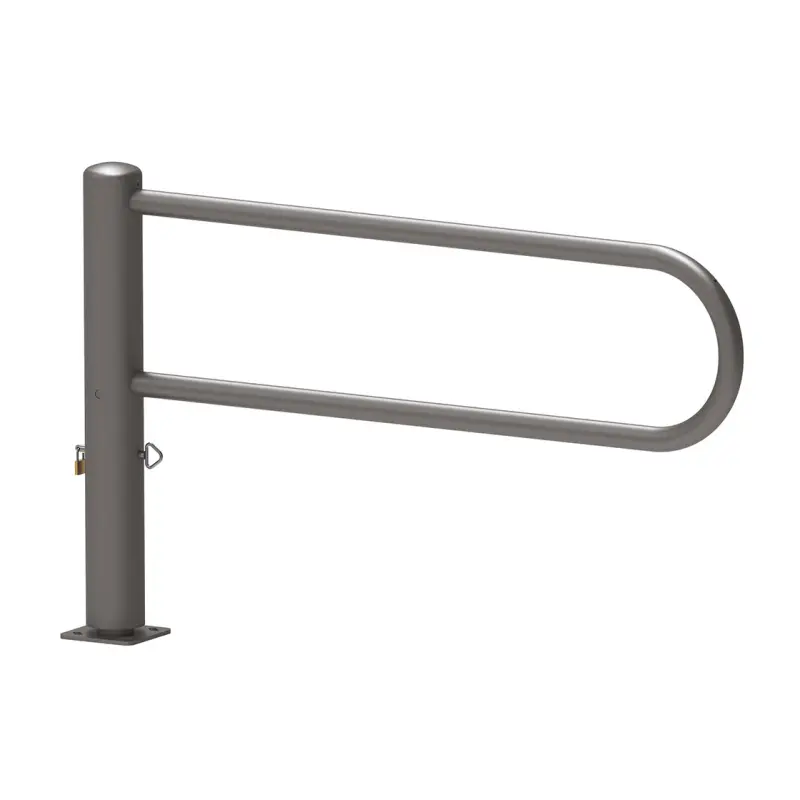

Swivel Barrier
A access control barrier available in 2000 mm and 2500 mm versions with an offset swivel axis. This latest model is equipped with a vertical tube to which a sign can be attacched.
