Secure shelters

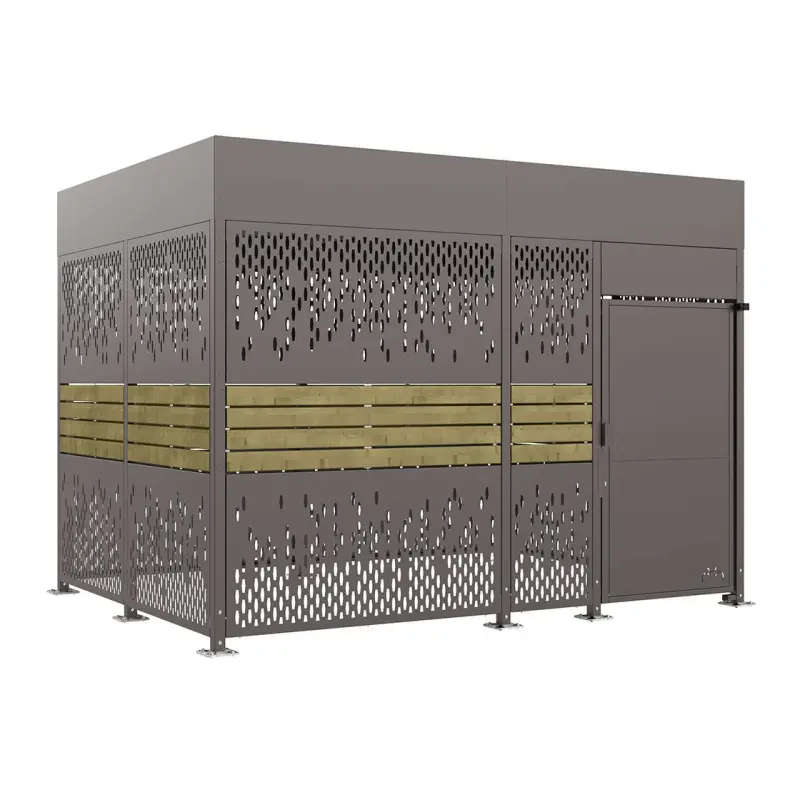

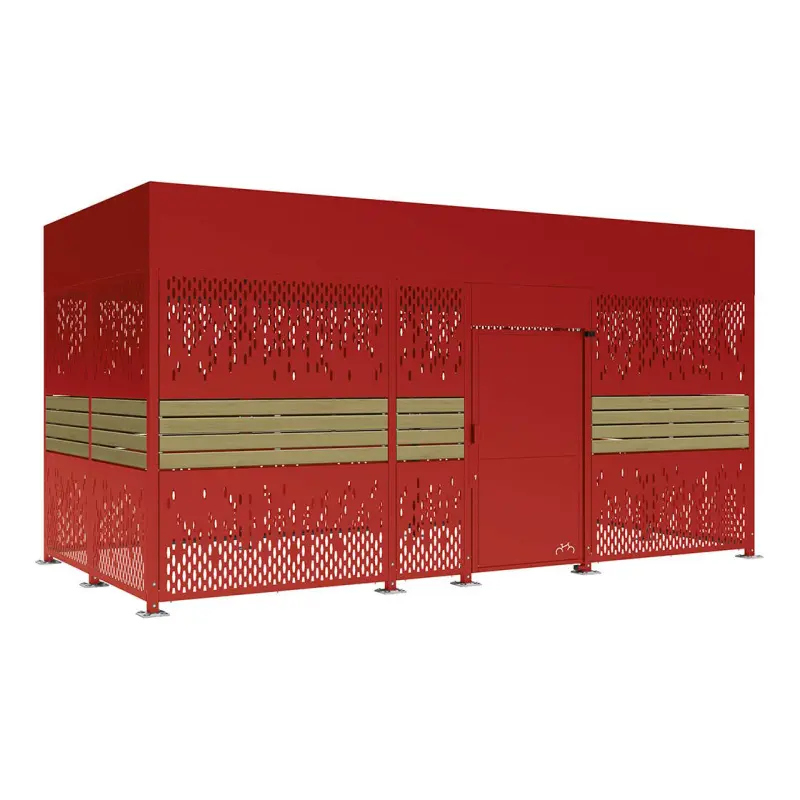

Steel and wood Horizon secure bike shelter
Modular, elegant and functional, the Horizon bicycle shelter adapts to all your configurations. Create a customised bicycle space by freely adding the modules you need, with no length restrictions. Designed to accommodate single or double-deck racks, it maximises parking space while ensuring enhanced security. Horizon is a practical and scalable shelter that adds lasting value to your cycling spaces.
Technical features
Two lengths
4023 or 5998 mm
Dimensions
height 3000 to 3150 mm x depth 3066 mm
Parking capacity
up to 8 bicycles for a 4023 mm wide module and 12 for a 5998 mm wide module (depending on the bike rack or support chosen)
Structure
70 x 70 mm galvanised steel posts
Roof
90 x 50 mm steel tube cross-members, 3 mm thick and 1.25 mm metal sheet panels
Cladding
2 mm thick decorative metal sheet and 36 mm thick resinous wood
Single door
sheet metal. Door can be opened from the inside without a key. Door held in open and closed positions using a gas strut
Locking system
European key lock, connected lock (optional), or mechanical keypad (on request)
Finish
painted steel on galvanised according to our colours and raw resinous wood
Available colours
RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
Installation
on galvanised base plates, height-adjustable feet (max. 150 mm), expansion bolts supplied
Options
connected lock, canopy, bike rack, “BIKE PARK” sticker, LED lighting, “bicycle” symbol signage
