Square post bus shelters
Our bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.

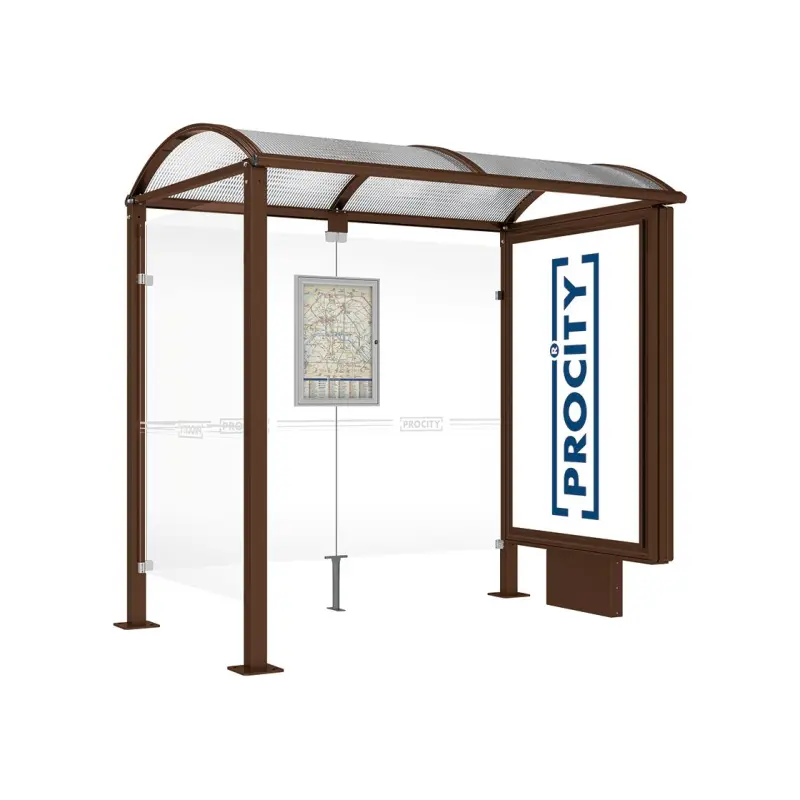

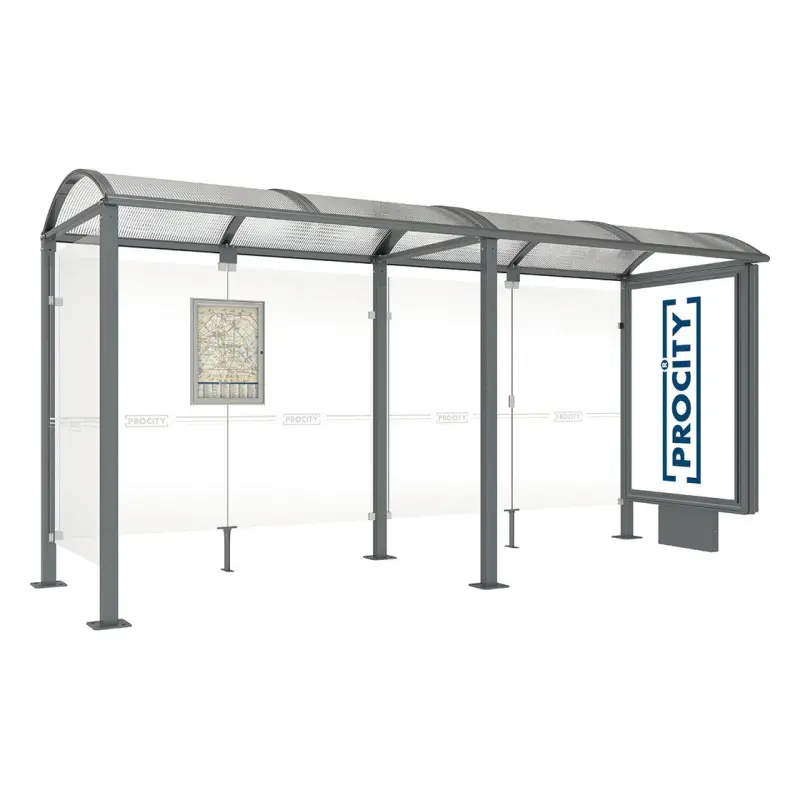

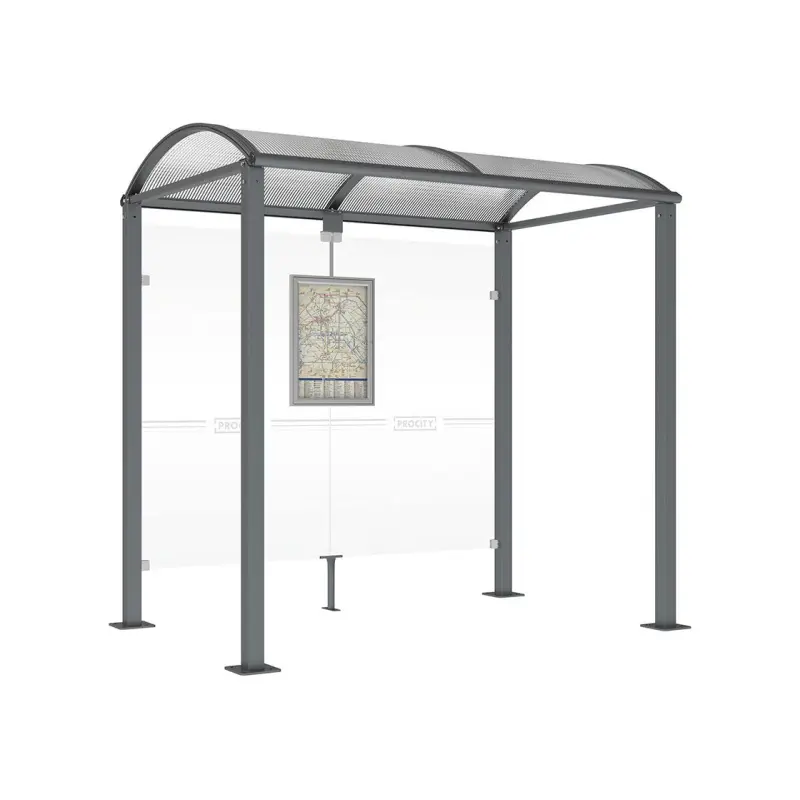

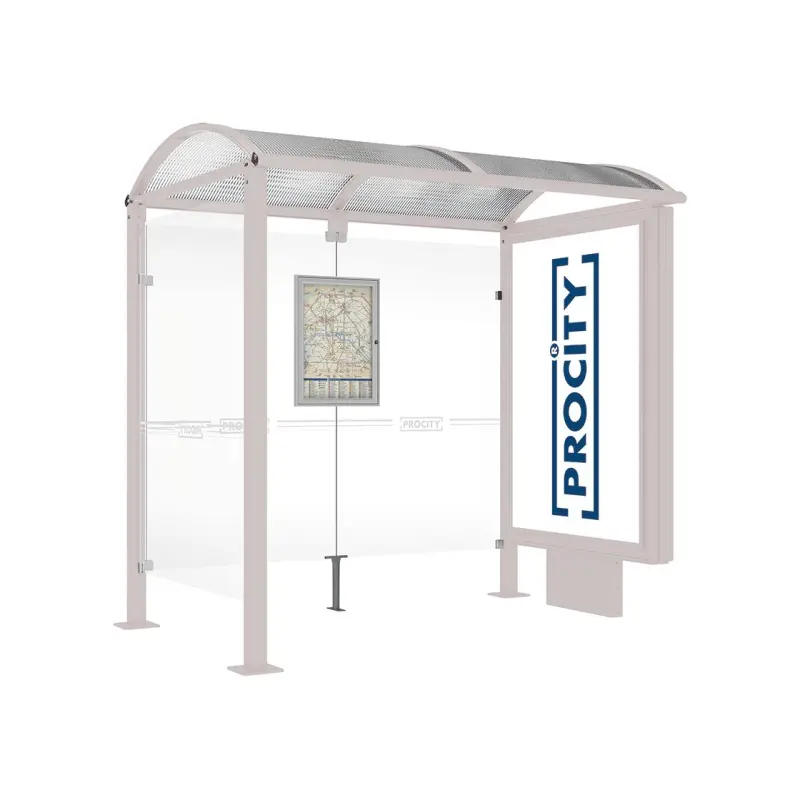

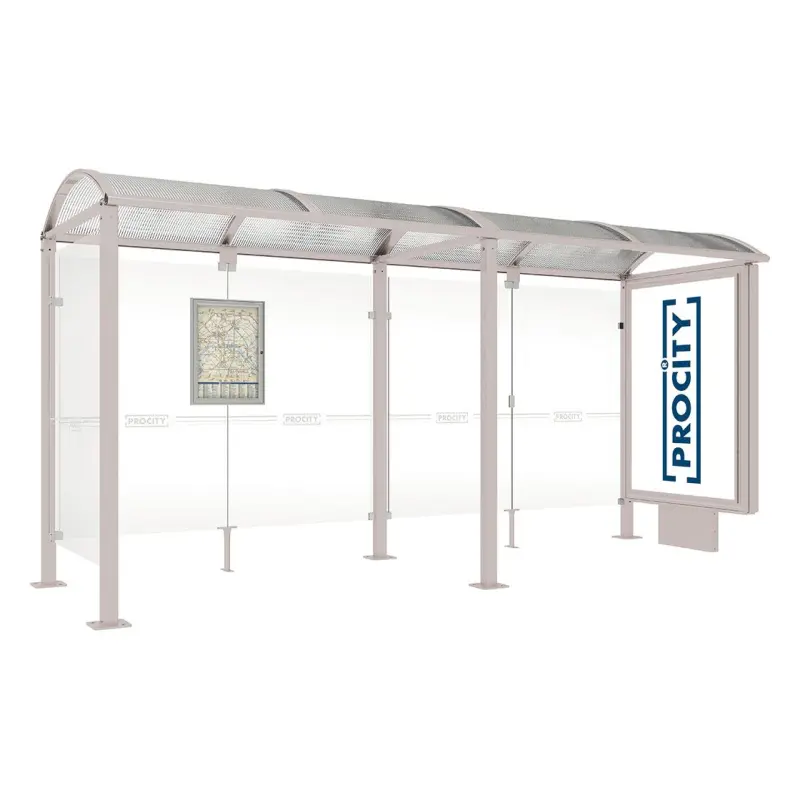

The standard square post bus shelter is available in 2500 mm length or 5000mm for greater passenger waiting capacity.
All bus shelters are supplied with rear cladding and a timetable case.

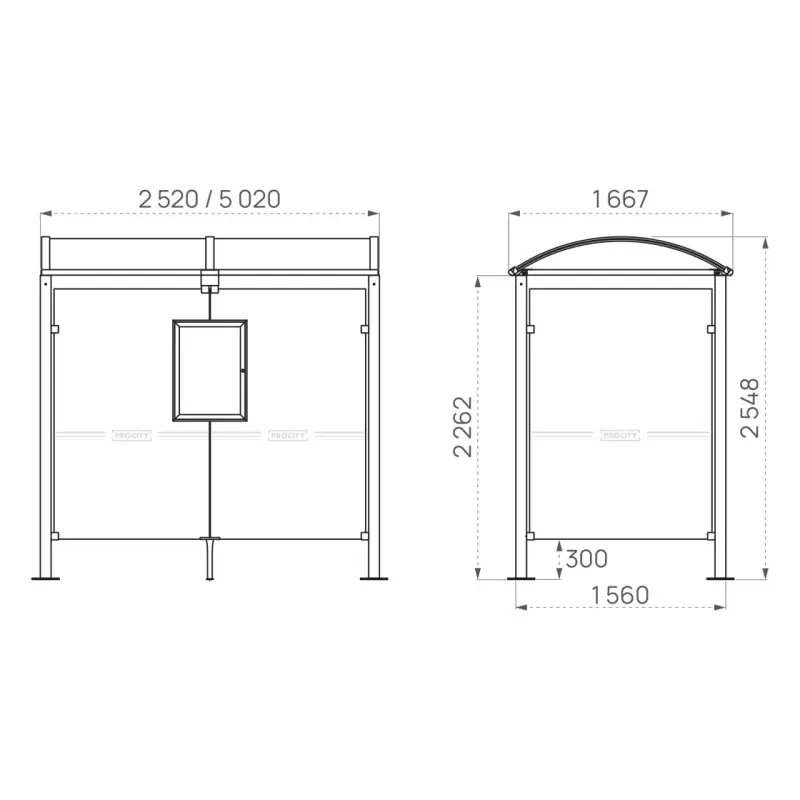

Two lengths: 2500 or 5000 mm.
Total depth: 1600 mm.
Square posts: 80 x 80 mm steel tubes on base plates.
Under roof height: 2500 mm.
Roof: 6 mm anti-UV-treated cellular polycarbonate.
Roof frame: 40 x 60 mm aluminium-tube crossbars and aluminiumprofile rain gutters. Barrel roof supports made from curved aluminium profiles.
Rear and side cladding: 8 mm safety glass.
Cladding attachments: pinch-grip system made from Zamak alloy with brushed finish.
Timetable display case: 750 x 550 mm (4 A4) x 30 mm deep, in anodised aluminium.

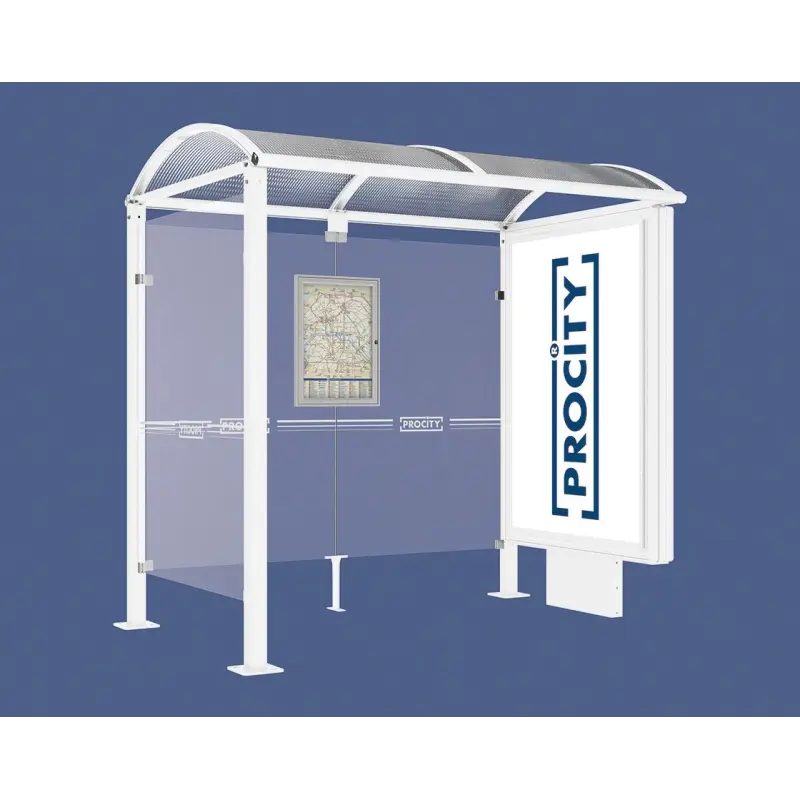

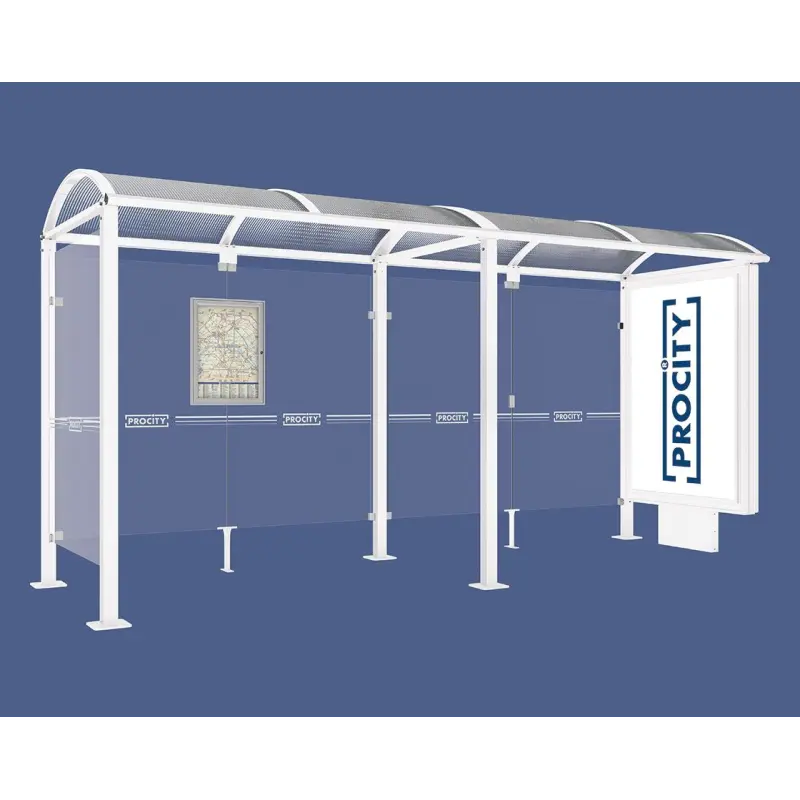

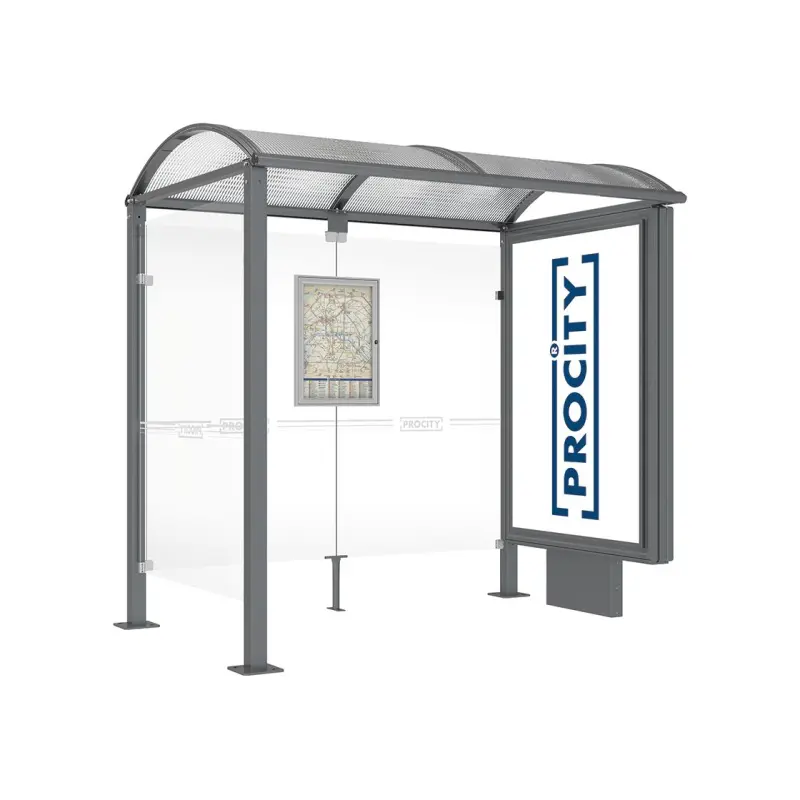

Advertising space: light box (1710 mm x 1160 mm display area) or “2000” display case (1750 mm x 1200 mm display area).
Finish: galvanised and painted in our colours.
Installation: on base plates.
