Secure shelters

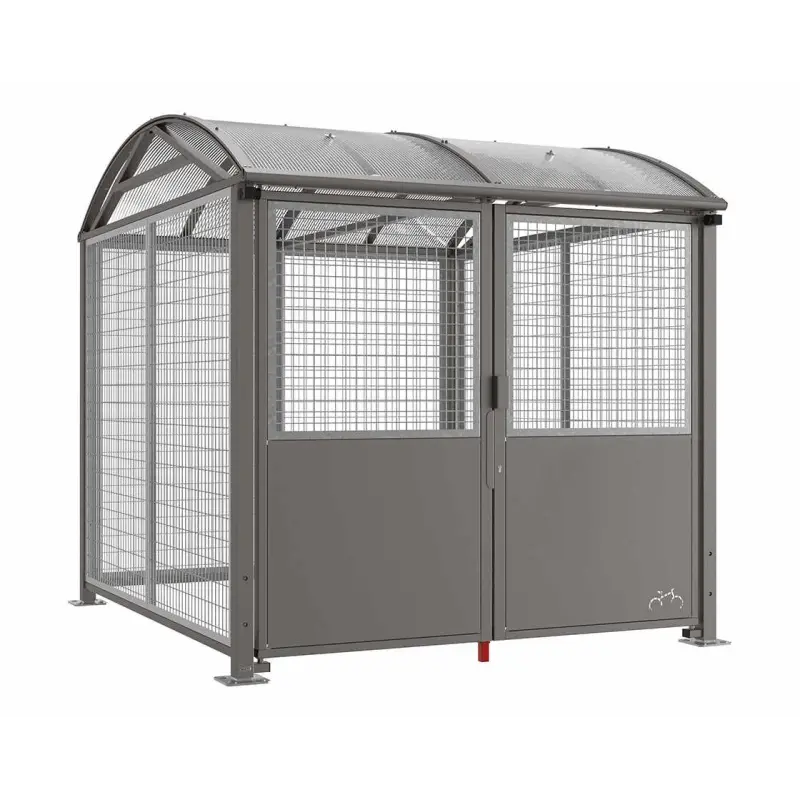

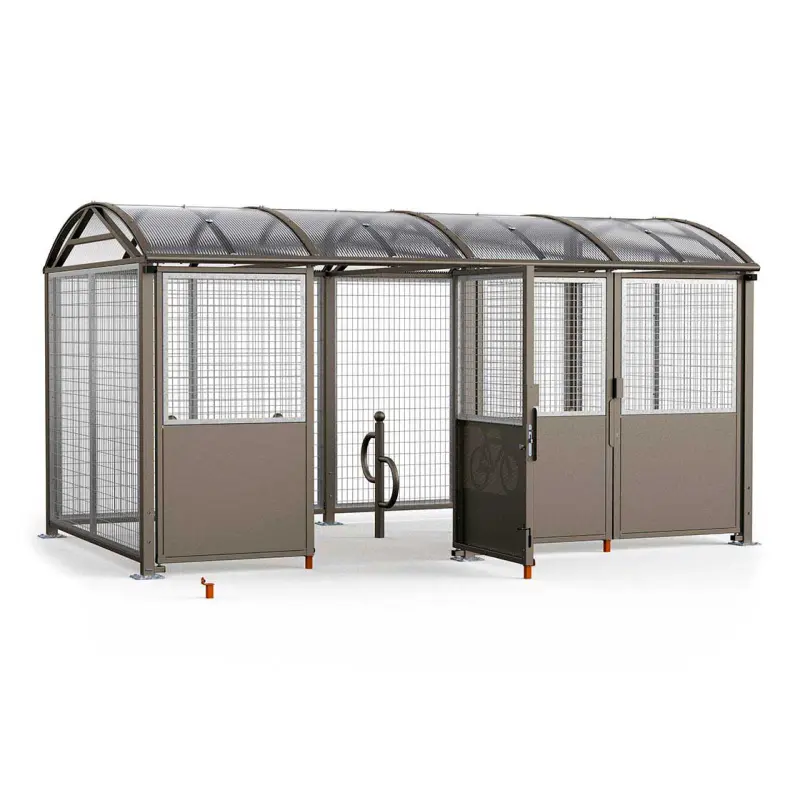

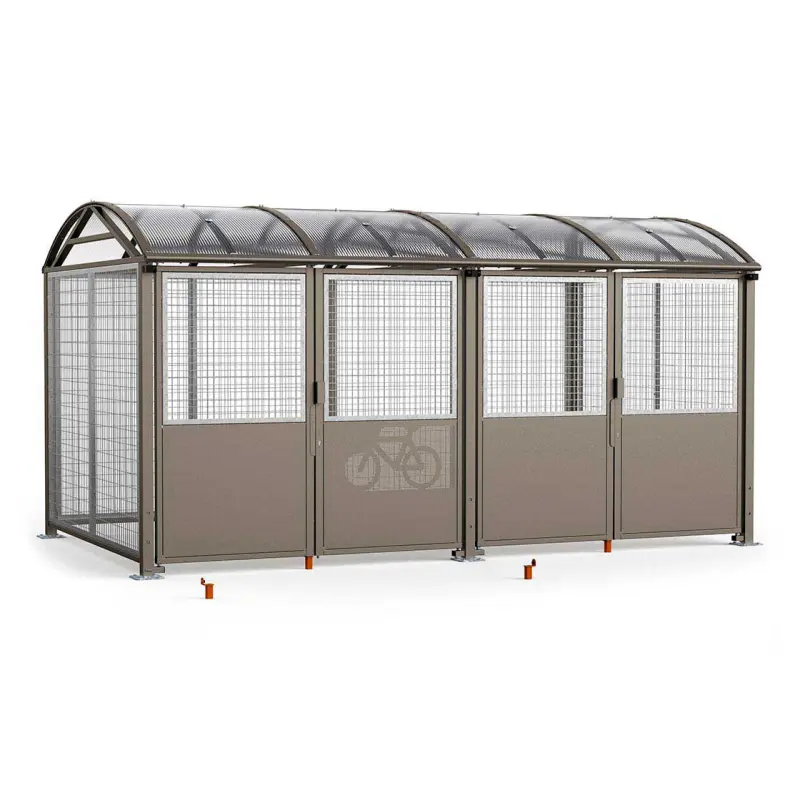

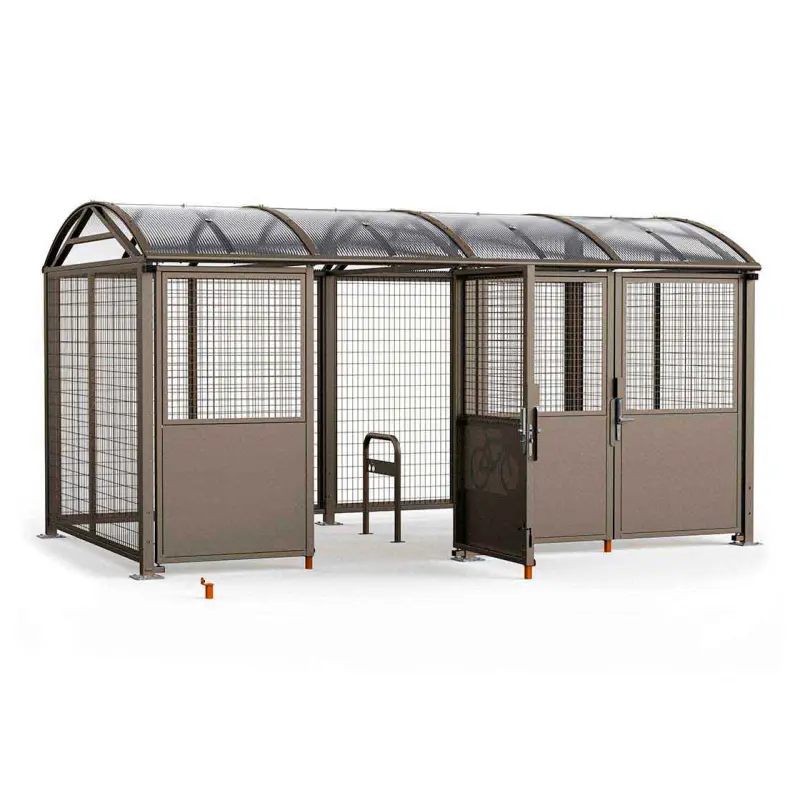

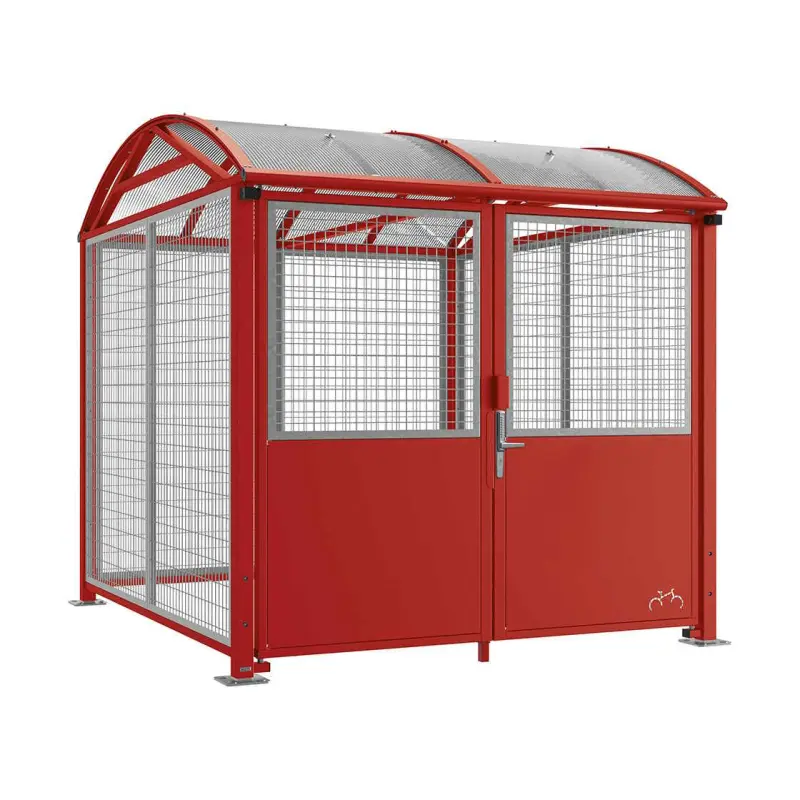

Voute roof secure "L" shelter for bikes and motor bikes

PROCITY® offers you its new shelter for the secure storage of bicycles, scooters, scooters and motorcycles. Its galvanized steel posts and wire mesh make this product an effective and durable solution to reduce the risk of theft of parked two wheelers.

Technical features

Length
2520 mm
Dimensions
height 2646 to 2796 mm x depth 3023 mm
Parking capacity
up to 6 bicycles for a 2520 mm module (depending on the bicycle stand or bicycle rack chosen)
Structure
80 x 80 mm galvanised steel posts
Roof
60 x 40 mm steel cross-members and aluminium gutters, 10 mm thick UV-treated cellular polycarbonate barrel roof. Anti-intrusion roof reinforcements
Cladding
rectangular wire mesh Ø 5 mm wire welded to an angle frame
Double door

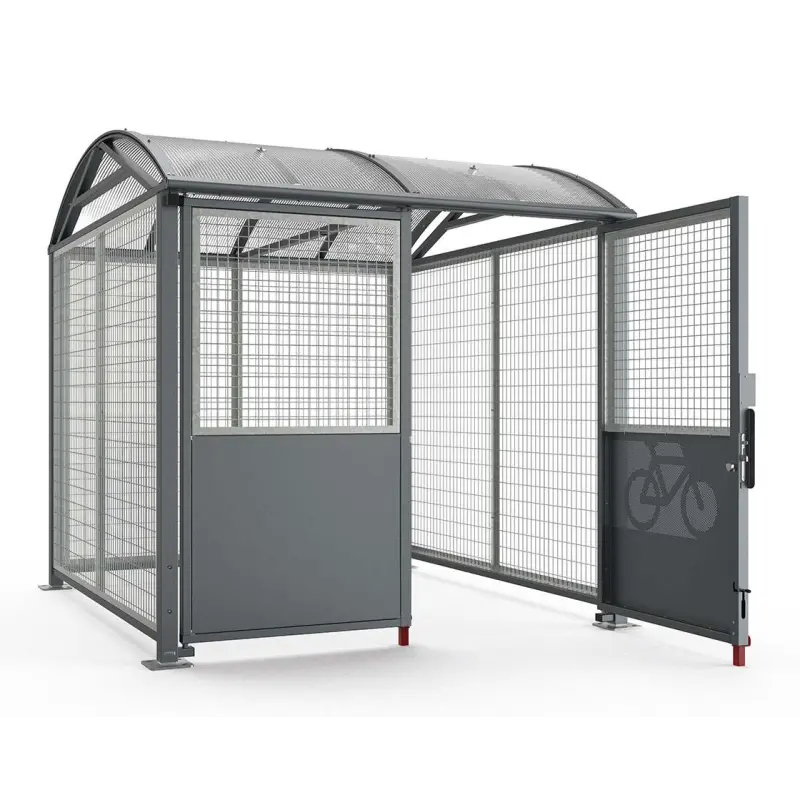

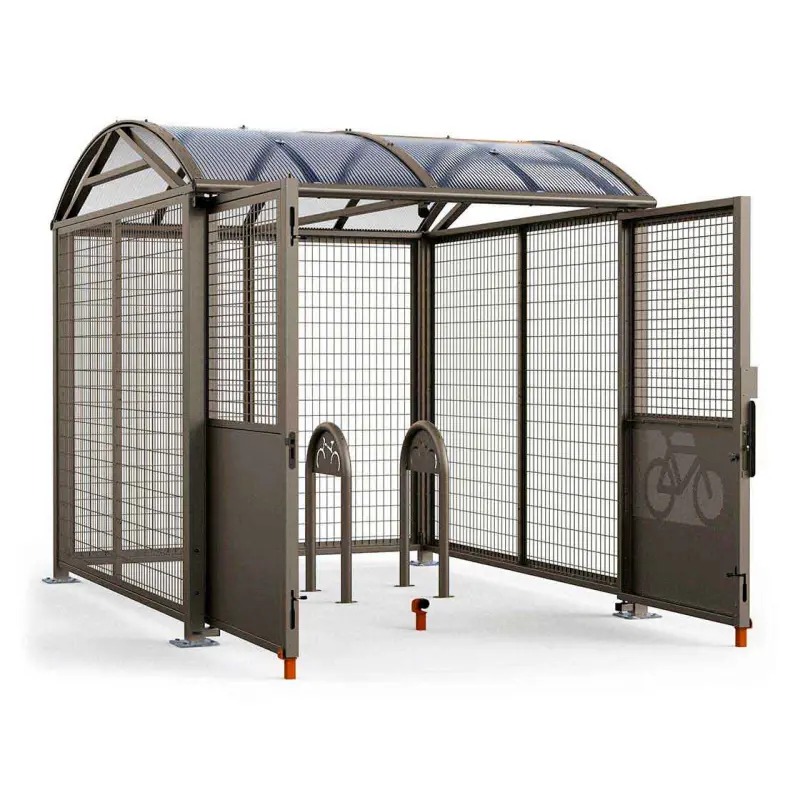

upper part in Ø 5 mm square wire mesh, lower part in 1.5 mm thick sheet metal. Unlocking by European key or mechanical digicode. Opening the doors from the interior without keys. Doors held in open and closed position by a cylinder
Extension

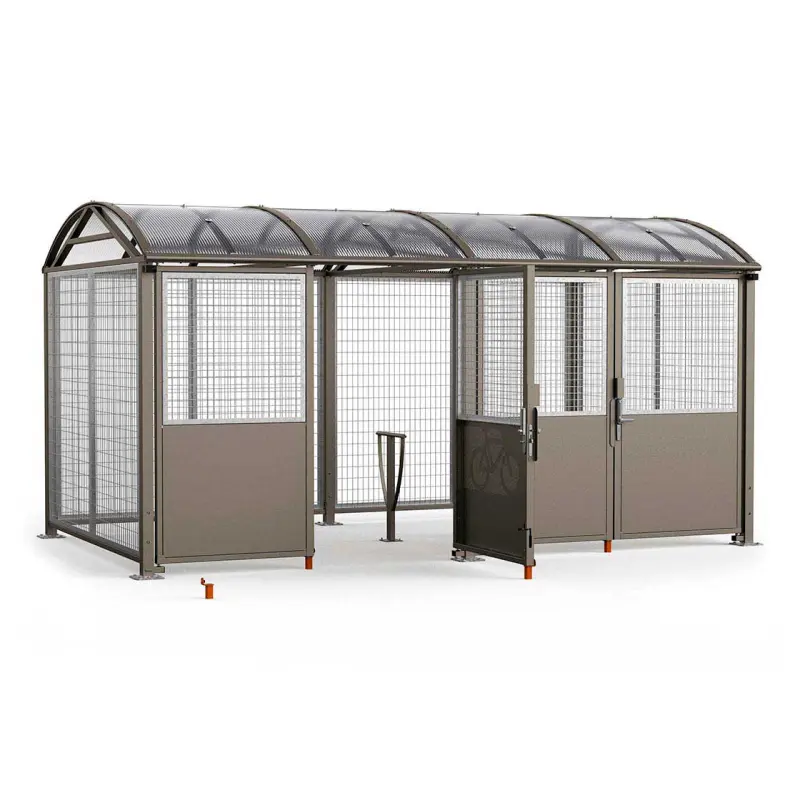

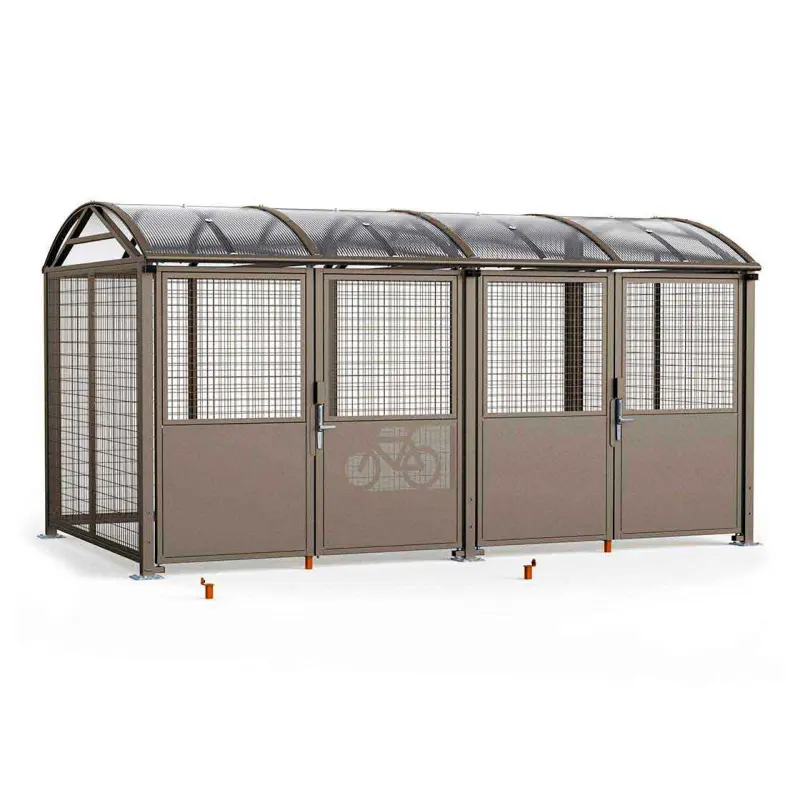

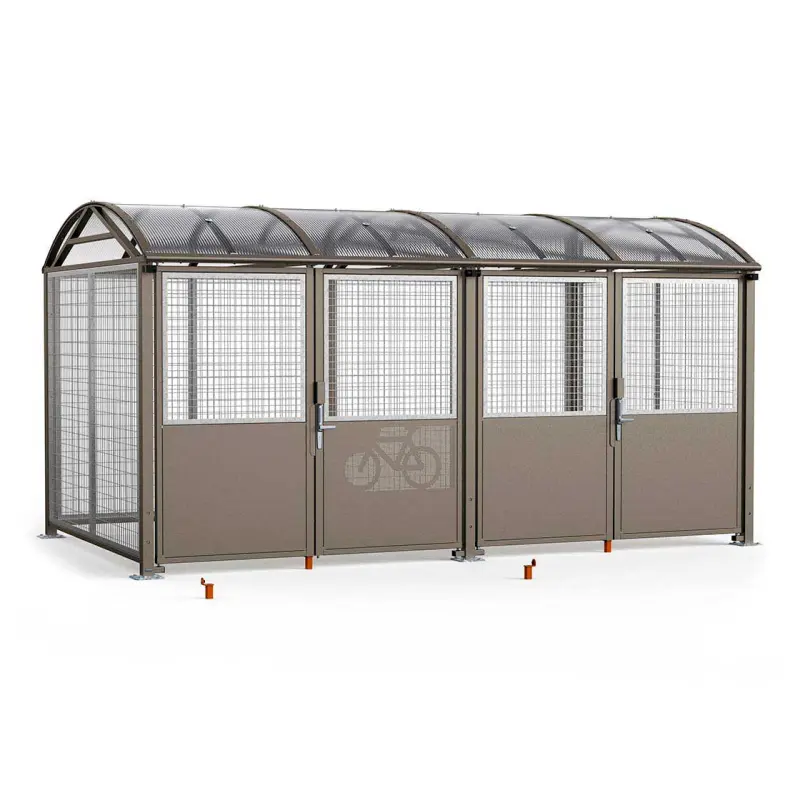

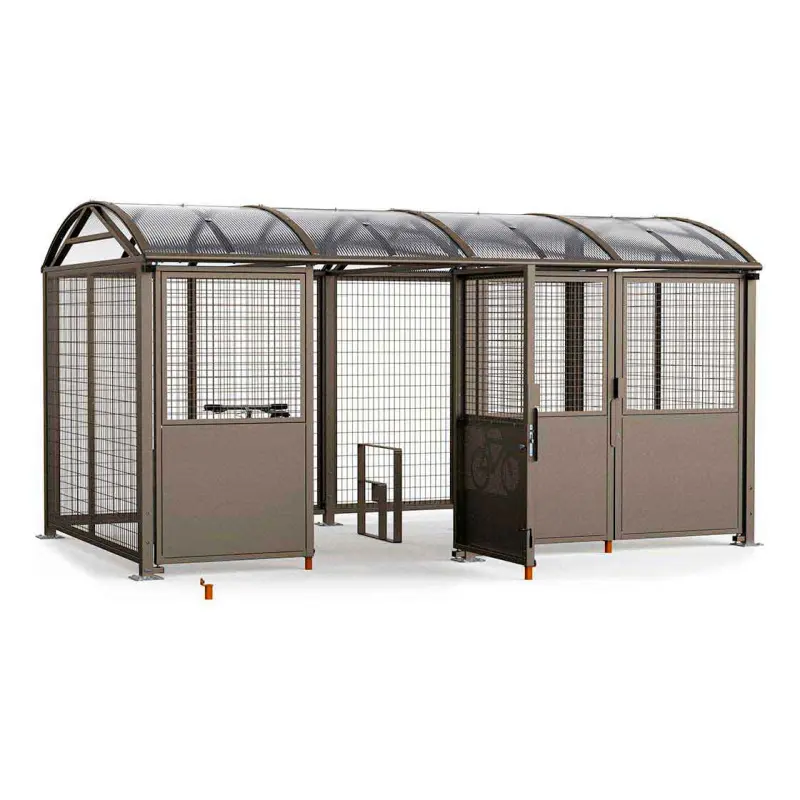

extension module, 2440 mm length
Finish
painted on galvanised steel according to our colours, galvanised or painted wire mesh according to our colours
Available colours

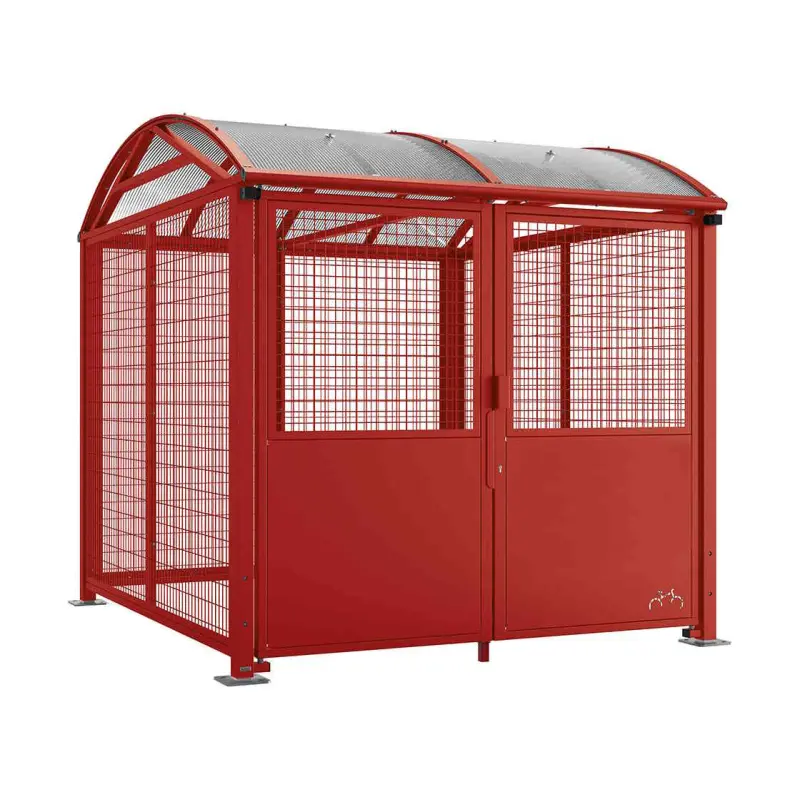

RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
Installation
on 200 x 200 mm galvanised base plates, height-adjustable feet (max 150 mm), expansion bolts included. Square concrete blocks 400 x 400 mm, height 400 mm and square concrete block 250 x 250 mm, height 400 mm
Options
connected lock ref. 529089; LED lighting ref. 509041; bicycle stands and racks

Technical files

To download the files, please log in to your Distributor area…

Description

Secure Shelter for Bikes and Motorbikes by Procity





As urban mobility evolves, the demand for secure and efficient bike storage solutions rises steadily. Procity, an industry leader in the production of urban furniture, introduces the Barrel Roof Secure "L" Shelter for bikes and motorbikes, a product designed with the utmost care and innovation to meet the needs of communities and businesses. This shelter guarantees safe storage for two-wheelers, significantly reducing the risk of theft, a recurrent concern for urban cyclists and motorbike users.





Technical Specifications of the Barrel Roof Secure "L" Shelter





Our bike shelter is a combination of robust materials and intelligent design. With dimensions of 2520 mm wide x 2640 mm high x 2830 mm deep, the structure is made from galvanised steel tubes 80 x 80 mm. The roof is composed of steel cross-members 60 x 40 mm and two aluminium rainwater gutters, painted in our distinct colours. The 10 mm anti-UV treated cellular polycarbonate barrel roof, reinforced to prevent intrusion, offers an additional layer of protection against theft and adverse weather conditions.





For the back and side cladding, a rectangular wire mesh ø 5 mm is welded to a steel angle frame, available in a galvanised or galvanised and painted finish. The double-door design comprises an upper part in ø 5 mm square wire mesh and a lower part in 1.5 mm thick sheet metal. The unlocking mechanism is a European lock/key or mechanical digicode. The doors can be opened from the inside without keys, and are held in the open and closed position by a drop bar and shoes.





To meet varying needs, an extension module of 2520 mm wide is also available, providing flexibility and adaptability.





Application and Suitability of the Barrel Roof Secure "L" Shelter





The Barrel Roof Secure "L" Shelter is an essential piece of urban furniture for any public or private space frequented by cyclists or motorbike users. It is particularly suitable for public parks, office buildings, residential complexes, educational institutions, and transportation hubs. The shelter functions as a secure and reliable storage solution, promoting the use of sustainable transport methods by providing peace of mind for two-wheeler users.





With Procity's Barrel Roof Secure "L" Shelter, we bring you a product that combines aesthetics, functionality, and security. This shelter is a testament to our commitment to create urban spaces that are in tune with the evolving needs of modern mobility.
