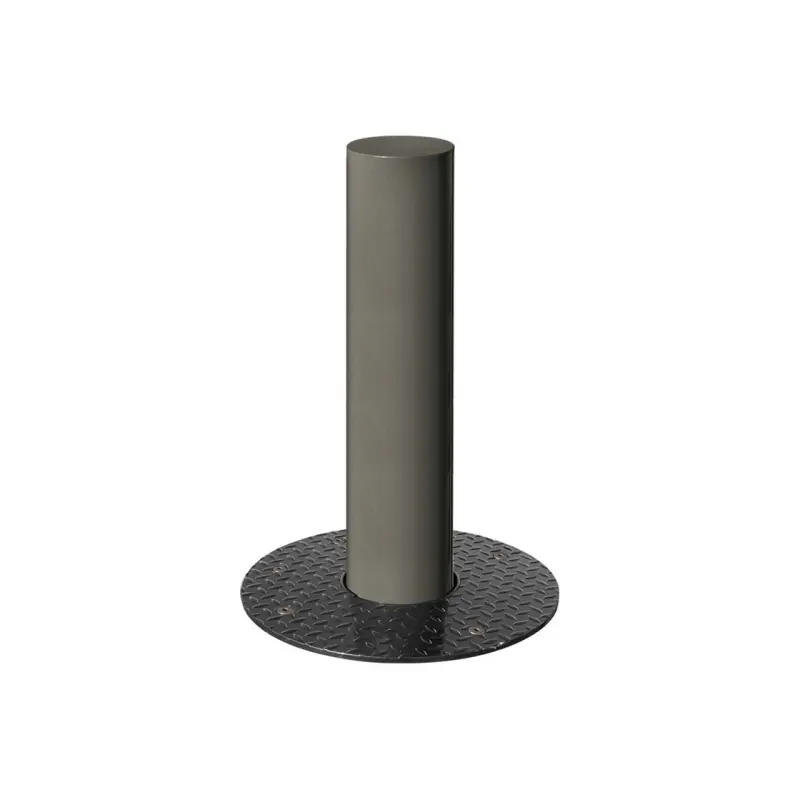

Retractable barcelona bollard

Manually operated retractable bollards in three different heights to allow frequent and quick access to protected or restricted areas.

  • Retractable barcelona bollard
  • Retractable barcelona bollard
  • Retractable barcelona bollard
  • Retractable barcelona bollard

Technical features

Finish: zinc primed and painted in our colours.

Installation: concreted directly into ground.

Lock mechanism
Automatic and self-locking system made in stainless steel,standard lock uses 11 mm triangle key.

Ground-cover
Steel, ø 460 mm in 10 mm gauge, galvanised and lacquered in black. Non-slip texture.

Sliding mechanism
The bollard is equipped and maintained by centre and side guide rails.Powered by a sealed gas piston, the bollard slides vertically within the chamber.

Casing
Casing is made of galvanised steel tube with lift eyelets for quick and easy installation.

Dimensions:
1030 mm high x 545 mm wide.

If installed within 5 miles of the coast, we strongly recommend an additional weather treatment for the steel work (galvanising). Contact us for more details.
