Bicycle shelters

Technical features


Dimensions: 2800 mm width x 2040 mm x high x 2465 deep.

Structure: Tublar steel, assembled using inserts with screws.

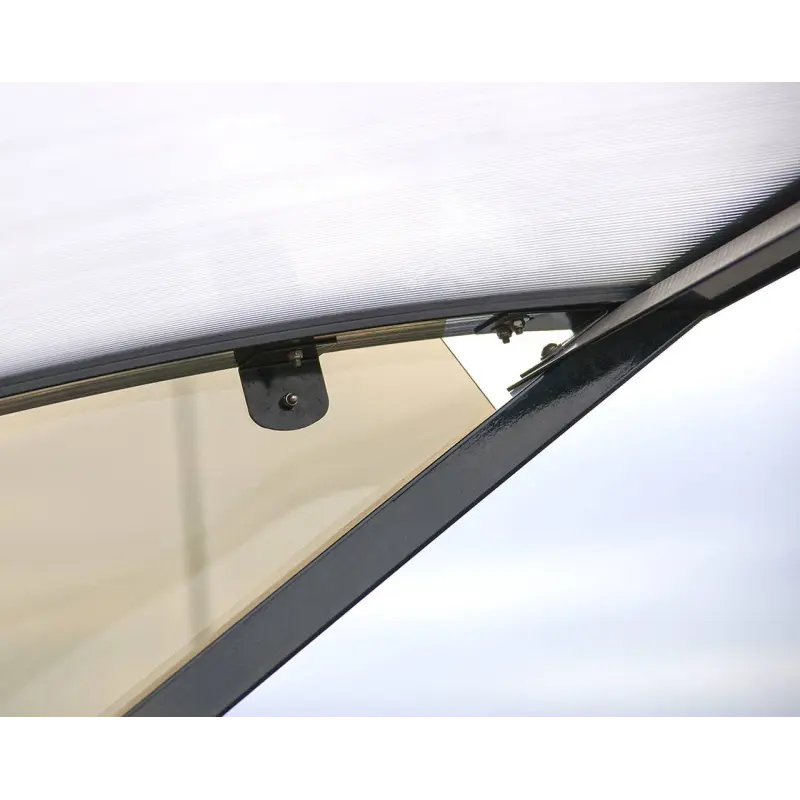

Roof: Steel crossbeams with inserts, aluminium profile structure and rain gutter, anti-UV-treated 6 mm cellular polycarbonate panel.
Finish: Galvanised and painted in our standard RAL colours.

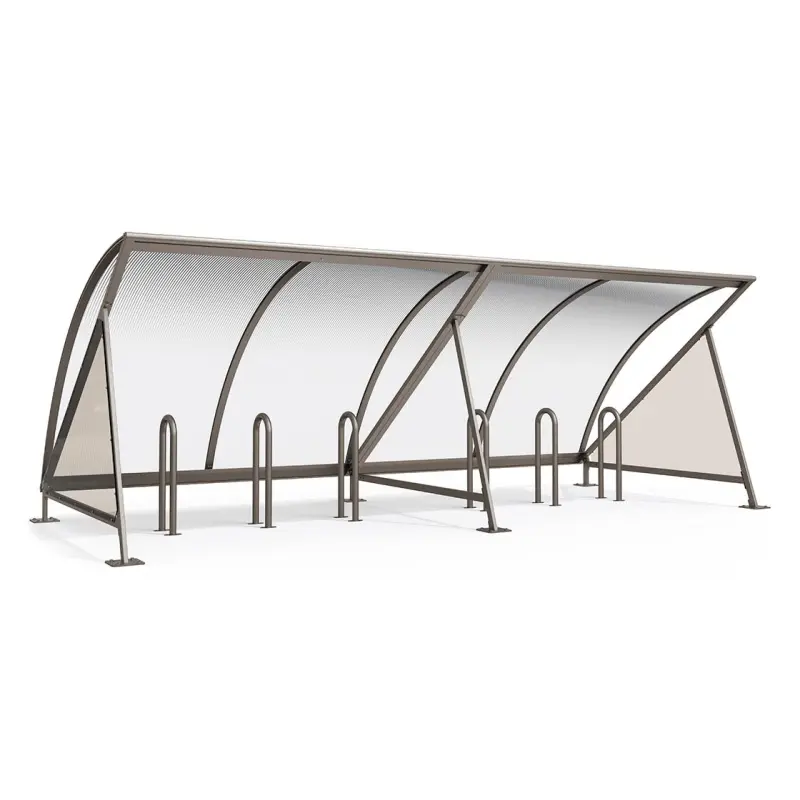

Extension: Extension module, 2800 mm wide.
Side cladding: 4 mm tinted polycarbonate.

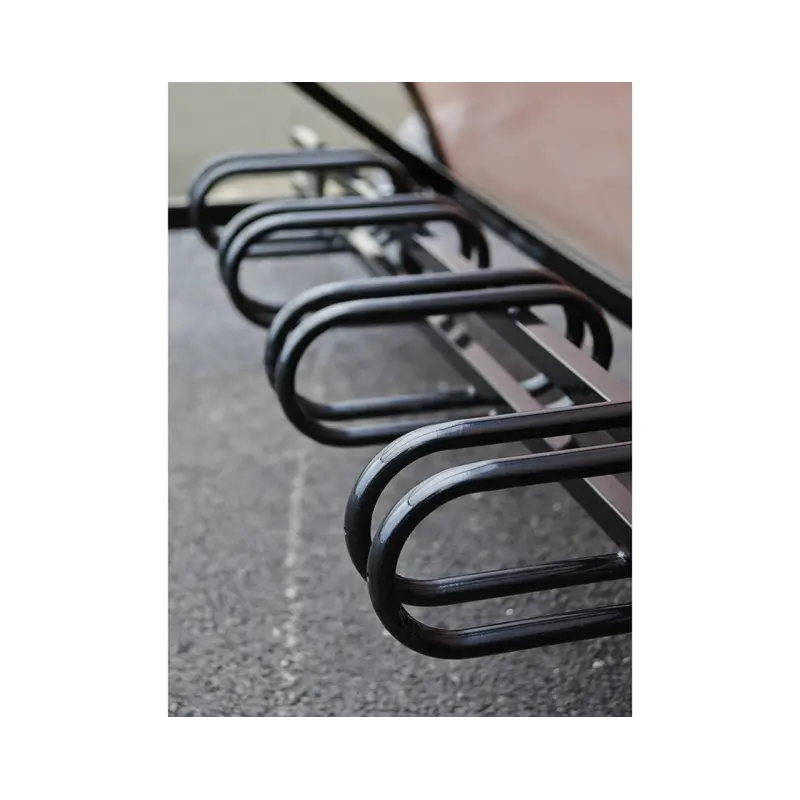

Bicycle rack: 6 spaces Ø 22 mm steel tubes, attached to the crossbars by stainless steel screws (supplied).
Installation: On base plates and expansion bolts supplied.

Optional:
Upper side cladding: Semi-circles of tinted polycarbonate (pair).


  • Download the specification sheet >

  • Assembly & installation instructions 203-V4 >

  • Assembly & installation instructions 204-V4 >

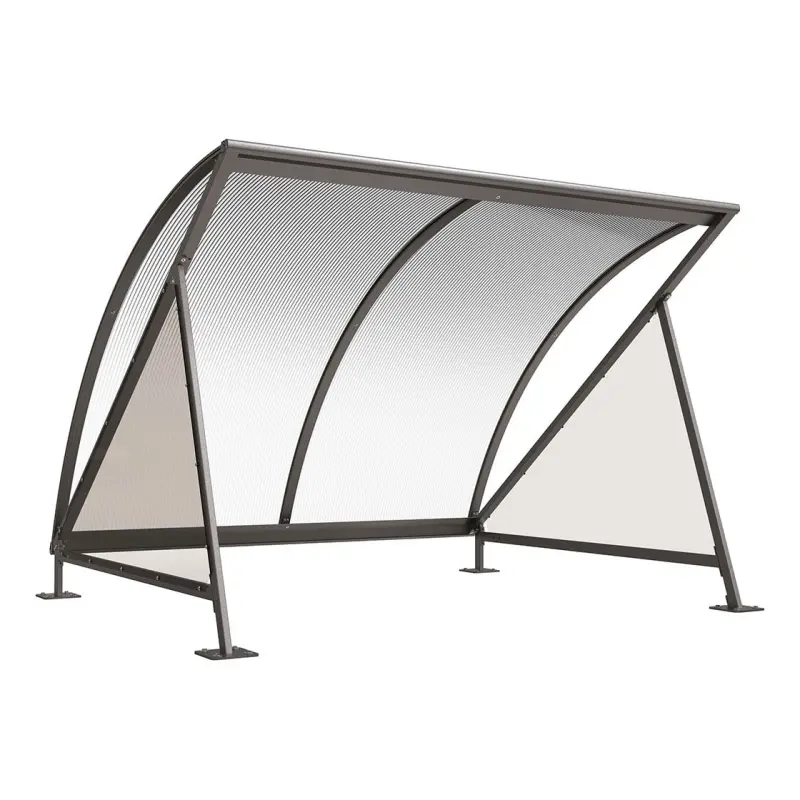

Moonshape bicycle shelter

This sturdy shelter offers an effective and elegant bike parking solution.

Procity Grey
RAL 9010
RAL 5010
RAL 3020
RAL 9005
RAL 7044
RAL 3004
RAL 6005
RAL 8017
Corten effect

Product code : 529030
Weight : KG
