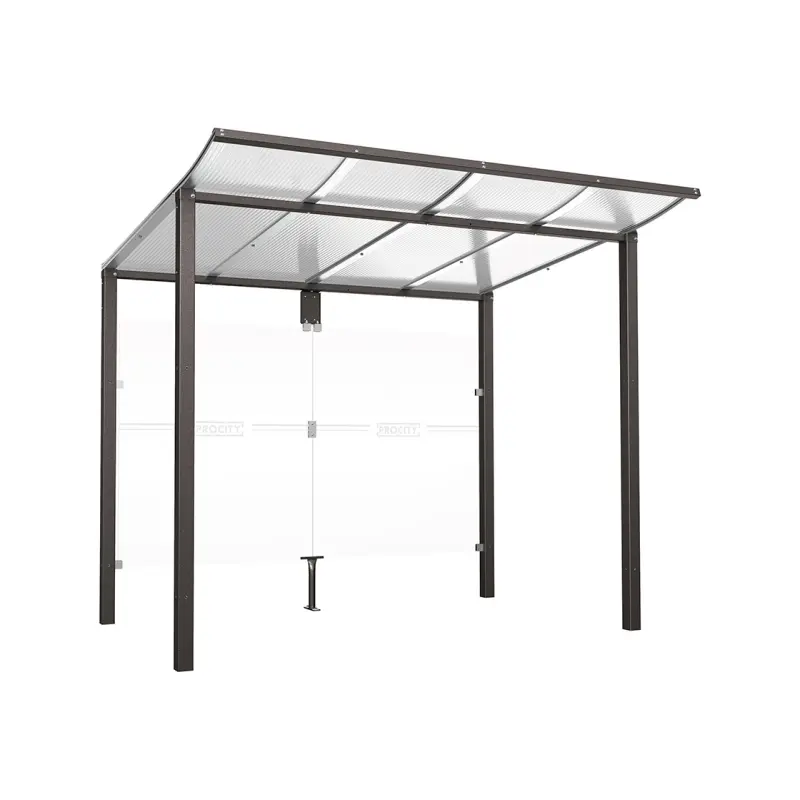

Modulo bus shelter

The Modulo bus shelter offers a good waiting capacity thanks to its depth close to 2 meters. Its look is simple and slender thanks to its slightly curved roof. Standardize your urban spaces for more harmony, thanks to the Modulo smoking shelter and the Modulo bicycle shelter also available.

  • Modulo bus shelter
  • Modulo bus shelter
  • Modulo bus shelter
  • Modulo bus shelter
  • Modulo bus shelter
  • Modulo bus shelter
  • Modulo bus shelter
  • Modulo bus shelter
  • Modulo bus shelter-1
  • Modulo bus shelter-2
  • Modulo bus shelter-3
  • Modulo bus shelter-4
  • Modulo bus shelter-5
  • Modulo bus shelter-6

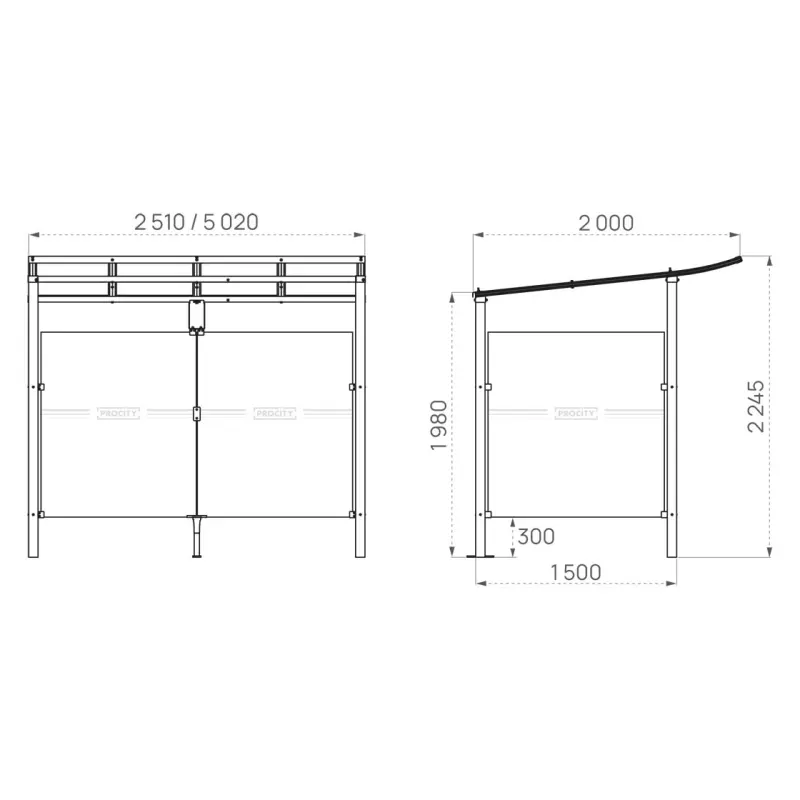

Two lengths
2500 or 5000 mm.

Total depth
1985 mm.

Square posts
70 x 70 mm steel tubes.

Under roof height
min. 1942 mm, max. 2100 mm.

Roof
anodised aluminum profiles with cross members in 40 x 40 mm steel tube and 10 mm anti-UV-treated cellular polycarbonate panels.

Rear and side cladding
5 mm safety glass.

Cladding attachments
pinch-grip system made from Zamak alloy with brushed finish.

Advertising space
“2000” anodised display case (1270 x 1160 mm display area).

Finish
galvanised and painted in our colours.

Installation
concreted directly into ground or on base plates.

Option timetable display case
750 x 550 mm (4 A4) x 30 mm deep, in anodised aluminium.

To download the data sheet, please log in to your dealer area. If you do not have an account, please contact us using our contact form
