Smoking or vaping shelters

Technical features

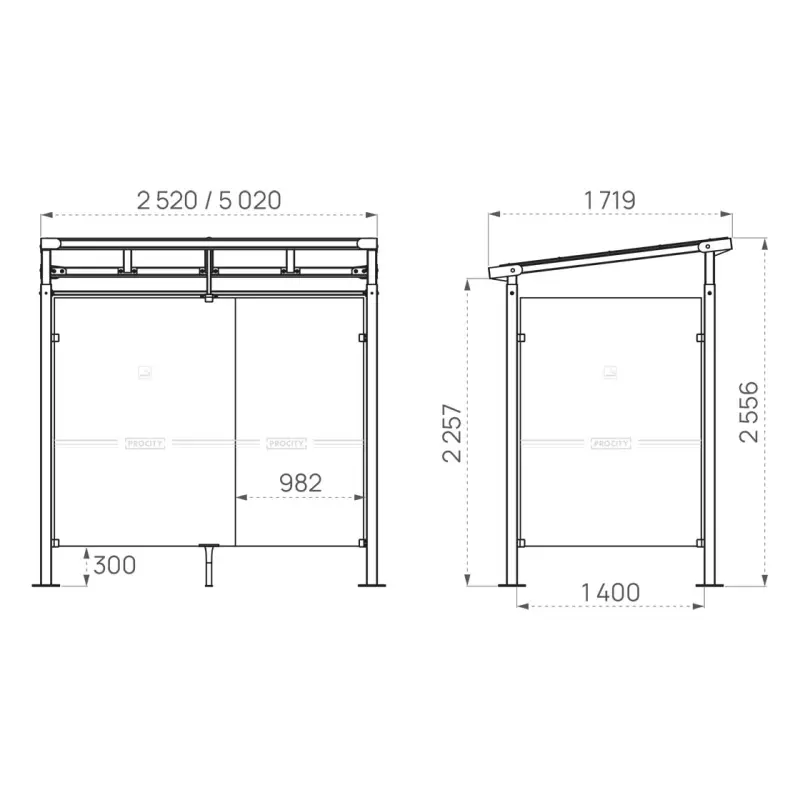

Two lengths: 2500 mm or 5000 mm (entrance width 1000 mm).
Depth: 1560 mm.
Height: 2600 mm.
Square posts: 80 x 80 mm steel tubes on base plates.
Roof frame: Two 60 x 60 mm steel-tube crossbars.
Roof: 10 mm anti-UV-treated translucent cellular polycarbonate panels.

Side and Rear panels: 8 mm Securit® safety glass with safety markings.
Panel attachment: Pinch-grip system for easy replacement in case of vandalism.
Finish: Galvanised and painted in our standard RAL colours.

Installation: On base plates.
Optional: Addittional front and rear wind protection panels available.


  • Download the specification sheet >

  • Assembly & installation instructions NOT714-V1 >

  • Assembly & installation instructions NOT618-V1 >

  • Assembly & installation instructions NOT718-V1 >

  • Assembly & installation instructions NOT722-V2 >

  • Assembly & installation instructions NOT724-V2 >

  • Assembly & installation instructions NOT474-V1 >

  • Assembly & installation instructions NOT715-V1 >

  • Assembly & installation instructions NOT619-V1 >

  • Assembly & installation instructions NOT719-V1 >

  • Assembly & installation instructions NOT724-V2 >

  • Assembly & installation instructions NOT723-V1 >

  • Assembly & installation instructions NOT474-V1 >

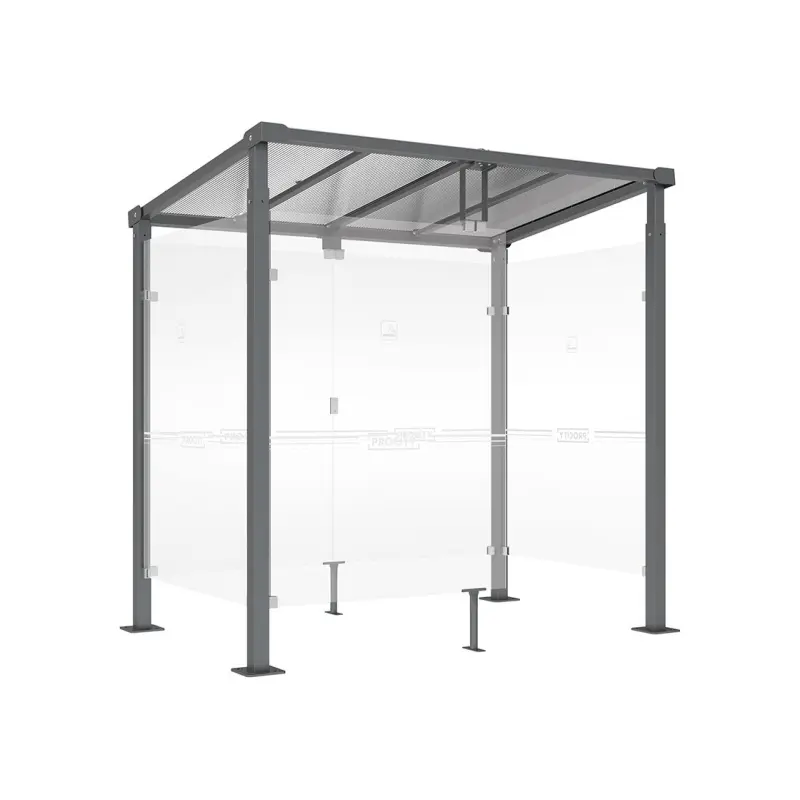

Milan Smoking and Vaping Shelter

A stylish smoking shelter that's even easier to spot when you add optional signage and wind protectors.

Procity Grey
RAL 9010
RAL 5010
RAL 3020
RAL 9005
RAL 7044
RAL 3004
RAL 6005
RAL 8017
Corten effect

Product code : 529405
Weight : KG
