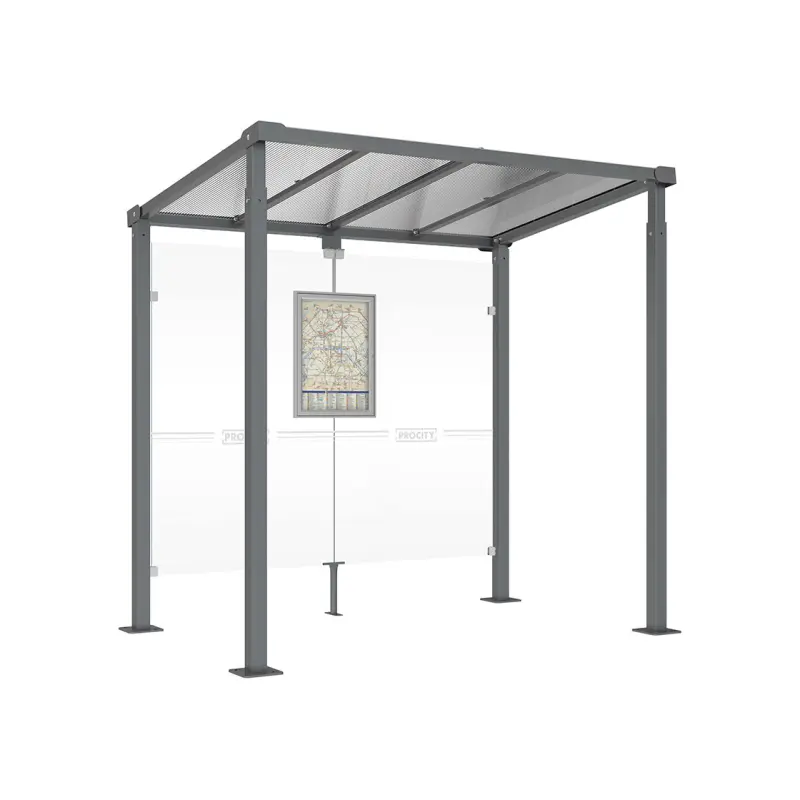

Milan bus shelter
A bus shelter with contemporary lines. It's confident look fits perfectly into any environment.
Two lengths: 2500 or 5000 mm.
Total depth: 1600 mm.
Square posts: 80 x 80 mm steel tube on base plates.
Height under the roof: min 2275, max 2480 mm.
Canopy : 10 mm anti-UV cellular polycarbonate.
Roof structure : 2 galvanised support arms 60 x 60 mm.
Back and side cladding: 8 mm Securit® toughened safety glass.
Cladding attachments: pinch-grip system made with Zamak alloy with brushed finish.
Waterproof timetable case: anodised aluminium, 30 mm in depth 4 x A4 (external dimensions 750 x 750 mm).
Advertising display: light box (display dimentions 1710 x 1160 mm) or "2000" poster display case (display dimentions 1710 x 1200 mm).
Finish : galvanised and painted in one or two of our RAL colours.
Installation: on base plates.
Optional: additional front and rear wind protection panels available.
