Bus shelters

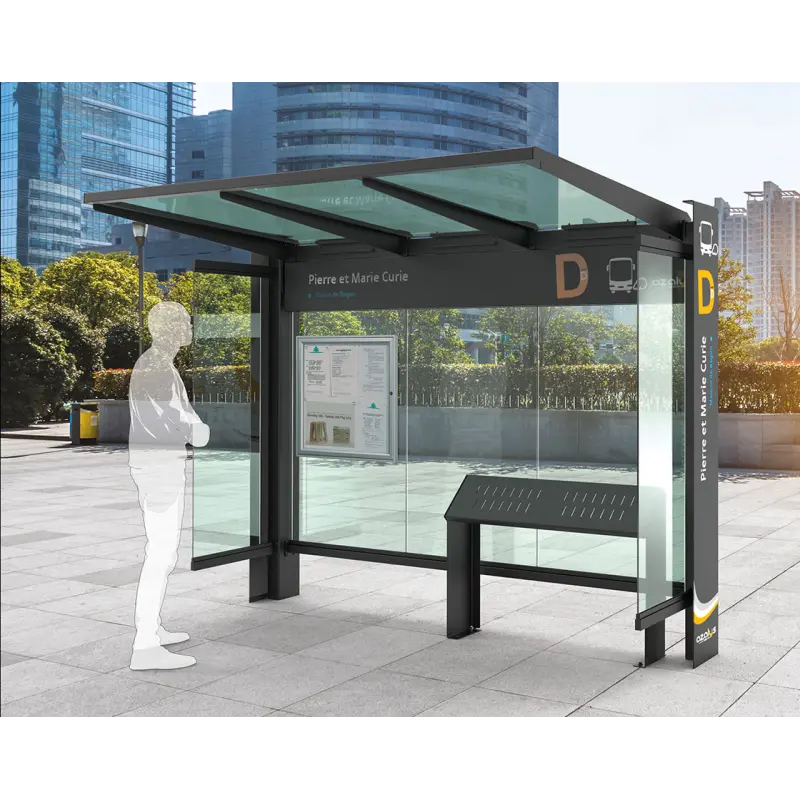

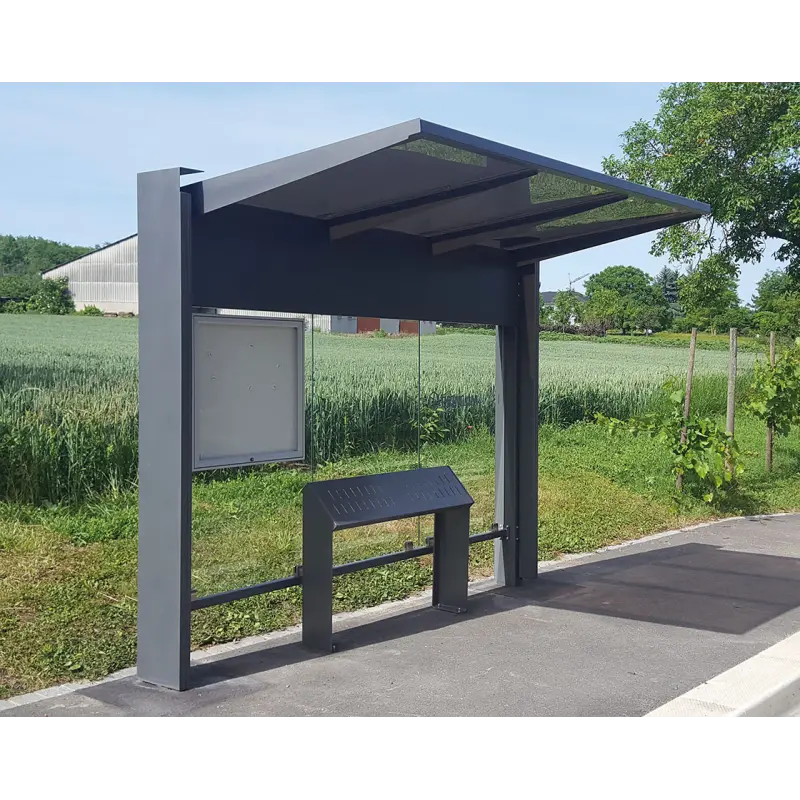

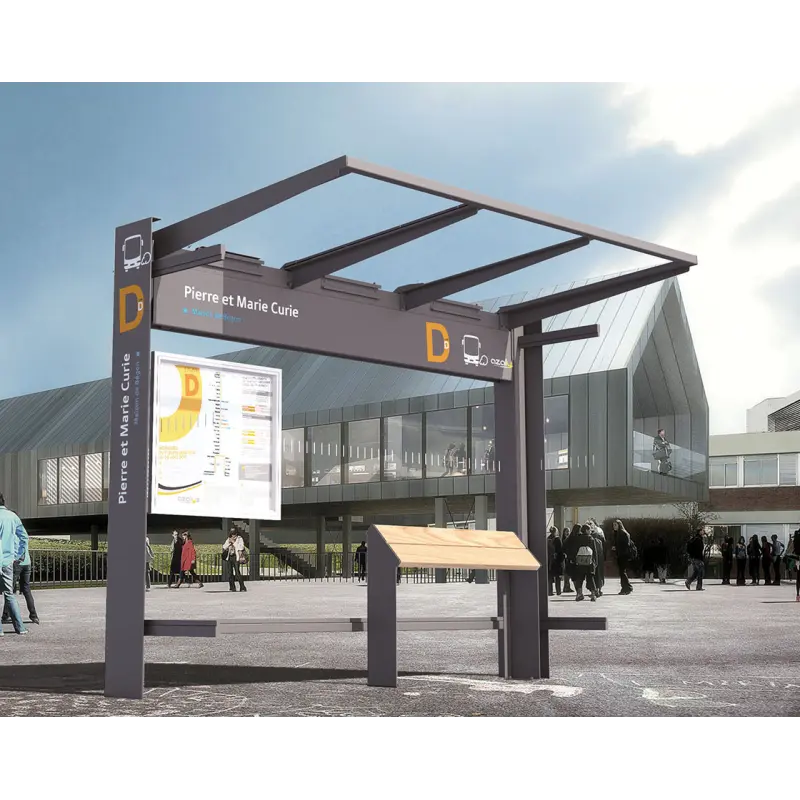

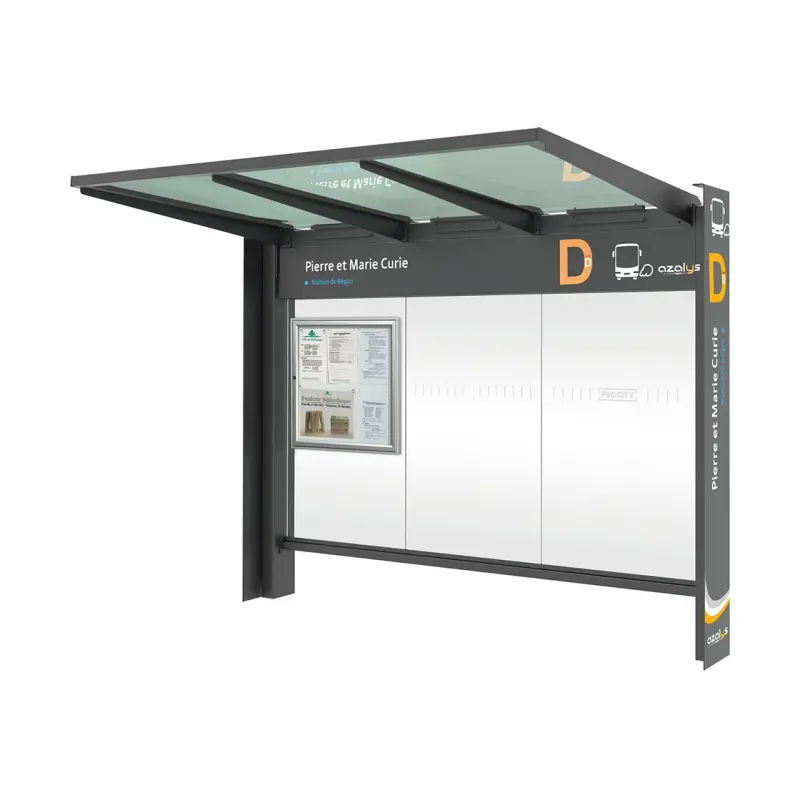

KUBE. bus shelter
Bus shelters from the Kube. collection are designed to coordinate with other products from the collection, with a streamlined design and available side signage.
Technical features
Length
3026 mm
Height
2446 mm
Total depth
1536 mm
Posts
180 x 100 x 5 mm galvanised steel tube
Horizontal beam
120 x 120 mm steel tube
Roof
8 mm thick protective polycarbonate, UV-treated
Cladding
8 mm thick safety glass
Timetable display case
750 x 750 mm (6 A4), 30 mm thick in anodised aluminium. Replaceable and reversible side-hinged door. 4 mm thick plexichocs glazing. Security lock with 2 keys. Elastomer seal. Galvanised sheet metal back, white lacquered. Fixings included
Information display case
double-sided "2000" display case, 75 mm thick aluminium frame. Integrated into the station, fixed to the post by mounting brackets. 4 mm safety glass rising door assisted by gas struts. Display dimensions h 1750 x 1200 mm. Optional lighting (consult us)
Signage
possibility of signage on three sides (screen printing not included)
Finish
painted steel on galvanised according to our colours
Available colours
RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
Installation: concreted directly into the ground, depth 600 mm. 600 x 600 mm square section concrete block, 750 mm high. Warning: do not install a bench or perch seat near the "2000" display case to avoid blocking its opening. All our models are delivered with rear cladding and timetable display case
Option
LED lighting, 220 V power supply ref. 306719
Technical files
To download the files, please log in to your Distributor area…
Description
Procity introduces the KUBE. bus shelter, a superior solution for urban and public transit areas. Designed with attention to detail and crafted using high-quality materials, the KUBE. bus shelter offers both durability and functionality, making it an ideal choice for municipalities and businesses looking to enhance their public transportation infrastructure.
Design and Dimensions
The KUBE. bus shelter boasts a sleek and modern design that seamlessly integrates with other urban furniture. Each unit measures 3000 mm in length, 1550 mm in depth, and 2450 mm in height, providing ample space for commuters to wait comfortably. The structure's clean lines and minimalist aesthetic contribute to a cohesive and visually appealing urban environment.Materials and Construction
Built to withstand the rigours of outdoor environments, the KUBE. bus shelter features a robust construction. The posts are made from 180 x 100 x 5 mm steel tubes, ensuring stability and resistance to wear and tear. The horizontal beams, crafted from 120 x 120 mm steel tubes, add to the structural integrity of the shelter. The roof is constructed from 8 mm polycarbonate with an anti-UV treatment, offering excellent protection from the elements while minimizing the risk of degradation over time. Additionally, the rear and side cladding are made from 8 mm safety glass, providing both durability and security.Functionality and Features
Designed with user convenience in mind, the KUBE. bus shelter includes practical features such as a timetable display case and a notice board. The timetable display case, measuring 750 x 750 mm and 30 mm deep, is made from anodised aluminium and can accommodate up to six A4 sheets, ensuring that essential travel information is easily accessible to commuters. The notice board offers a generous 1750 x 1200 mm display area for public notices and advertisements.Finish and Installation
The KUBE. bus shelter is galvanised and painted in Procity's signature colours, ensuring a durable and attractive finish that enhances the visual appeal of the surrounding area. Installation is straightforward, with the shelter designed to be concreted directly into the ground, providing a secure and stable foundation.Commitment to Quality and Innovation
At Procity, we pride ourselves on our commitment to quality and innovation in urban furniture design and manufacturing. Our KUBE. bus shelter exemplifies this commitment, offering a product that not only meets but exceeds the needs of modern urban environments. We continuously strive to deliver solutions that enhance public spaces, ensuring comfort, safety, and durability for all users. Explore the KUBE. bus shelter and other products in our extensive range of urban furniture, designed to meet the diverse needs of communities and businesses alike. With over 35 years of expertise, Procity is the trusted partner for innovative and reliable urban furniture solutions. ```
KUBE. collection
A pure style strikingly modern in its simplicity.
