An access control solution for roadways that are too narrow for a full-width height restrictor.
Technical features
Width
from 2500 to 6000 mm
Access height
from 1900 to 4000 mm
Structure
steel tubes 120 x 120 and 80 x 80 mm, gantry equipped with single or double tension cables. The 70 x 70 mm central rail allows the gantry to be widened to adapt the gantry to the installation site
Locking
by through pin. Pin locked by padlock supplied. Cylindrical base with rotation handles and locking stops for maintaining in the closed or open position at 90°
Finish
white lacquered steel over galvanised with red reflective strips (other colours, contact us)
Installation: on 500 x 500 mm base plates with ground hooks included in the pre-installation kit. The independent installation kit offers you the opportunity to prepare your concrete foundations in advance. Levelling: with locknuts placed under the base plates
Optional
installation kits; installation kit for sign ø 450 mm ref. 202321; height gauge rail ref. 202601; 11 mm triangle-key lock
Technical files
To download the files, please log in to your Distributor area…
Description

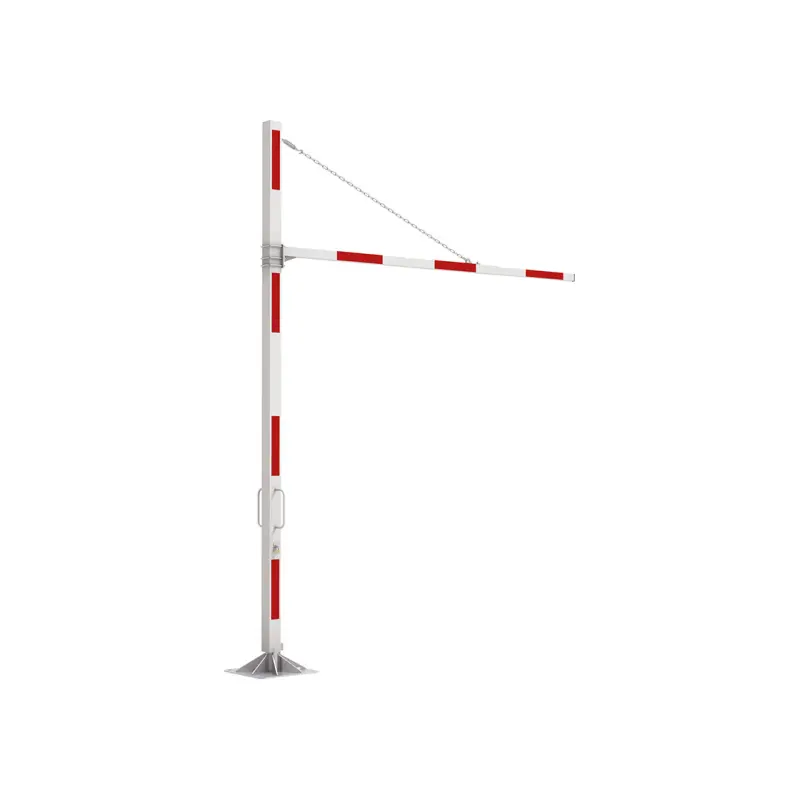

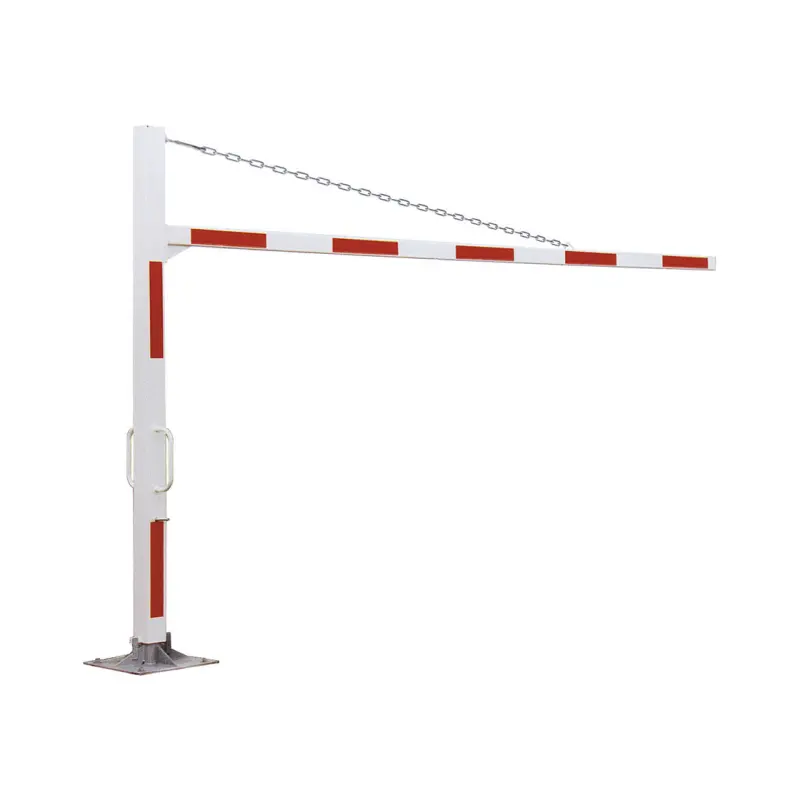

Half-Swivel Height Restrictor: Customisable and Secure Traffic Management
Procity presents the Half-Swivel Height Restrictor, a versatile solution designed to control vehicle access by height in various urban settings. Whether for parking structures or areas with height restrictions, this adjustable restrictor is built to ensure that only vehicles of the appropriate height gain entry.
Adjustable Access Control
The Half-Swivel Height Restrictor offers adjustable access height from 1.9 to 4 metres, accommodating a wide range of vehicle sizes. With the width extendable from 2.5 to 6 metres, this barrier is versatile enough for different road widths and site requirements.
Robust and Durable Structure
Constructed with robust steel tubes, measuring 120 x 120 mm and 80 x 80 mm, and equipped with either single or double tension cables, the restrictor promises enduring stability and resilience against wear.
Secure Locking Mechanism
Security is enhanced by a locking mechanism that utilises stainless steel pins, which can be secured with a padlock (included) or an optional 11 mm triangle-key lock, ensuring unauthorised access is effectively prevented.
High-Visibility and Aesthetic Finish
Finished in lacquered white over galvanised steel and complemented with red reflective strips, the height restrictor is highly visible even in low light conditions. For custom aesthetics, other colour options such as yellow and black are available upon request.
Easy Installation and Levelling
Installation is straightforward, with base plates that include stencil and ground hooks as part of the pre-installation kit. Levelling is made easy with locknuts placed under the base plates, ensuring the restrictor is properly aligned and secure.
Optional Height Gauge Rail
For enhanced functionality, an optional height gauge rail can be added to the assembly, providing drivers with a clear indication of the maximum clearance height, thus minimising the risk of vehicle damage and infrastructure impact.
Procity's Commitment
At Procity, we are dedicated to providing high-quality solutions that enhance urban safety and accessibility. The Half-Swivel Height Restrictor is a testament to this dedication, combining functionality with durability for efficient traffic management.
