Railings

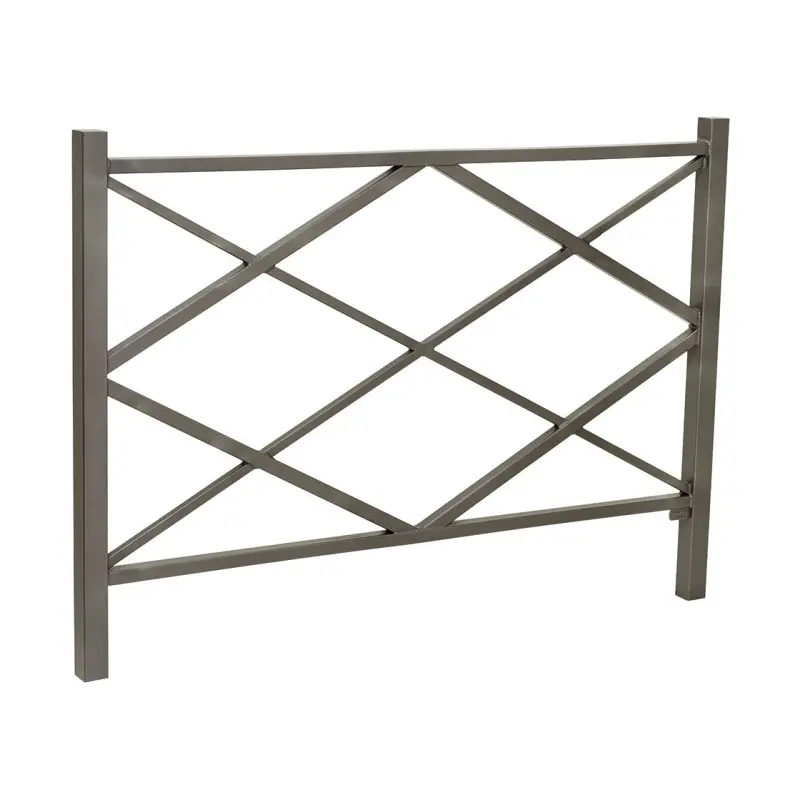

Diamond railing

A classic neutral look and robust design that is easily integrated in any urban environment.

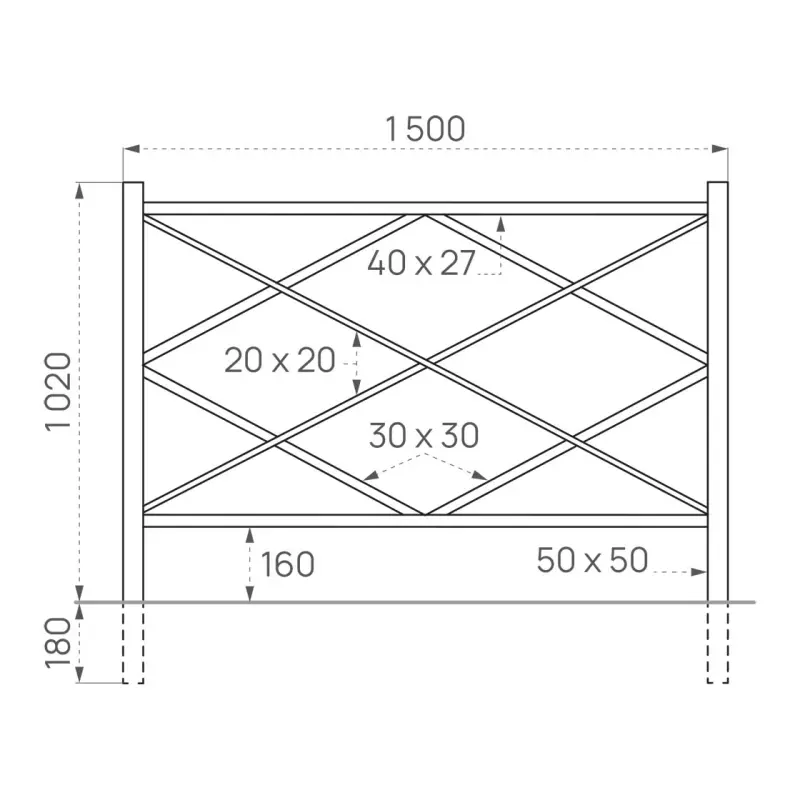

Technical features

Length
1500 mm
Total height
1200 mm
Height above ground
1020 mm
Posts
steel tubes 50 x 50 mm, 2 mm thick
Horizontal rails
40 x 27 mm
Finish
zinc primed and painted in our colours
Available colours
RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
Installation
concreted directly into the ground, depth 180 mm. Square concrete blocks 250 x 250 mm and 300 mm high
Options
installation on base plates - Serrubloc® removable kit for city railings consists of two sockets, one of which can be locked with a triangle key. Self-draining to be installed at the bottom of the sockets. Ref. 203403

Description

The Diamond Railing by Procity offers a practical and aesthetic solution for urban environments. As a part of our extensive street furniture product range, this railing is designed to meet the needs of both public institutions and private enterprises.


Product Specifications and Features


The Diamond Railing has a length of 1500 mm and stands 1020 mm above ground, perfectly suited for delineating pedestrian areas, parks, and other public spaces. Constructed from robust steel tubes measuring 50 x 50 mm, the structure ensures durability and strength. Each post is zinc primed and painted in our colour palette, providing both aesthetic appeal and protection against weather elements. The installation process of the Diamond Railing is straightforward. It is designed to be concreted directly into the ground, with the option of base plates for added stability. Furthermore, this railing can be made removable with our innovative Lockblock® socket system, offering flexibility for areas that require occasional removal of barriers.


Design and Aesthetic Integration


Our Diamond Railing boasts a classic neutral look that seamlessly integrates into any urban environment. This timeless design ensures that our railings do not only fulfil their primary function of safety and demarcation but also enhance the visual appeal of public spaces. The aesthetic versatility of the Diamond Railing allows it to complement various architectural styles and cityscapes.


Procity’s Commitment to Quality and Durability


At Procity, we take pride in our meticulous manufacturing processes and strict adherence to quality standards. Our products are crafted in our French facilities, located in the Loir-et-Cher and the Sarthe regions. These sites are equipped with cutting-edge technology, enabling us to produce high-performance urban furniture that stands the test of time. The materials used undergo rigorous treatment processes to ensure they meet the highest quality and durability criteria. From the initial design stage to the final product, our team of expert designers and engineers work diligently to create urban furniture that not only looks great but also performs reliably in all conditions.


Customisation and Flexibility


Understanding the unique needs of our clients, Procity offers customisation options for our Diamond Railing. Whether you require specific colour finishes or unique installation requirements, our in-house design team is ready to provide bespoke solutions that align with your project specifications. Our Lockblock® socket system exemplifies this flexibility, allowing for easy removal and reinstallation of the railings as needed. This feature is particularly beneficial for event spaces or areas that require adaptable urban infrastructure.


A Trusted Choice for Public Spaces


Procity has over 35 years of experience in the urban furniture industry, providing reliable and efficient solutions for public and private spaces. Our dedication to quality, combined with our extensive range of products, has established us as a leader in the European market for urban furniture and equipment. We work closely with our network of over 2,500 distributors across Europe, ensuring that our products are readily available and supported by professional advice and services. Our commitment to client satisfaction drives us to uphold the highest standards of service and product excellence. The Diamond Railing is more than just a functional barrier; it's a testament to Procity’s expertise in creating urban spaces that are both safe and welcoming. Discover how Procity’s Diamond Railing can contribute to your urban development projects by contacting one of our trusted distributors today.
