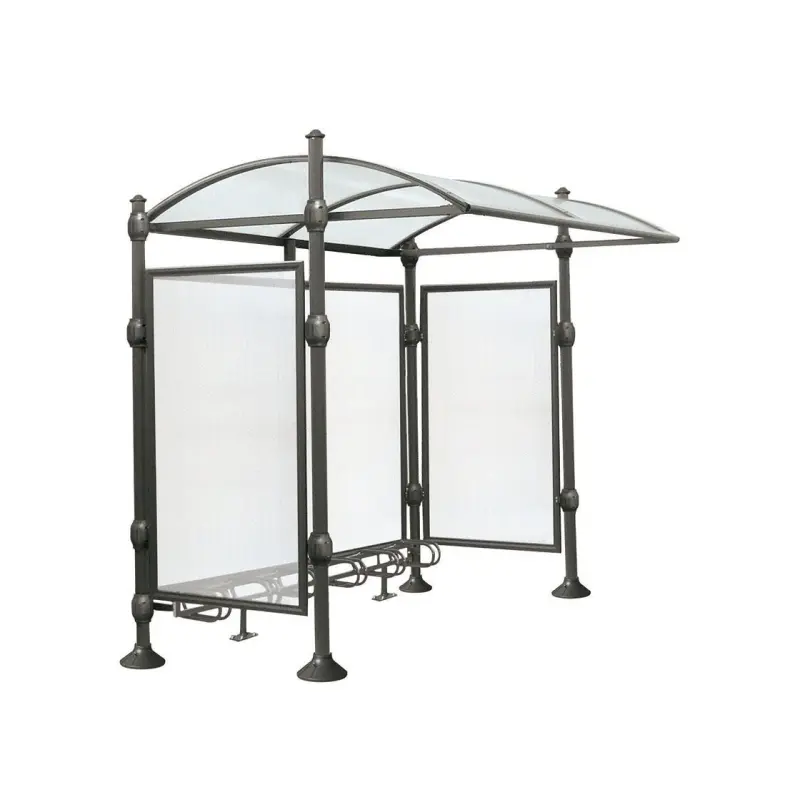

Dimensions: 2726 mm wide x 2350 mm high x 2253 mm deep.
Choose from five top caps: City, Agora, Sphere, Forum, or Stainless Steel.
Structure: Aluminium tube verticals Ø 76 mm.
Roof: 40 x 60 mm aluminium crossbeams, aluminium profile rain gutters, anti-UV- treated 6 mm cellular polycarbonate dome.
Finish: Painted in our standard RAL colours.
Extension: Extension module, 2613 mm wide.
Bicycle rack: 6 spaces, galvanised and painted in the same colour as the shelter.
Installation: Concreted directly into ground.
Rear and side cladding: Aluminium profile frame and anti-UV- treated 10 mm cellular polycarbonate.
Cladding attachment collars: required for attaching the side and rear panels.
Side-cladding panels supplied in pairs.
Rear cladding comprises of two panels with a central upright.
