Bus shelters

Technical features


Length of one unit: 3000 mm.

Total depth: 1500 mm.

Extension with intermediate module: 1000 mm.

Square posts: steel tubes 100 x 60 mm.

Under roof height: 2200 mm.

Roof: tinted UV-resistant 6 mm PMMA glazing.

Roof frame: 40 x 40 mm steel tubes with rain gutter.

Beams: 5 mm gauge steel sheet.

Rear and side cladding: 8 mm Securit® safety glass or perforated steel.

Cladding attachments: pinch-grip system made from Zamak alloy with brushed finish.

Bus stop sign: 160 mm high x 900 mm wide, galvanised steel lacquered in RAL 9006.

Timetable display case: 750 x 750 x 30 mm in anodised aluminium.

Advertising space: light box (1710 mm x 1160 mm display area) or “2000” display case (1710 mm x 1200 mm display area).

Finish: galvanised and painted in our colours.

Installation: concreted directly into ground.


See all products in the CONVIVIALE® collection
  • Download the specification sheet >

  • Assembly & installation instructions NOT800-V1 >

  • Assembly & installation instructions NOT804-V1 >

  • Assembly & installation instructions NOT803-V1 >

  • Assembly & installation instructions NOT801-V1 >

  • Assembly & installation instructions NOT802-V1 >

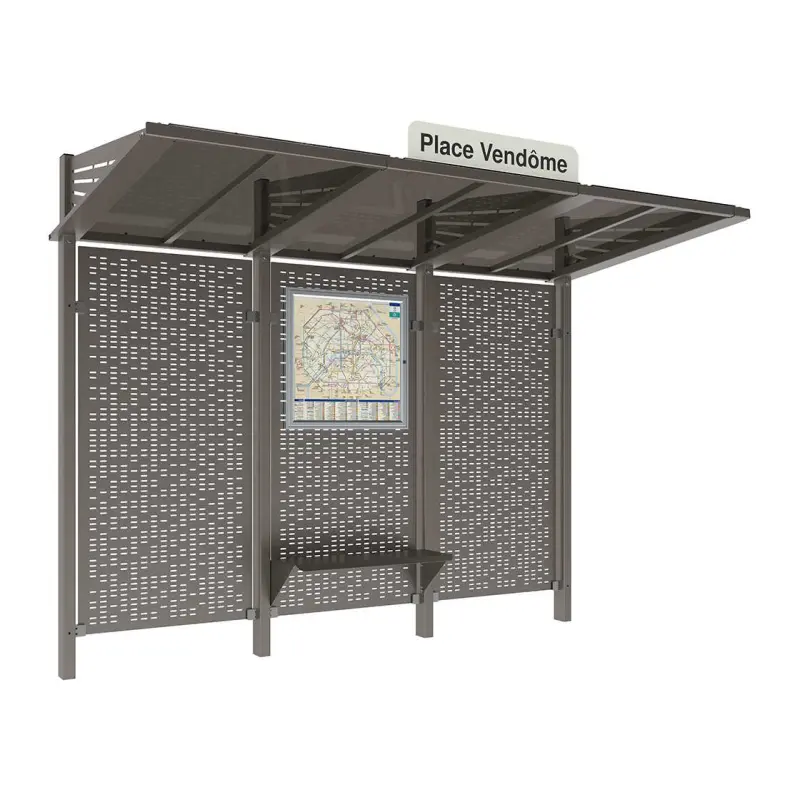

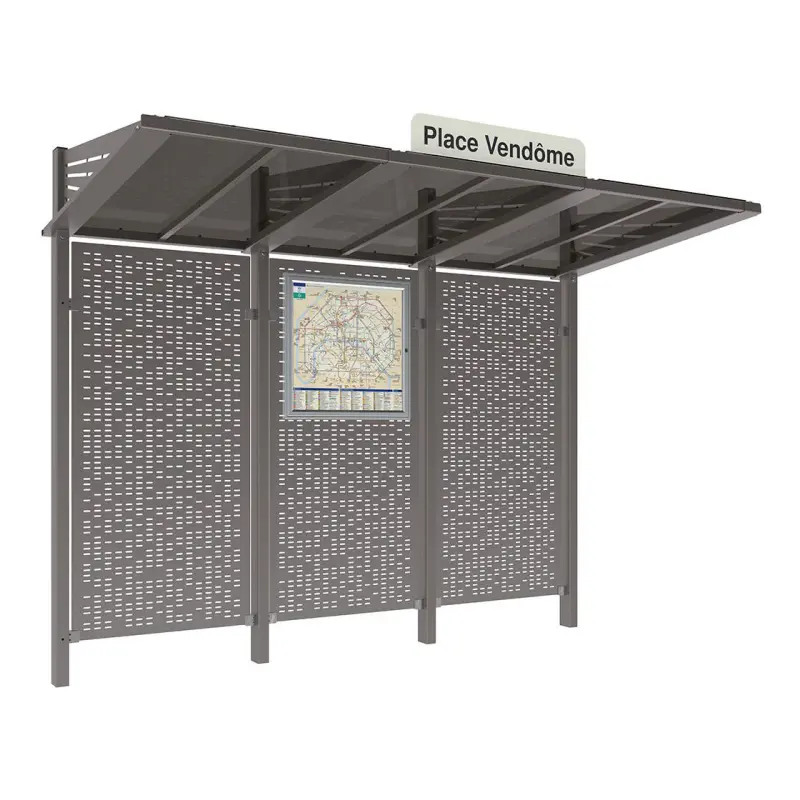

CONVIVIALE® bus shelters with steel cladding

With its elegant and highly modular design, the Conviviale® bus shelter is a perfect fit for any location and allows for compliance with accessibility of public streets.
Procity Grey
RAL 9010
RAL 5010
RAL 3020
RAL 9005
RAL 7044
RAL 3004
RAL 6005
RAL 8017
Corten effect

Product code : 529435
Weight : KG
