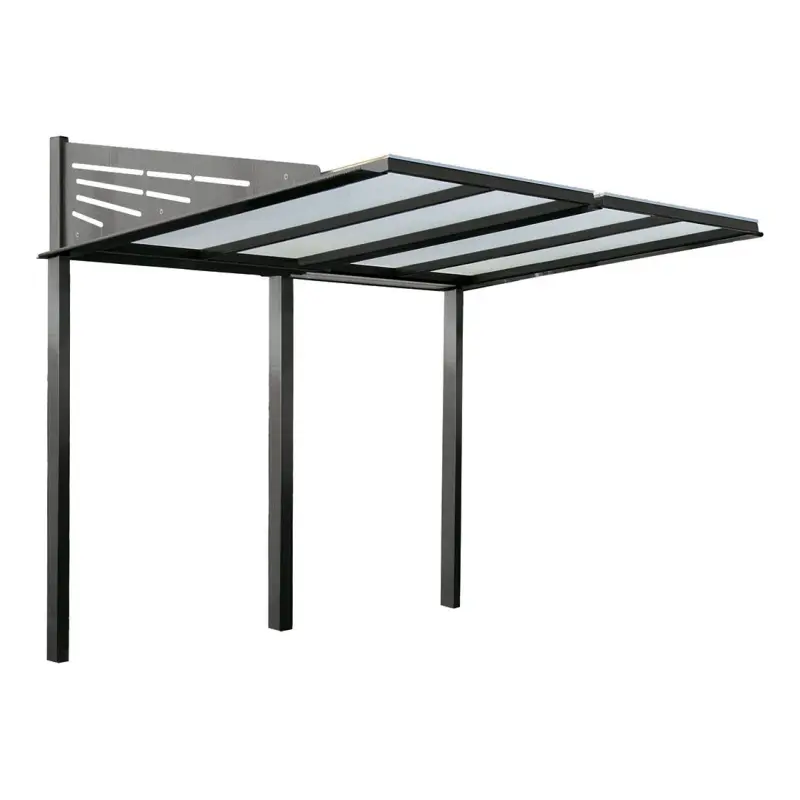

Conviviale® bicycle shelter
A shelter with a very modern aesthetic. Its cantilevered roof optimises the space available for parking bikes of all kinds.
Dimensions: 2700 mm wide x 2097 mm high x 2323 mm deep.
Structure: rear 100 x 60 mm steel verticals, front steel verticals 40 x 40 mm.
Roof: 50 x 30 mm steel-tube crossbars, anti-UV-treated 10 mm cellular polycarbonate panels.
Finish: galvanised and painted in our colours.
Extension: extension module, 1300 mm wide.
Installation: to be concreted directly into the ground with height adjustable legs on base plates for side claddings.
Rear and side cladding: aluminium frame and anti-UV-treated 10 mm cellular polycarbonate panels.
Bike racks and stands.
