Technical features
Two Lengths: 2500 mm or 5000 mm (entrance width 1000 mm).
Depth: 1560 mm.
Height: 2680 mm.
Square posts: 80 x 80 mm steel tubes on base plates.
Roof frame; Two 40 x 60 mm aluminium-tube crossbars and two aluminium profile rain gutters. Dome supports made from curved aluminium profiles.
Roof: Anti-UV-treated transculent cellular polycarbonate dome. 6 mm thick.
Front, side and rear panels: 8 mm safety glass with safety markings.
Panel attachment: Pinch-grip system for easy replacement in case of vandalism.
Finish: Galvanised and painted in our standard RAL colours.
UK compliant smoking version: As above without the wrap around front panel to ensure 50% of vertical surface is open.
Options: Ashtray bins available.
- Download the specification sheet >
- ASSEMBLY & INSTALLATION INSTRUCTIONS 129-V7 VOUTE CLASSIC SMOKING AND VAPING SHELTERS LG 2500 >
- ASSEMBLY & INSTALLATION INSTRUCTIONS 618-V1 POST LG 2500 >
- ASSEMBLY & INSTALLATION INSTRUCTIONS 461-V1 CROSSBARS AND RAIN GUTTERS LG 2500 >
- Assembly & installation instructions 465 - V1 >
- ASSEMBLY & INSTALLATION INSTRUCTIONS 468-V3 CLADDING LG 2500 >
- ASSEMBLY & INSTALLATION INSTRUCTIONS 474-V1 CLADDING CLAMPS LG 2500 >
- ASSEMBLY & INSTALLATION INSTRUCTIONS NOT131-V8 VOUTE CLASSIC SMOKING AND VAPING SHELTERS LG 5000 >
- ASSEMBLY & INSTALLATION INSTRUCTIONS NOT619-V1 POST LG 5000 >
- ASSEMBLY & INSTALLATION INSTRUCTIONS NOT463-V1 CROSSBARS AND RAIN GUTTERS LG 5000 >
- ASSEMBLY & INSTALLATION INSTRUCTIONS NOT466-V2 CANOPY LG 5000 >
- ASSEMBLY & INSTALLATION INSTRUCTIONS NOT468-V2 CLADDING LG 5000 >
- ASSEMBLY & INSTALLATION INSTRUCTIONS NOT474-V1 CLADDING CLAMPS LG 5000 >

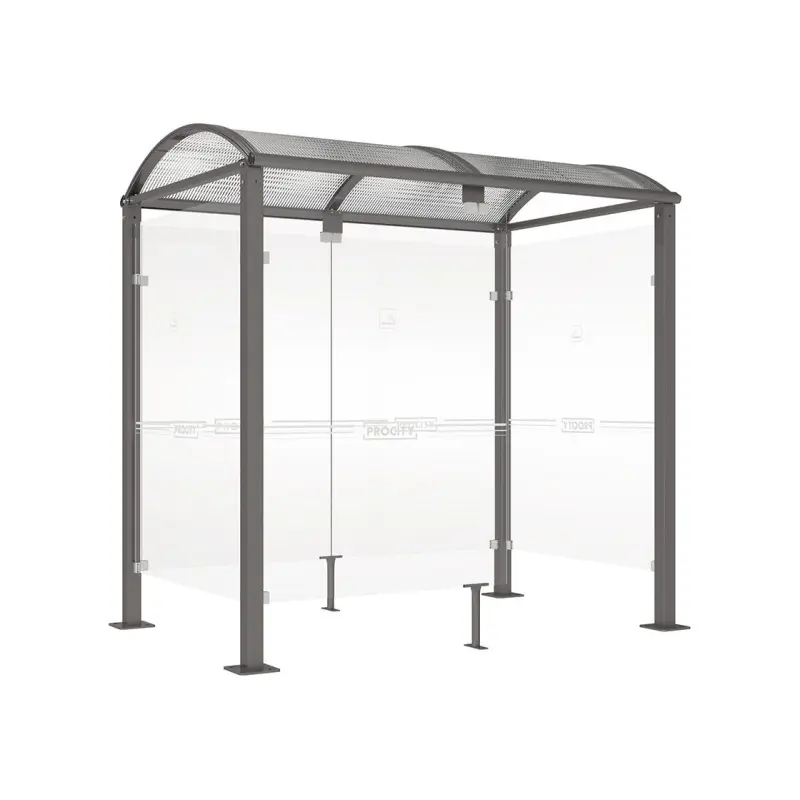

Voute Classic Smoking and Vaping Shelter
A smoking shelter that creates a spacious area where smokers are protected from the elements.
