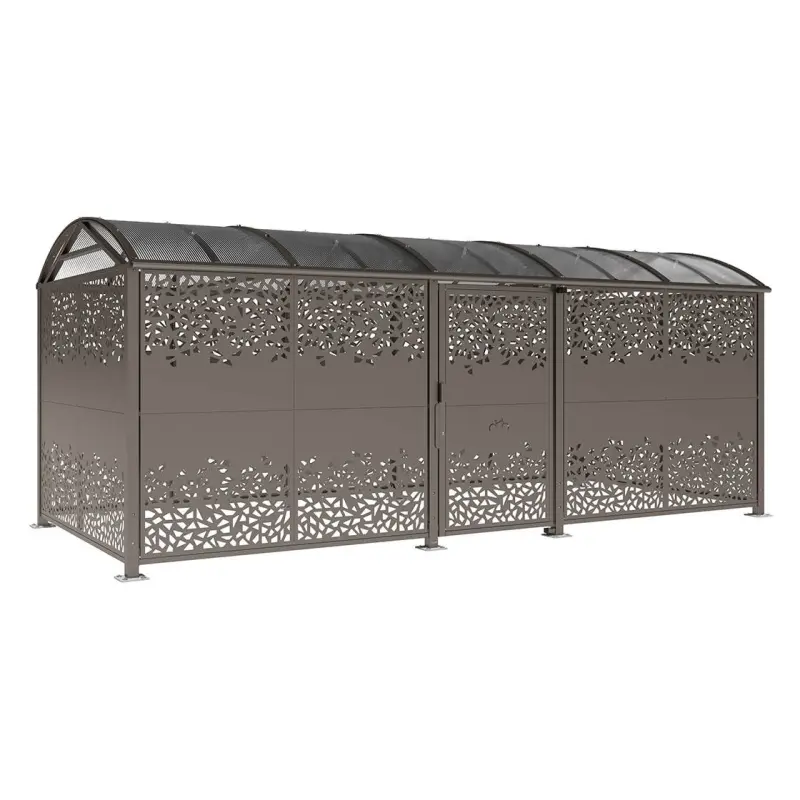

Barrel roof secure "XL" shelter for bikes and motor bikes with cut steel sheet
This spacious shelter ensures optimal protection and comfortable use. Its generous capacity shelters bicycles and motorcycles from bad weather and vandalism, whether in public spaces or private parking areas.
You can choose from various colors among the available RAL tint options. The enclosure can be secured with either a mechanical code lock or a European key lock.
Dimensions
6225 mm wide x 2646 mm high x 2834 mm deep.
Parking capacity
up to 12 bicycles for a module (depending on the bicycle stand or bicycle rack chosen).
Structure
galvanised steel tubes 80 x 80 mm.
Roof
steel cross-members 60 x 40 mm and two aluminium rainwater gutters, painted in our colours, 10 mm anti-UV treated cellular polycarbonate barrel roof. Anti-intrusion roof reinforcements.
Double door
upper part in cut steel sheet, lower part in 1.5 mm thick sheet metal. Unlocking by European lock/key or mechanical digicode. Opening the doors from the interior without keys. Doors held in the open and closed position by drop bar and shoes.
Finish
painted in our colours.
Installation
on galvanised base plates, height adjustable feet, expansion bolts included.
Options
LED lighting, connected lock, bike racks and stands.
Dimensions
6225 mm wide x 2646 mm high x 2834 mm deep.
Parking capacity
up to 12 bicycles for a module (depending on the bicycle stand or bicycle rack chosen).
Structure
galvanised steel tubes 80 x 80 mm.
Roof
steel cross-members 60 x 40 mm and two aluminium rainwater gutters, painted in our colours, 10 mm anti-UV treated cellular polycarbonate barrel roof. Anti-intrusion roof reinforcements.
Double door
upper part in cut steel sheet, lower part in 1.5 mm thick sheet metal. Unlocking by European lock/key or mechanical digicode. Opening the doors from the interior without keys. Doors held in the open and closed position by drop bar and shoes.
Finish
painted in our colours.
Installation
on galvanised base plates, height adjustable feet, expansion bolts included.
Options
LED lighting, connected lock, bike racks and stands.
