Secure shelters

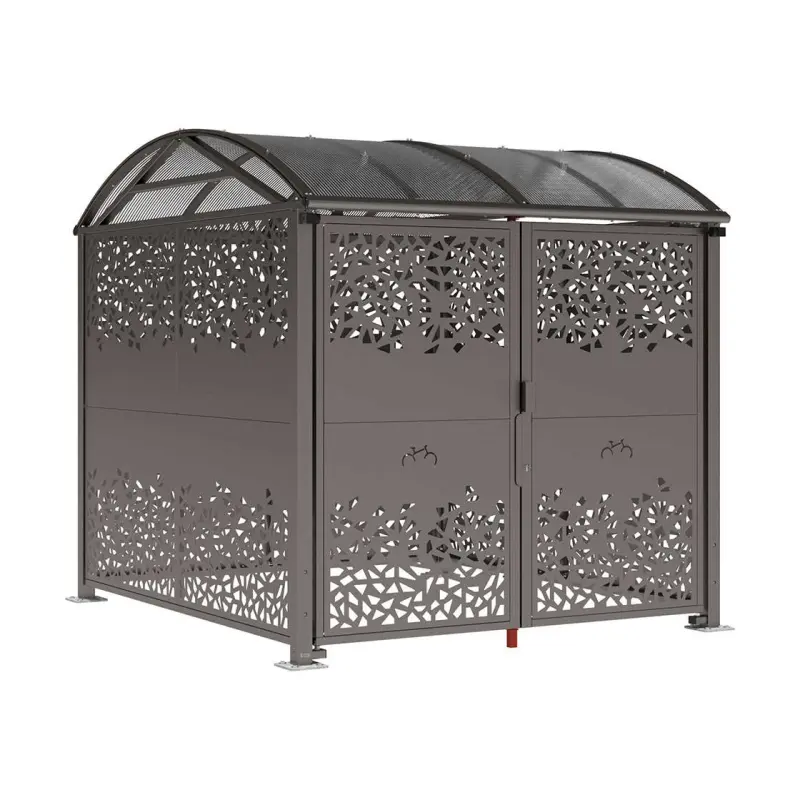

Voute roof secure "L" shelter for bikes and motor bikes with cut steel sheet
Our new secure bike shelter made of cut sheet metal offers an effective protection solution to reduce the risk of bike theft when parked in public spaces or private parking areas. The initial capacity of this outdoor shelter allows for parking up to 6 bicycles or 2 motorcycles. Modular in design, this enclosed shelter can be expanded as desired by adding additional extensions.
Technical features
Length
2520 mm
Dimensions
height 2646 to 2796 mm x depth 3023 mm
Parking capacity
up to 6 bicycles for a module of 2520 mm (depending on the bicycle stand or bicycle rack chosen)
Structure
galvanised steel posts 80 x 80 mm
Roof
steel cross-members 60 x 40 mm and aluminium gutters, 10 mm anti-UV treated cellular polycarbonate barrel roof. Anti-intrusion roof reinforcements
Cladding
1.2 mm thick decorative sheet metal
Double door
upper part in decorative sheet metal, lower part in 1.5 mm thick sheet metal. Unlocking by European lock/key or mechanical digicode. Opening the doors from the interior without keys. Doors held in the open and closed position by a cylinder
Extension
extension module, 2440 mm length
Finish
painted on galvanised steel in our colours
Available colours
RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
Installation
on galvanised base plates 200 x 200 mm, height adjustable feet (max 150 mm), expansion bolts included. Square concrete blocks 400 x 400 mm, 400 mm high and 250 x 250 mm, 400 mm high
Options
connected lock ref. 529089; LED lighting ref. 509041; bike racks and stands
