Format: single sided or raising depending on dimensions.
Display area: from 8 to 30 A4.
Profile depth: 75 mm
Glazing: vandal-resistant 4 mm Plexichoc® or 4 mm tempered safety glass.
Opening method: reversible side opening, dual-door or raising door.
Raising doors: suspended on gas struts for easy opening and support.
Locking: tamperproof safety lock with supplied 2 keys, two locks on H 1350 mm and raising door models.
Waterproofing: elastomer seal.
Back plate finish: galvanised steel back in a white lacquered finish for use with magnets. External back finished in RAL 7032 unless otherwise specified.
Frame finish: silver anodised aluminium or painted in our Vitincom® colour offering.
Installation: post mounting.
Supplied with Procity® magnets (1 per A4).
Quatro post kit: 2 oblong 80 x 125 mm dove-tailed posts either silver anodised or painted with black lacquered steel top caps. Post kit contains 4 cast aluminium dove-tailed clamps for easy installation with no drilling required. Notice board adjustable in height.
Installation: concrete directly in the ground or on base plates.*
Quatro plus post: an oblong 80 x 125 mm dove-tailed posts either silver anodised or painted, delivered with contains 4 cast aluminium dove-tailed clamps.
Installation: concrete directly in the ground or on base plates. *
*If the product is to be likely to be exposed to strong wings, we strongly recommend post kits to be concreted directly in the ground.
Optional header boards:
Frame: 75mm aluminium profile, right angle corners matching the board.
Signage surface: galvanised steel lacquered in white.
Height: 220 mm.
Installation: supplied with 2 cast aluminium dove-tailed clamps for easy installation with no drilling required.
LED kit (supplied for self-assembly) *
*LED ribbons and transformers are not factory fitted and require installation by a qualified electrician to comply with applicable safety regulations.
- Download the specification sheet >
- Assembly & installation instructions 092-V6 >
- Assembly & installation instructions 095-V6 >
- Assembly & installation instructions 090-V9 >

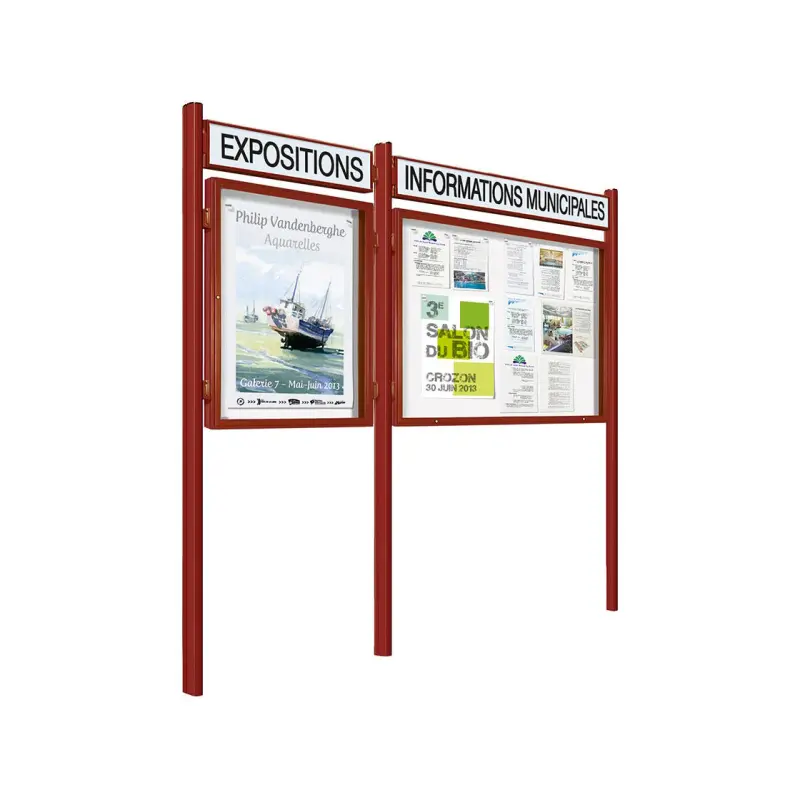

"1000" outdoor notice board on quatro posts
A strong and timeless notice board with a wide range of sizes mounted on quatro posts allowing multiple combinations.
