Outdoor notice boards & poster display cases

Technical features


HINGE FREE: Wear resistant, warp proof integrated hinge.

LOCKABLE: Exclusive tamper-proof safety lock with hidden latch.

FULL DISPLAY: 100 % of the display surface visible (lock mounted in the frame not the glazing).

STRENGTH: Robust profile and availble in 4mm anti-vandal Plexichoc™ or safety glass.

PRACTICAL: Doors easily replaceable in case of major vandalism.

WATERPROOF: Elastomer seal and anti-condensation vents.



NOTICE BOARD

Format: single sided, raising or dual-door depending on dimensions.

Display area: from 8 to 30 A4.

Profile depth: 75 mm

Glazing: vandal-resistant 4 mm Plexichoc® or 4 mm tempered safety glass.

Opening method: side opening (door is reversible), dual-door or raising door.

Raising doors: suspended on gas struts for easy opening and support.

Locking: tamperproof safety lock with supplied 2 keys, two locks on H 1350 mm and raising door models.

Waterproofing: elastomer seal.

Back plate finish: galvanised steel back in a white lacquered finish for use with magnets. External back finished in RAL 7032 unless otherwise specified.

Frame finish: silver anodised aluminium or painted in our Vitincom® colour offering.

Installation: wall or post mounting (optional).

Supplied with Vitincom® magnets (1 per A4).



Optional post kits:

Round ø 76 mm posts: 2 round ø 76 mm dove-tailed posts either silver anodised or painted with black lacquered steel top caps. Post kit contains 4 cast aluminium dove-tailed clamps for easy installation with no drilling required. Notice board adjustable in height.

Installation: concrete directly in the ground

Quatro post kit: 2 oblong 80 x 125 mm dove-tailed posts either silver anodised or painted with black lacquered steel top caps. Post kit contains 4 cast aluminium dove-tailed clamps for easy installation with no drilling required. Notice board adjustable in height.

Installation: concrete directly in the ground or on base plates. *

Quatro plus post: an oblong 80 x 125 mm dove-tailed posts either silver anodised or painted, delivered with contains 4 cast aluminium dove-tailed clamps.

Installation: concrete directly in the ground or on base plates. *

*If the product is to be likely to be exposed to strong wings, we strongly recommend post kits to be concreted directly in the ground.

Optional header boards:

Frame: 75mm aluminium profile, right angle corners matching the board.
Signage surface: galvanised steel lacquered in white.

Height: 220 mm.
Installation: supplied with 2 cast aluminium dove-tailed clamps for easy installation with no drilling required.

Other options:

LED kit (supplied for self-assembly) *

Additional magnets.

*LED ribbons and transformers are not factory fitted and require installation by a qualified electrician to comply with applicable safety regulations.




  • Download the specification sheet >

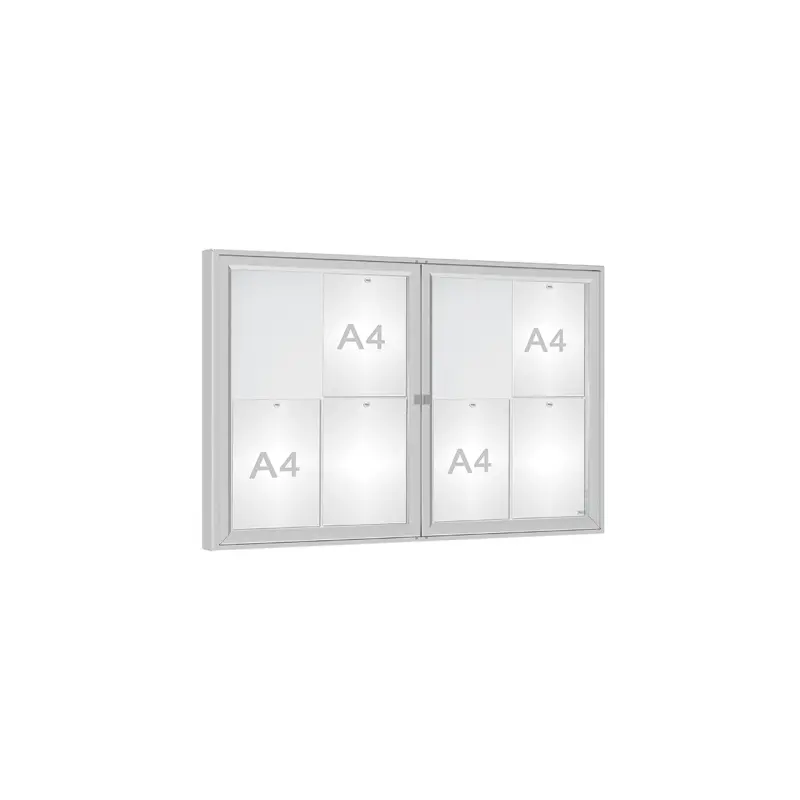

"1000" 75 mm outdoor notice boards

A strong and timeless notice board with a wide range of sizes and accessories allowing all combinations.

RAL 5010
RAL 9005
RAL 3004
RAL 6005
RAL 8017
Anodised

Product code : 507084
Weight : KG
